Hot sale Original STPS3170UF Rectifiers Single DIODE SCHOTTKY 170V 3A SMBFLAT Diode Surface Mount DO-221AA SMB Flat Leads

Manufacturer Product Number
STPS3170UF
Description

Original STPS3170UF Rectifiers Single DIODE SCHOTTKY 170V 3A SMBFLAT Diode Surface Mount DO-221AA SMB Flat Leads

Package Condition
Tape & Reel (TR)Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

​

DESCRIPTION
150V Power Schottky rectifier are suited for switch Mode Power Supplies on up to 24V rails and high frequency converters.
Packaged in SMB and Axial, this device is intended for use in consumer & computer applications like TV, STB, PC and DVD where low drop forward voltage in required to reduce power dissipation.
FEATURES AND BENEFITS
■ NEGLIGIBLE SWITCHING LOSSES
■ LOW FORWARD VOLTAGE DROP FOR HIGHER EFFICIENCY AND EXTENDED BATTERY LIFE
■ LOW THERMAL RESISTANCE

Product Description

Type# Description
ANSC PART# ANSC - STPS3170UF
Category Discrete Semiconductor Products
Diodes
Rectifiers
Single Diodes
Mfr Original
Series ECOPACK®
Packaging Tape & Reel (TR)
Cut Tape (CT)
Part Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 170 V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 820 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 4 µA @ 170 V
Capacitance @ Vr, F -
Mounting Type Surface Mount
Package / Case DO-221AA, SMB Flat Leads
Supplier Device Package SMBflat
Operating Temperature - Junction -40°C ~ 175°C
Base Product Number STPS3170

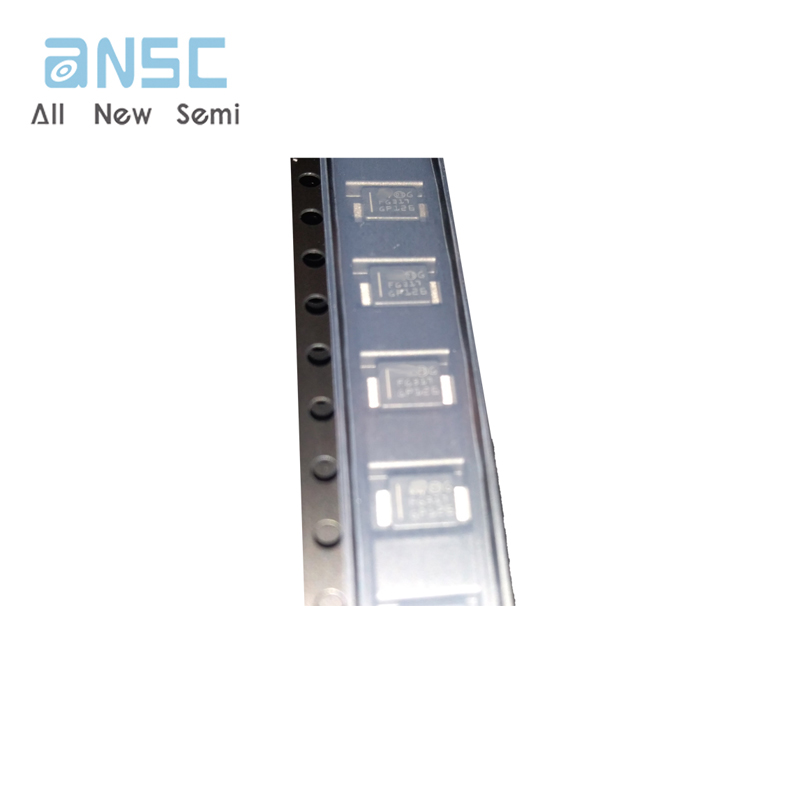

Product Photos

STPS3170UF

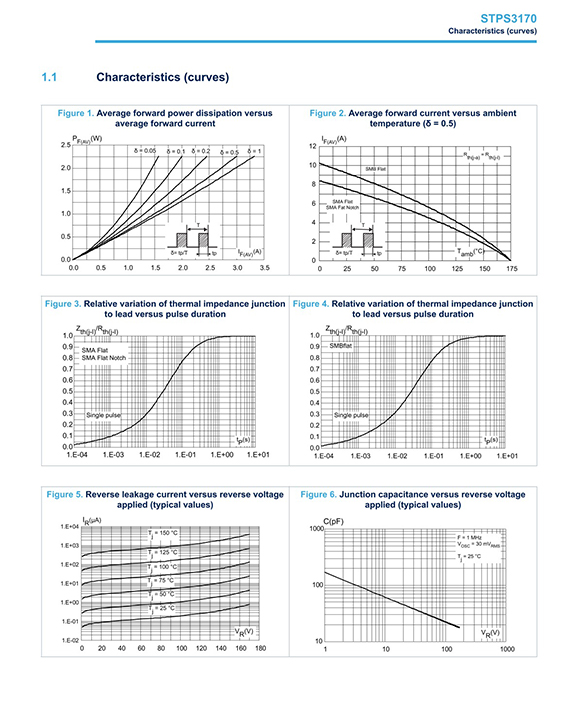

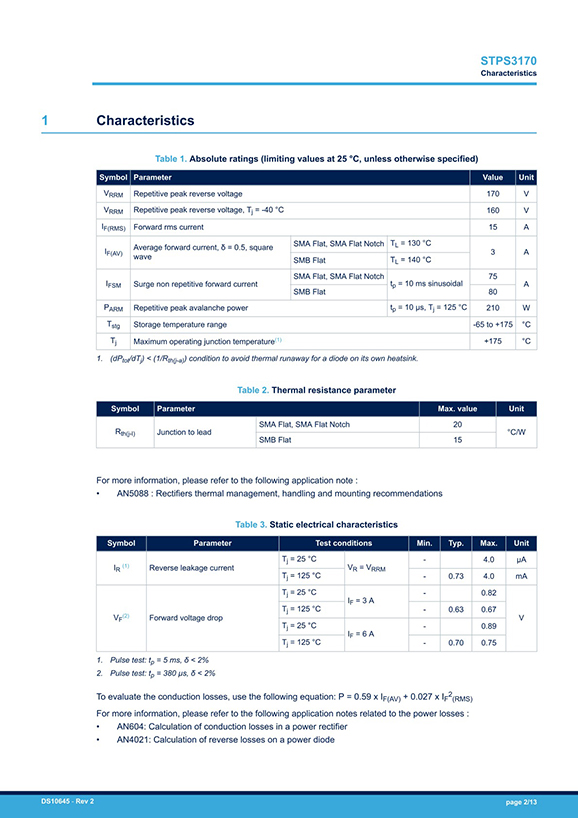

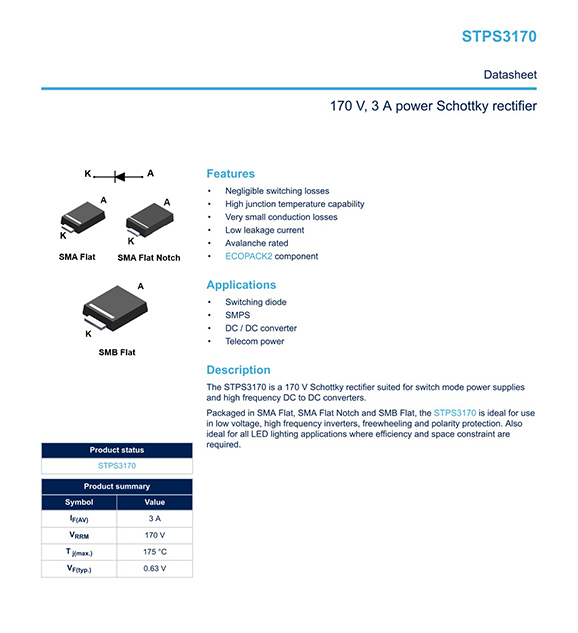

Product datasheet

For more information, please download
