Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot sale Original CUS08F30,H3F Rectifiers Single Diodes Schottky 30 V 800mA Surface Mount USC SOD323
Manufacturer Product Number
CUS08F30,H3F
Description
CUS08F30,H3F Diode 30 V 800mA Surface Mount USC
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Brief Description: The CUS08F30, H3F is a Schottky diode from Toshiba Semiconductor and Storage, designed for surface mount applications. It features a fast recovery time and is suitable for use in a variety of applications, including power supplies, converters, and inverters. Features: Schottky diode with a single element configuration Forward current: 800mA Reverse voltage: 30V (DC) Maximum junction temperature: 125°C Operating temperature range: -55°C to 125°C Fast recovery time: <= 500ns at > 200mA (Io) Surface mount package: SC-76, SOD-323 Tape and reel packaging RoHS compliant Application Grade: The CUS08F30, H3F is designed for use in high-reliability applications, including: Power supplies Converters Inverters Automotive electronics Industrial control systems Applications: Power supply rectification Converter and inverter applications Automotive electronics, such as ignition systems and power distribution Industrial control systems, such as motor control and power monitoring Medical devices, such as defibrillators and pacemakers Overall, the CUS08F30, H3F is a reliable and high-performance Schottky diode suitable for a wide range of applications requiring fast recovery times and high current handling capabilities. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - CUS08F30,H3F |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | / |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 800mA |
| Voltage - Forward (Vf) (Max) @ If | 450 mV @ 800 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 50 µA @ 30 V |
| Capacitance @ Vr, F | 170pF @ 0V, 1MHz |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | USC |
| Operating Temperature - Junction | 125°C (Max) |
| Base Product Number | CUS08F30 |

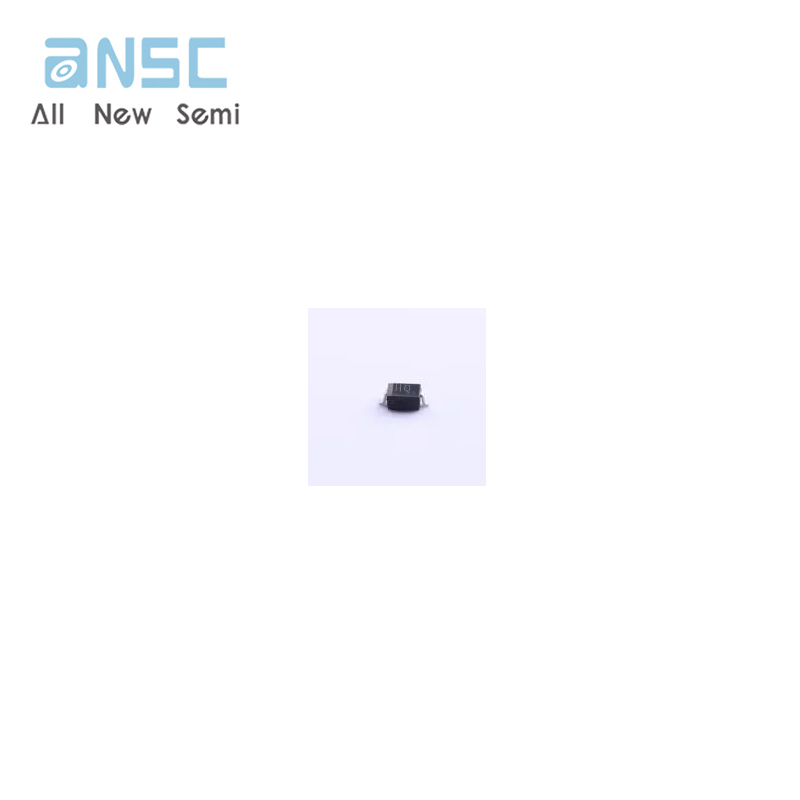

Actual image of the product

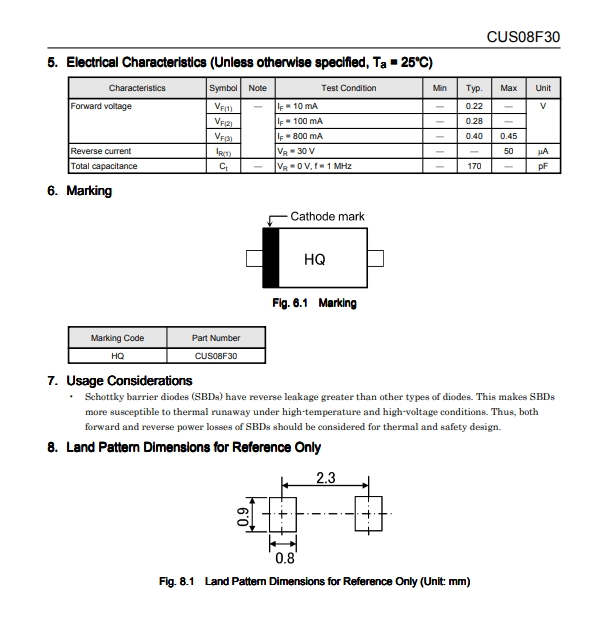

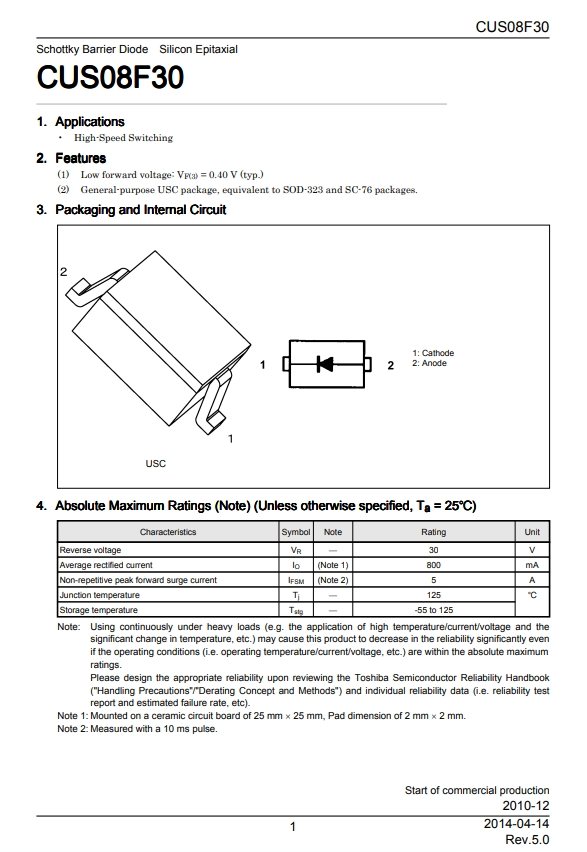

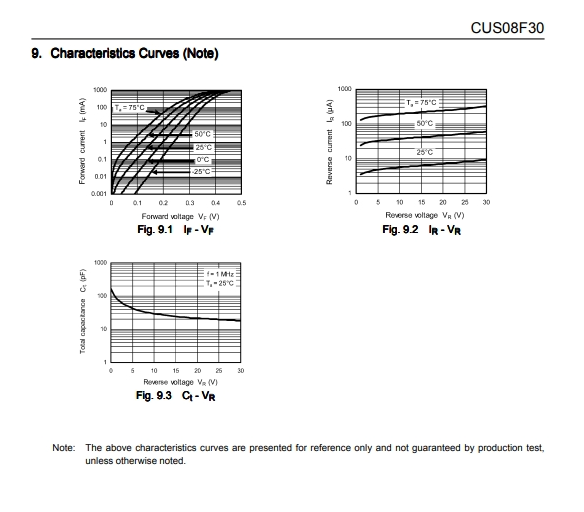

Product datasheet
For more information, please download
