Hot sale original ES2D-13-F DIODE STANDARD 200V 2A SMB Diode 200 V 2A Surface Mount SMB
Manufacturer Product Number
ES2D-13-F
Description
ES2D-13-F Diode 200V 2A Surface Mount SMB
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
• Glass Passivated Die Construction
• Super-Fast Recovery Time For High Efficiency
• Surge Overload Rating to 50A Peak
• Ideally Suited for Automated Assembly
• Lead Free Finish/RoHS Compliant (Note 1)
• Green Molding Compound (No Halogen and Antimony)
(Note 2)
Product Description
| TYPE# | DESCRIPTION |
| ANSC PART# | ANSC - ES2D-13-F |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | / |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Current - Average Rectified (Io) | 2A |
| Voltage - Forward (Vf) (Max) @ If | 920 mV @ 2 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 25 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 200 V |
| Capacitance @ Vr, F | 25pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | ES2D |

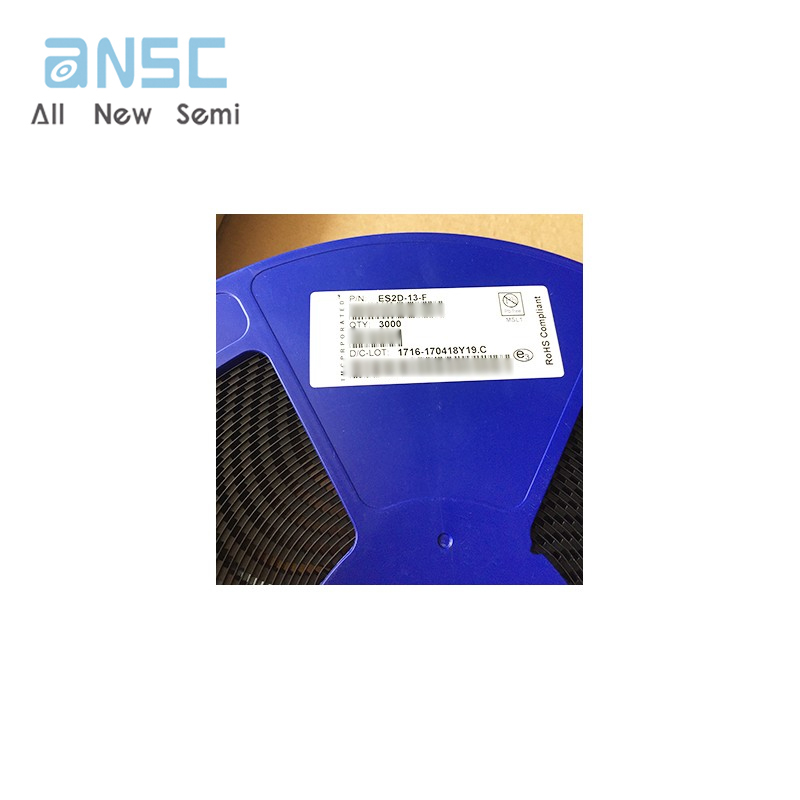

Actual image of the product

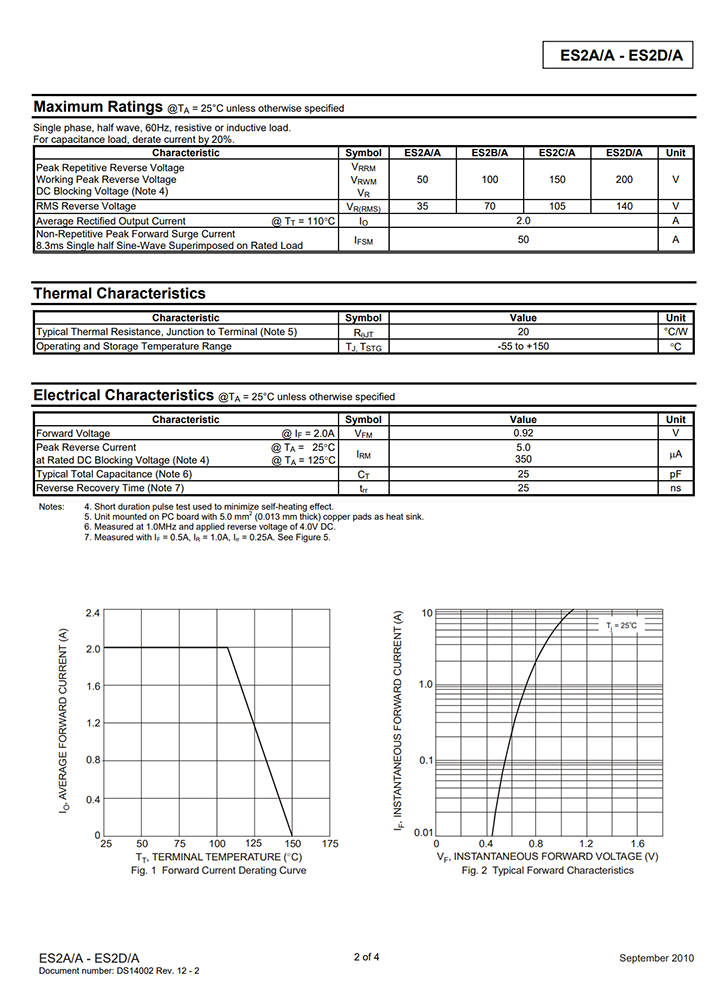

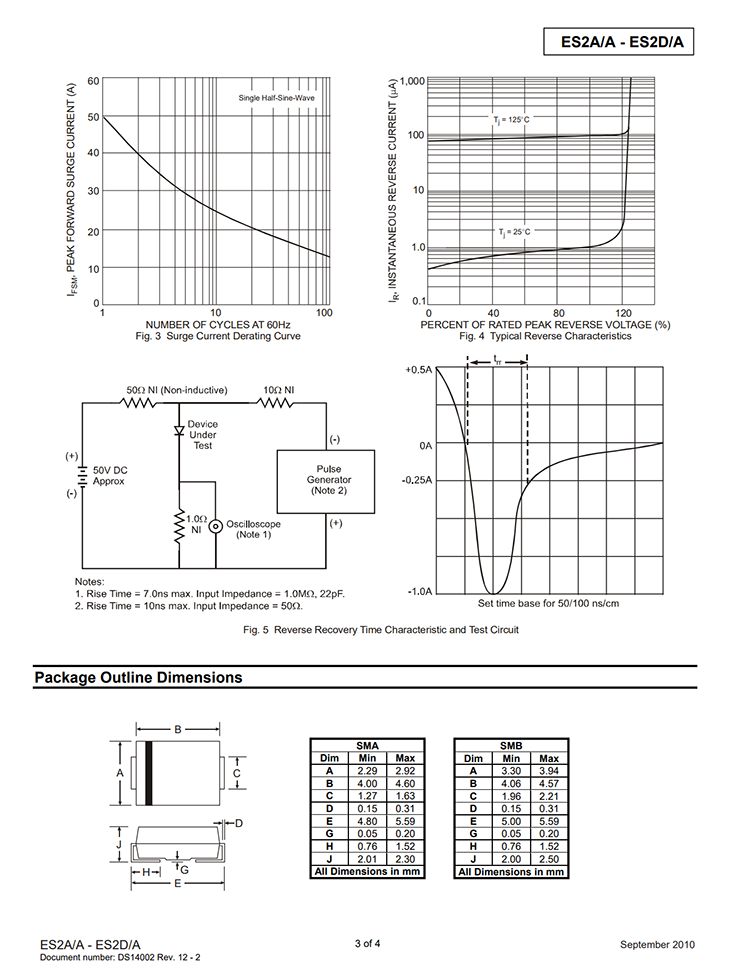

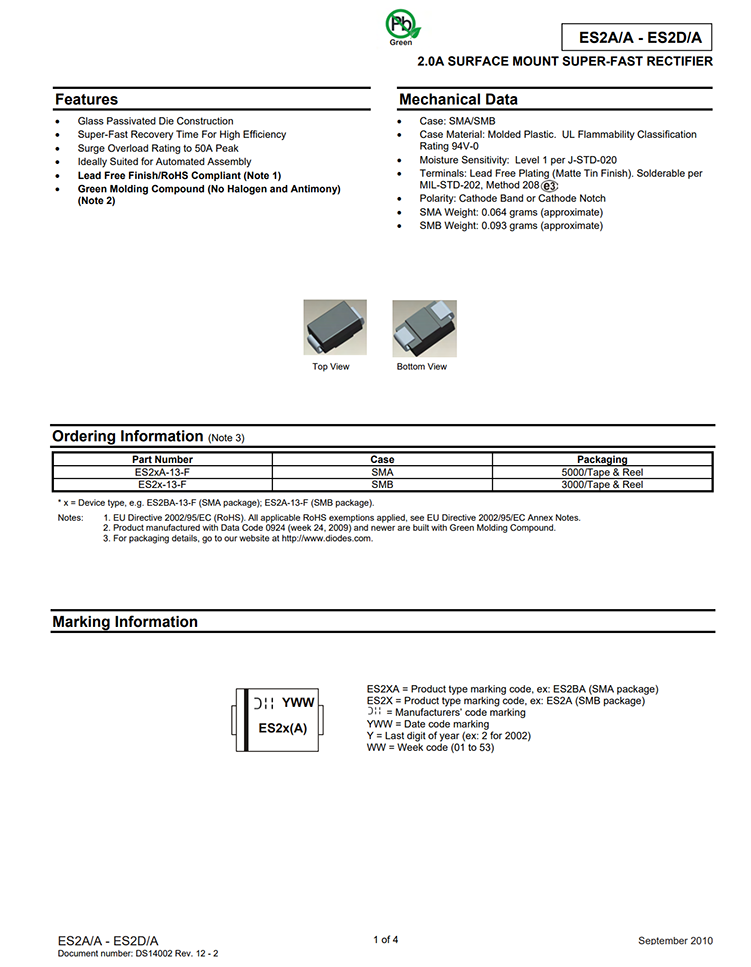

Product datasheet
For more information, please download
