Product Descriptions
The ESD7004 transient voltage suppressor is designed to protect high speed data lines from ESD.Ultra−low capacitance and low ESD clamping voltage make this device an ideal solution for protecting voltage sensitive high speed data lines. The flow−through style package allows for easy PCB layout and matched trace lengths necessary to maintain consistent impedance between high speed differential lines such as USB 3.0 and HDMI.
Product Features
• Low Capacitance (0.4 pF Typical,I/O to GND)
• Protection for the Following IEC Standards:
IEC 61000−4−2 (Level 4)
• Low ESD Clamping Voltage
• This is a Pb−Free Device
Product Applications
• USB 3.0
• HDMI
• Display Port
• eSATA
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-ESD7004MUTAG |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Type | Zener |
| Unidirectional Channels | 4 |
| Voltage - Reverse Standoff (Typ) | 5V |
| Voltage - Breakdown (Min) | 5.5V |
| Voltage - Clamping (Max) @ Ipp | 10V |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) |
| Power Line Protection | No |
| Applications | HDMI, USB |
| Capacitance @ Frequency | 0.4pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFDFN |
| Supplier Device Package | 10-UDFN (2.5x1) |
| Base Product Number | ESD7004 |

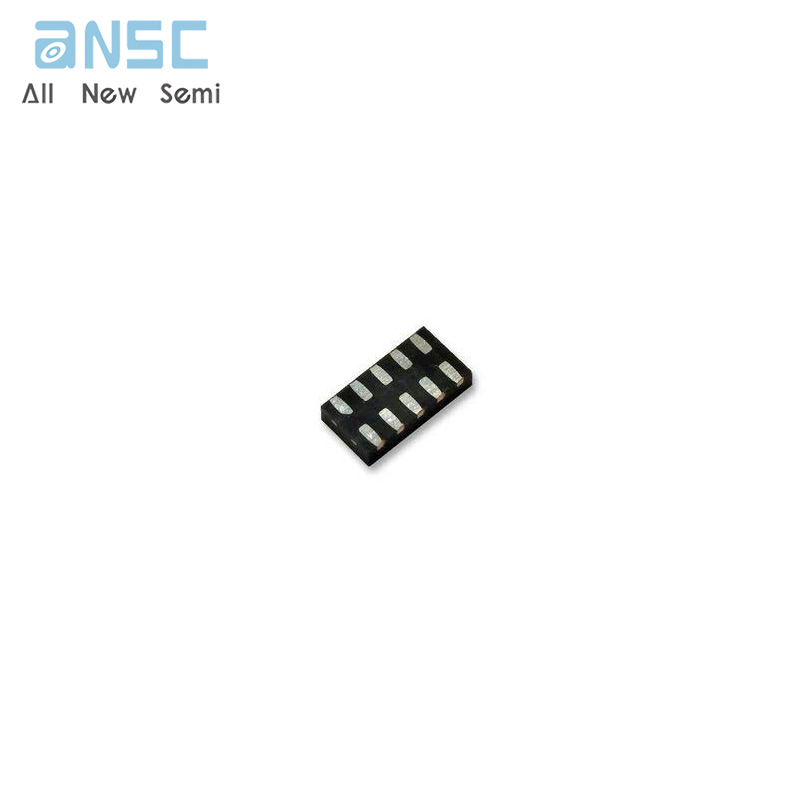

Product Photos
