Hot sale Original 1N5822RL DIODE SCHOTTKY 40V 3A DO201AD Diode 40 V 3A Through Hole DO-201AD Rectifiers Single Diodes
Manufacturer Product Number
1N5822RL
Description
1N5822RL DIODE SCHOTTKY 40V 3A DO201AD Diode 40 V 3A Through Hole DO-201AD Rectifiers Single Diodes
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
DESCRIPTION
Axial Power Schottky rectifier suited for Switch Mode Power Supplies and high frequency DC to DC converters. Packaged in DO-201AD these devices are intended for use in low voltage, high frequency inverters, free wheeling, polarity protection and small battery chargers.
FEATURES AND BENEFITS
■ VERY SMALL CONDUCTION LOSSES
■ NEGLIGIBLE SWITCHING LOSSES
■ EXTREMELY FAST SWITCHING
■ LOW FORWARD VOLTAGE DROP
Product Description
| Type | Description |
| ANSC PART# | ANSC- 1N5822RL |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Current - Average Rectified (Io) | 3A |
| Voltage - Forward (Vf) (Max) @ If | 525 mV @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 2 mA @ 40 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial |
| Supplier Device Package | Axial |
| Operating Temperature - Junction | -65°C ~ 125°C |
| Base Product Number | 1N5822 |

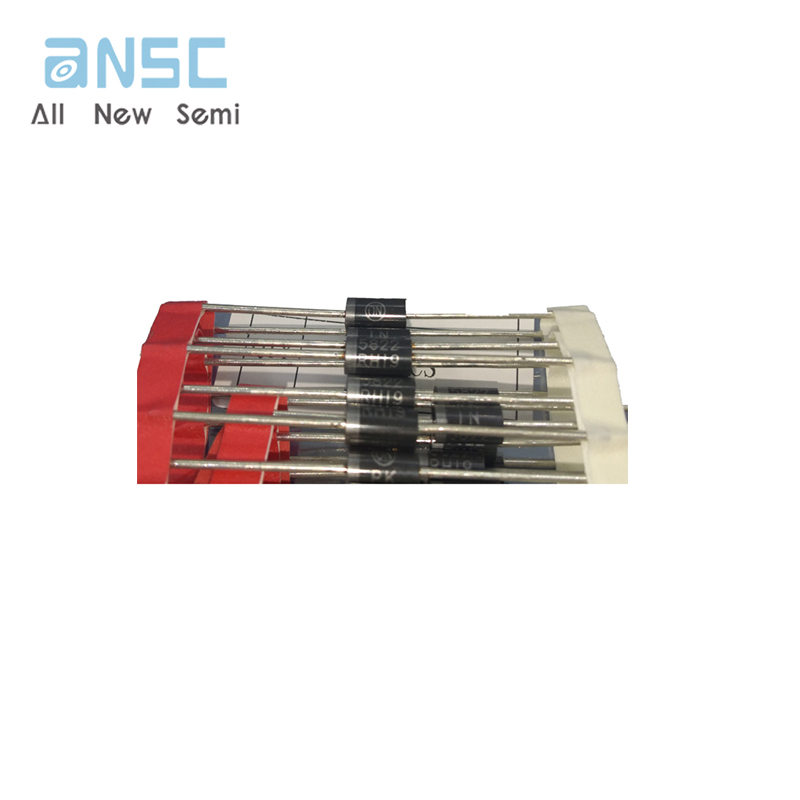

Actual image of the product

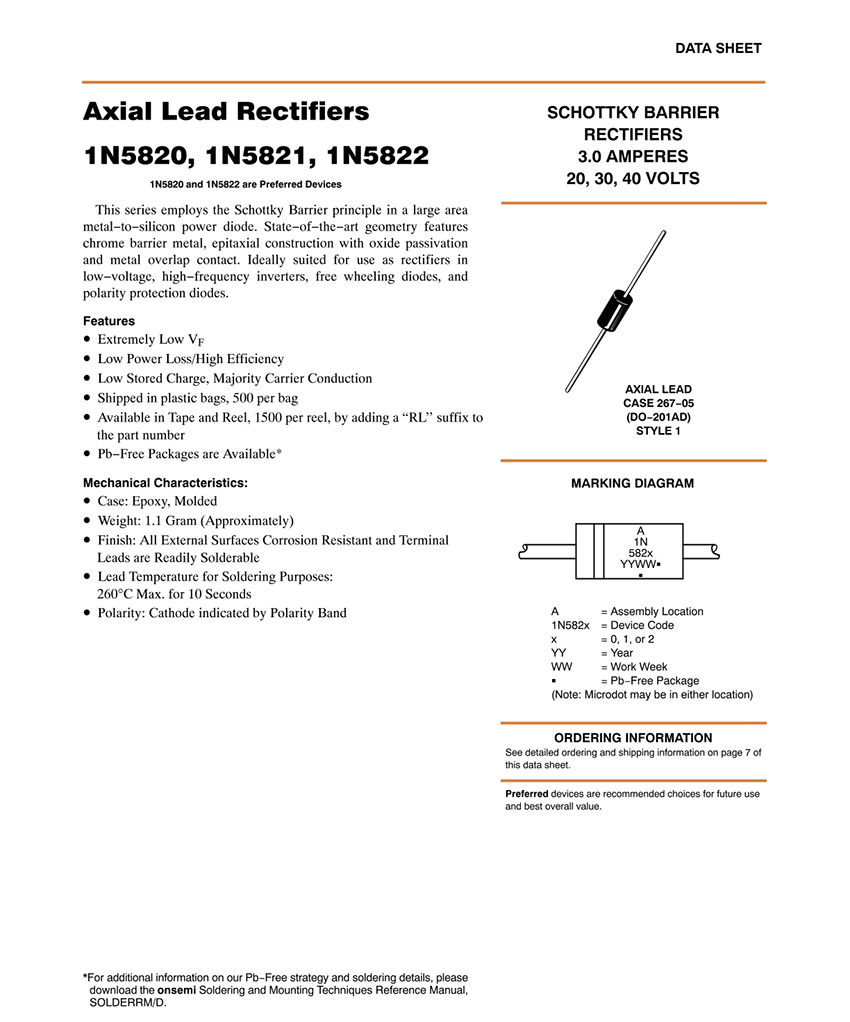

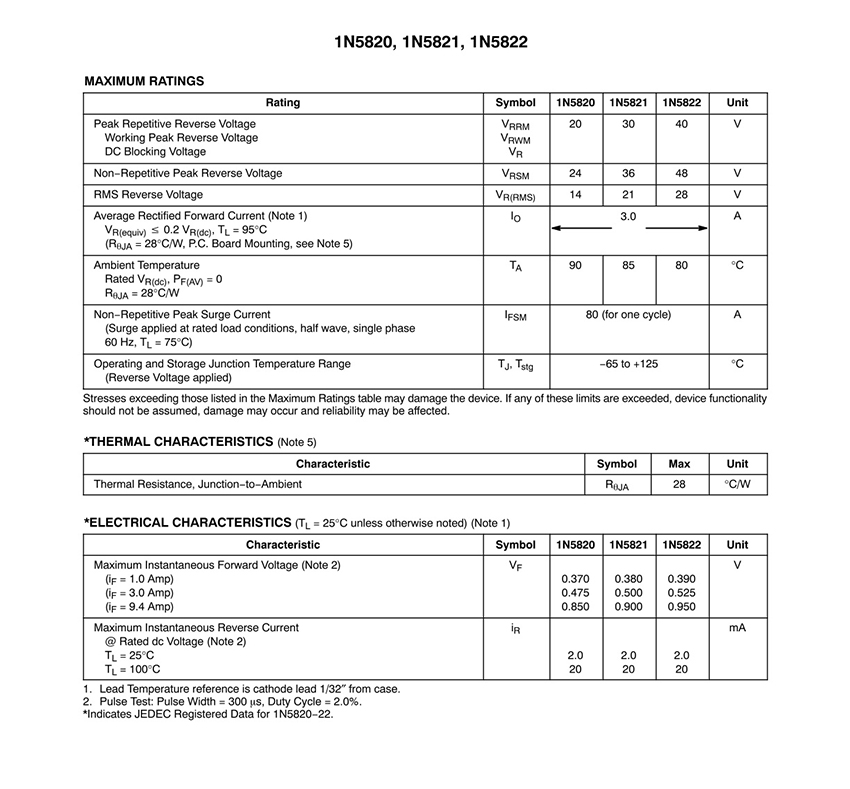

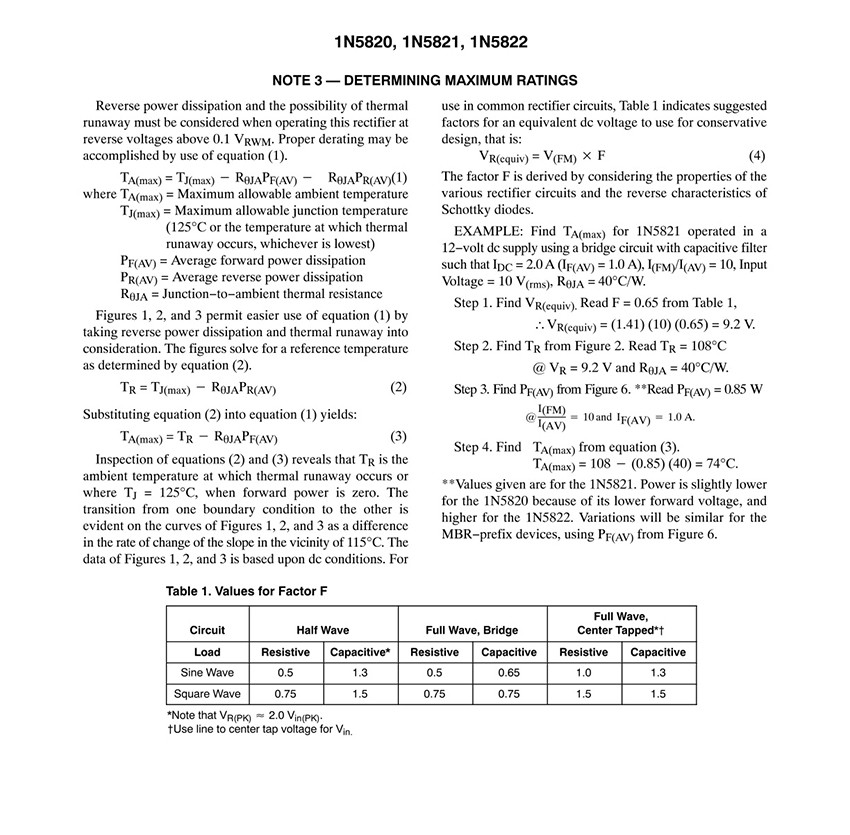

Product datasheet
For more information, please download
