Hot sale Original 1S1835 DIODE 1A 600V SILICON SIGNAL DIODE Signal Diode
Manufacturer Product Number
1S1835
Description
1S1835 DIODE 1A 600V SILICON SIGNAL DIODE Signal Diode
Package Condition
Original
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
High Speed Rectifier Applications (fast recovery)
• Average Forward Current: IF (AV) = 1.0 A (Ta = 50°C)
• Repetitive Peak Reverse Voltage: VRRM = 400, 600 V
• Reverse Recovery Time: trr (1) = 1.5 µs
trr (2) = 0.35 µs
• Plastic Mold Type.
Product Description
| Type# | Description |
| ANSC PART# | ANSC - 1S1835 |
| Ihs Manufacturer | ./ |
| Part Package Code | DO-15 |
| Package Description | LEAD FREE, PLASTIC, SC-39, 3-3B1A, 2 PIN |
| Pin Count | 2 |
| Reach Compliance Code | Unknown |
| Application | GENERAL PURPOSE |
| Case Connection | ISOLATED |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| Diode Type | RECTIFIER DIODE |
| Forward Voltage-Max (VF) | 1.2 V |
| JEDEC-95 Code | DO-15 |
| JESD-30 Code | O-PALF-W2 |
| Number of Elements | 1 |
| Number of Phases | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 125 °C |
| Operating Temperature-Min | -40 °C |
| Output Current-Max | 1 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | ROUND |
| Package Style | LONG FORM |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED |
| Qualification Status | Not Qualified |
| Rep Pk Reverse Voltage-Max | 600 V |
| Reverse Recovery Time-Max | 1.5 µs |
| Surface Mount | NO |
| Terminal Form | WIRE |
| Terminal Position | AXIAL |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |

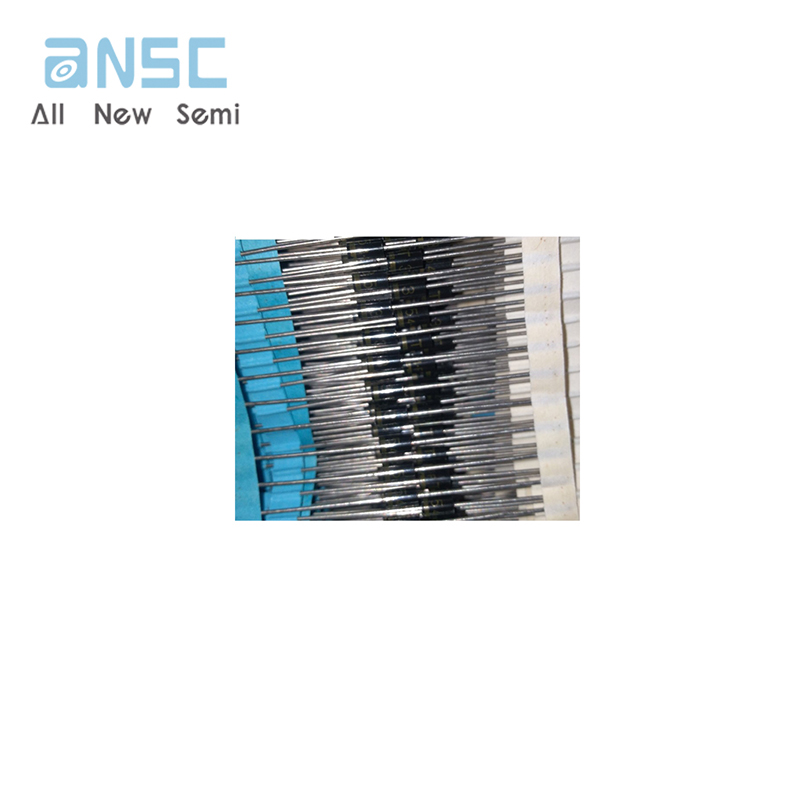

Actual image of the product

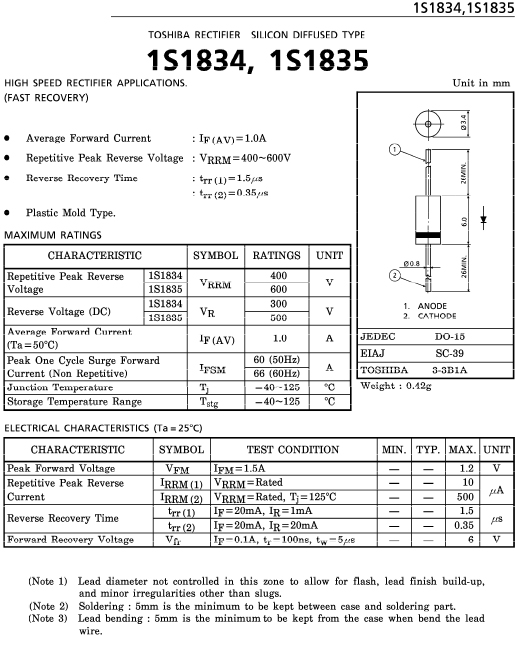

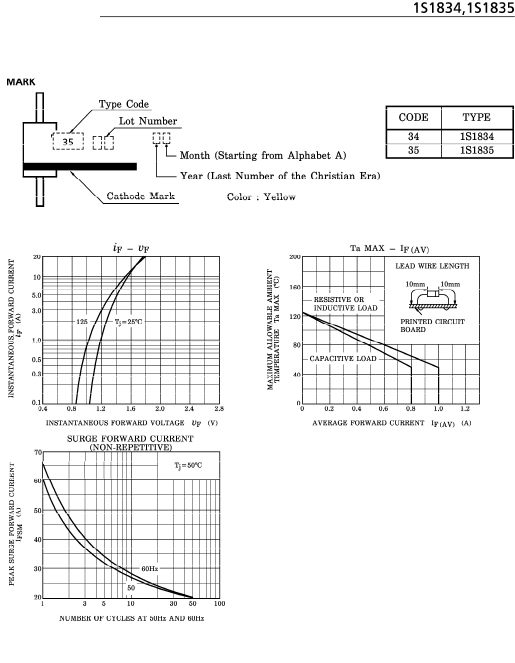

Product datasheet
For more information, please download
