Hot sale Original CM1213-08MR TVS DIODE 3.3VWM 8.8VC 10MSOP 8.8V (Typ) Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount 10-MSOP
Manufacturer Product Number
CM1213-08MR
Description
Original CM1213-08MR TVS DIODE 3.3VWM 8.8VC 10MSOP 8.8V (Typ) Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount 10-MSOP
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

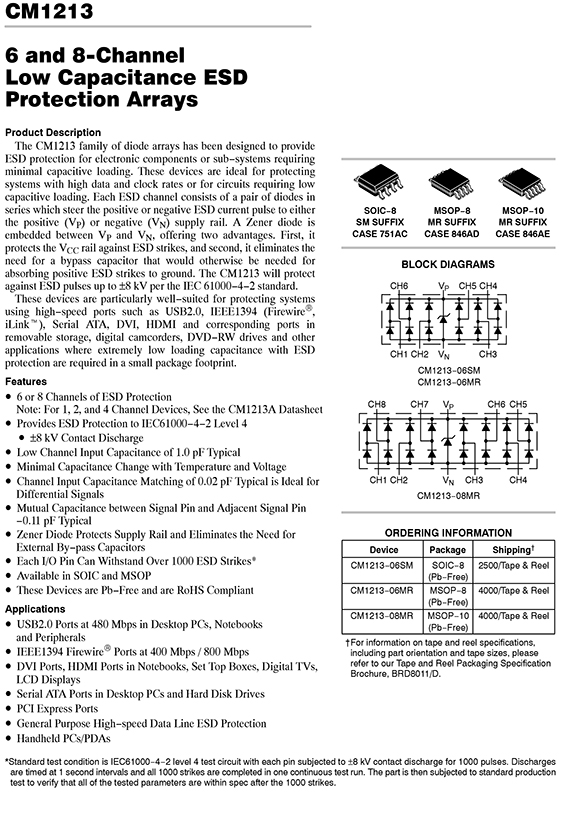

| Product Description The CM1213 family of diode arrays has been designed to provide ESD protection for electronic components or sub-systems requiring minimal capacitive loading. These devices are ideal for protecting systems with high data and clock rates or for circuits requiring low capacitive loading. Features • 6 or 8 channels of ESD protection Note: For 1, 2, and 4 channel devices, see the CM1213A datasheet. • Provides ESD protection to IEC61000-4-2 Level 4 • ±8kV contact discharge • Low channel input capacitance of 1.0pF typical • Minimal capacitance change with temperature and voltage • Channel input capacitance matching of 0.02pF typical is ideal for differential signals • Mutual capacitance between signal pin and adjacent signal pin -0.11pF typical • Zener diode protects supply rail and eliminates the need for external by-pass capacitors • Each I/O pin can withstand over 1000 ESD strikes • Available in SOIC and MSOP, lead-free packaging |
Product Description
| Type | Description |
| ANSC PART# | ANSC- CM1213-08MR |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Obsolete |
| Type | Steering (Rail to Rail) |
| Unidirectional Channels | 8 |
| Voltage - Reverse Standoff (Typ) | 3.3V |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 8.8V (Typ) |
| Current - Peak Pulse (10/1000µs) |
1A (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | Yes |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP |
| Base Product Number | CM1213 |

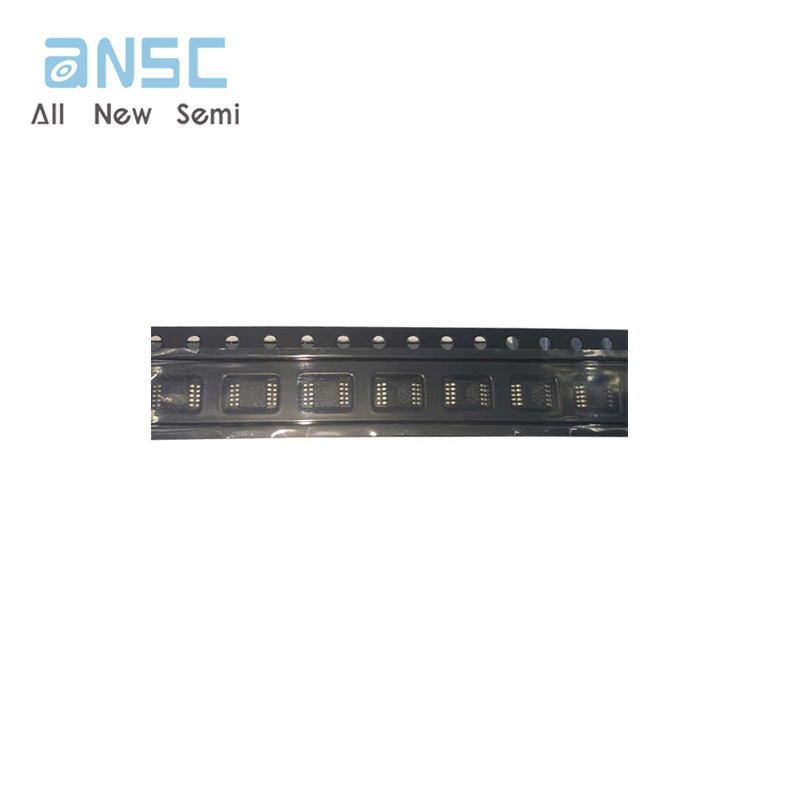

Actual image of the product

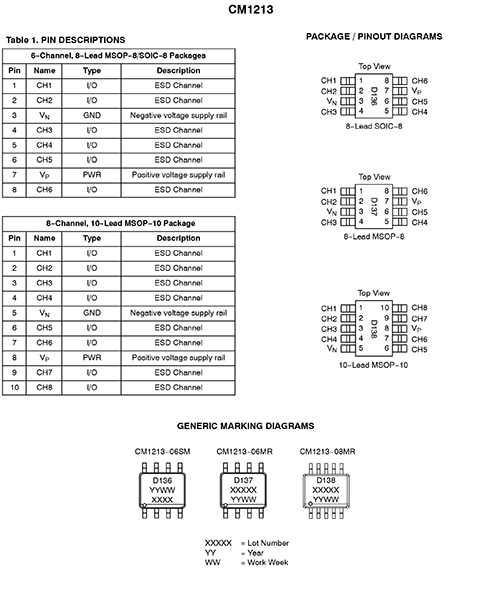

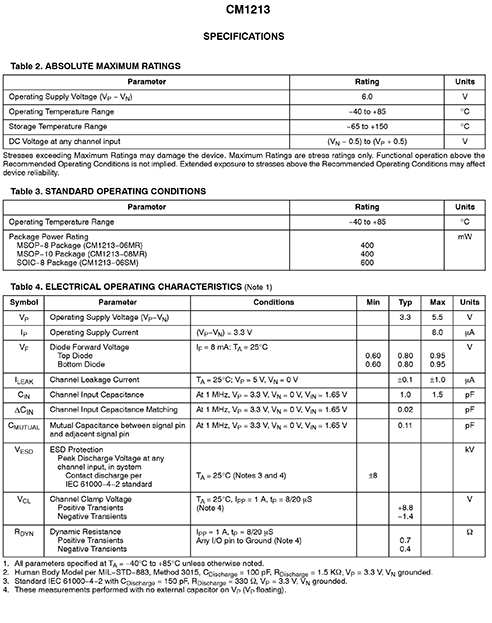

Product datasheet
For more information, please download
