Hot sale original electronics SMS05.TCT TVS DIODE 5VWM 14.5VC SOT23-6 14.5V Clamp 24A (8/20µs) Ipp Tvs Diode Surface Mount
Manufacturer Product Number
SMS05.TCT
Description
SMS05.TCT TVS DIODE 5VWM 14.5VC SOT23-6 14.5V Clamp 24A (8/20µs) Ipp Tvs Diode Surface Mount
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details

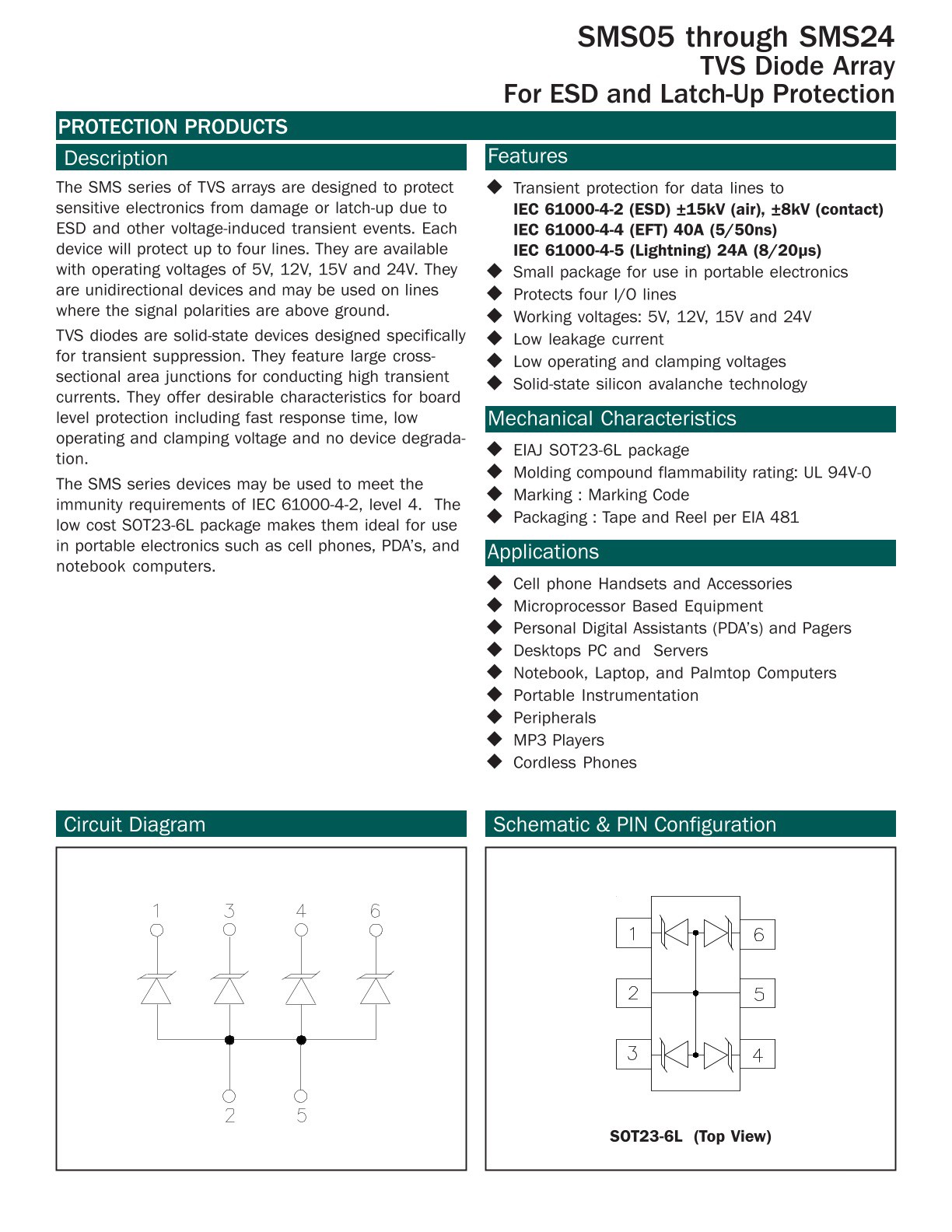

| Description The SMS series of TVS arrays are designed to protect sensitive electronics from damage or latch-up due to ESD and other voltage-induced transient events. Each device will protect up to four lines. They are available with operating voltages of 5V, 12V, 15V and 24V. They are unidirectional devices and may be used on lines where the signal polarities are above ground. Features ◆ Transient protection for data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 24A (8/20µs) ◆ Small package for use in portable electronics ◆ Protects four I/O lines ◆ Working voltages: 5V, 12V, 15V and 24V ◆ Low leakage current ◆ Low operating and clamping voltages ◆ Solid-state silicon avalanche technology Applications ◆ Cell phone Handsets and Accessories ◆ Microprocessor Based Equipment ◆ Personal Digital Assistants (PDA’s) and Pagers ◆ Desktops PC and Servers ◆ Notebook, Laptop, and Palmtop Computers ◆ Portable Instrumentation ◆ Peripherals ◆ MP3 Players ◆ Cordless Phones |
Product Description
| Type# | Description |
| ANSC PART# | ANSC -SMS05.TCT |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | Original |
| Series | SMS |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Type | Zener |
| Unidirectional Channels | 4 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 14.5V |
| Current - Peak Pulse (10/1000碌s) | 24A (8/20µs) |
| Power - Peak Pulse | 350W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 325pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| Base Product Number | SMS05 |

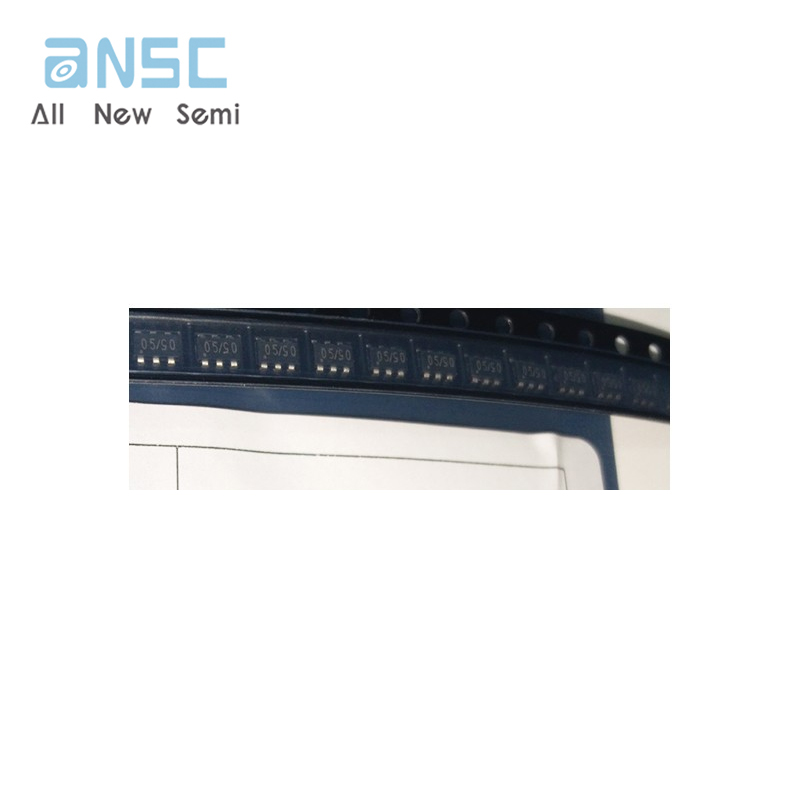

Actual image of the product

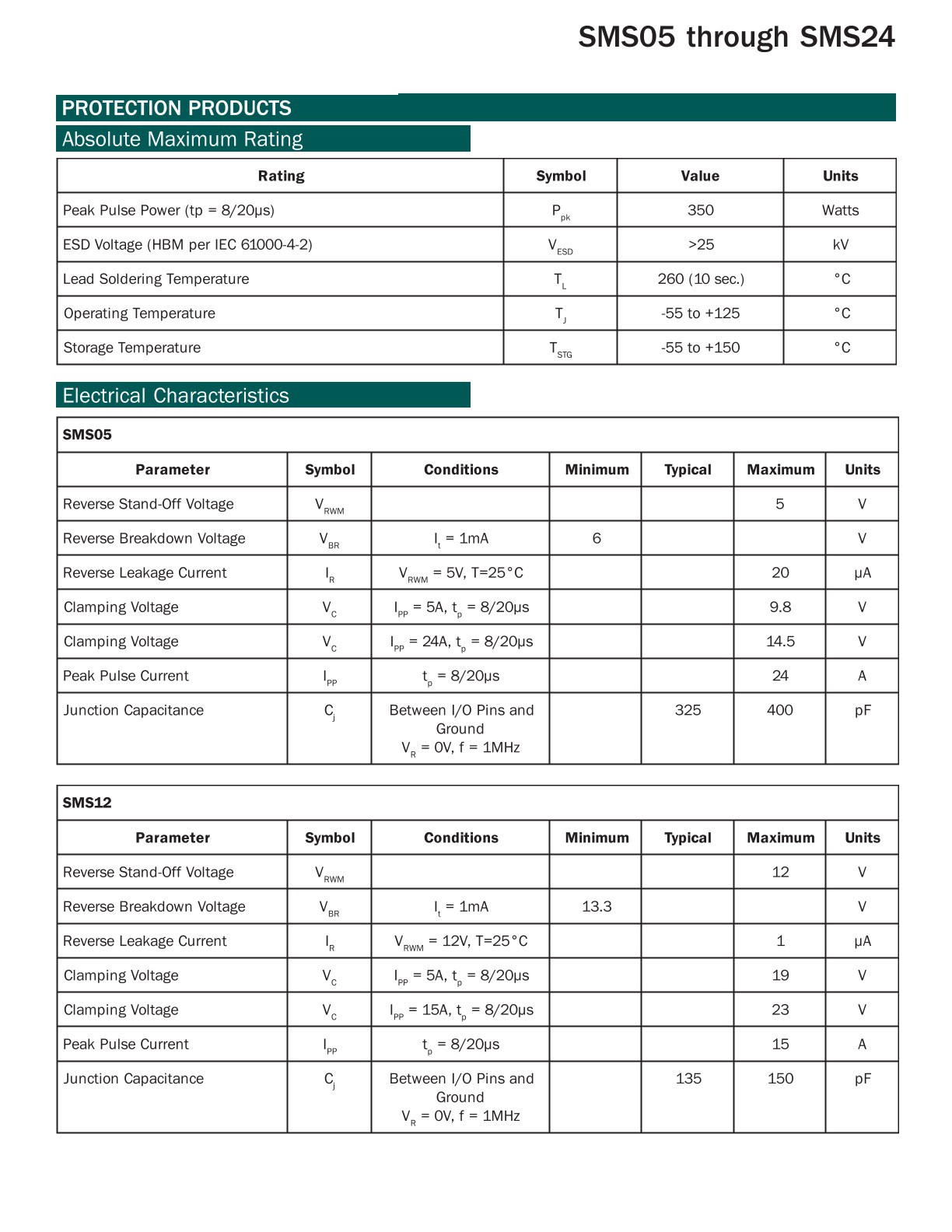

Product datasheet
For more information, please download
