Hot-selling and scarce BAT54CTA SURFACE MOUNT SCHOTTKY BARRIER DIODE SOT23 spot stock
Manufacturer Product Number
BAT54CTA
Description
BAT54CTA SURFACE MOUNT SCHOTTKY BARRIER DIODE SOT23 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
200mA surface mount Schottky barrier diode in SOT23 (Standard) package, offers low turn-on voltage and fast switching capability, designed with PN junction guard ring for transient and ESD protection, totally lead-free finish and RoHS compliant,”Green” device.
Product Features
Low Turn-On Voltage
Fast Switching
PN Junction Guard Ring for Transient and ESD Protection
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free.“Green” Device
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-BAT54CTA |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Diode Arrays | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Diode Configuration | 1 Pair Common Cathode |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) (per Diode) | 200mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 100 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | 5 ns |
| Current - Reverse Leakage @ Vr | 4 µA @ 25 V |
| Operating Temperature - Junction | 125°C (Max) |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | BAT54 |

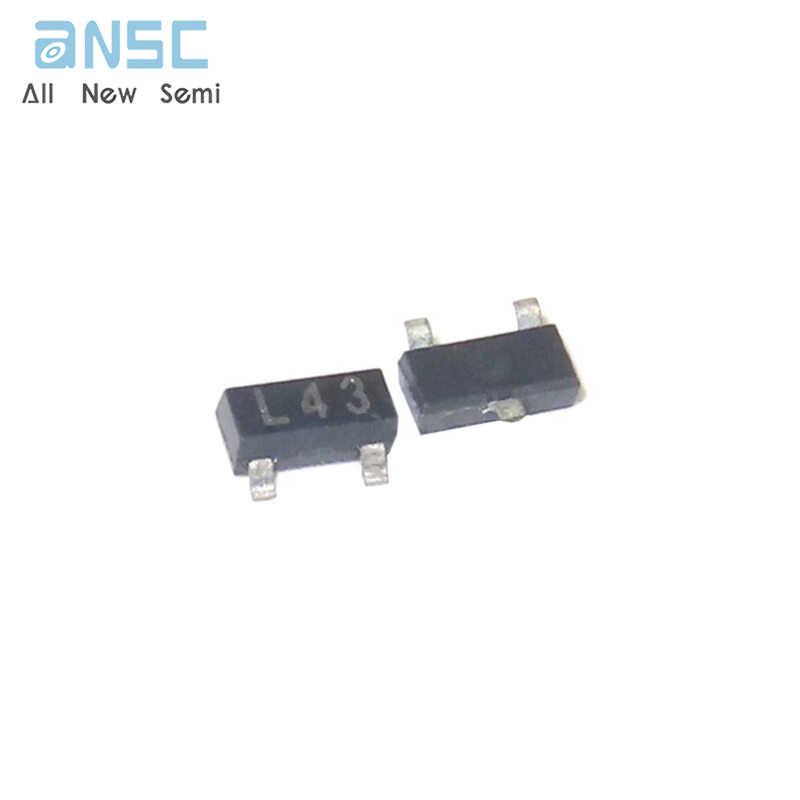

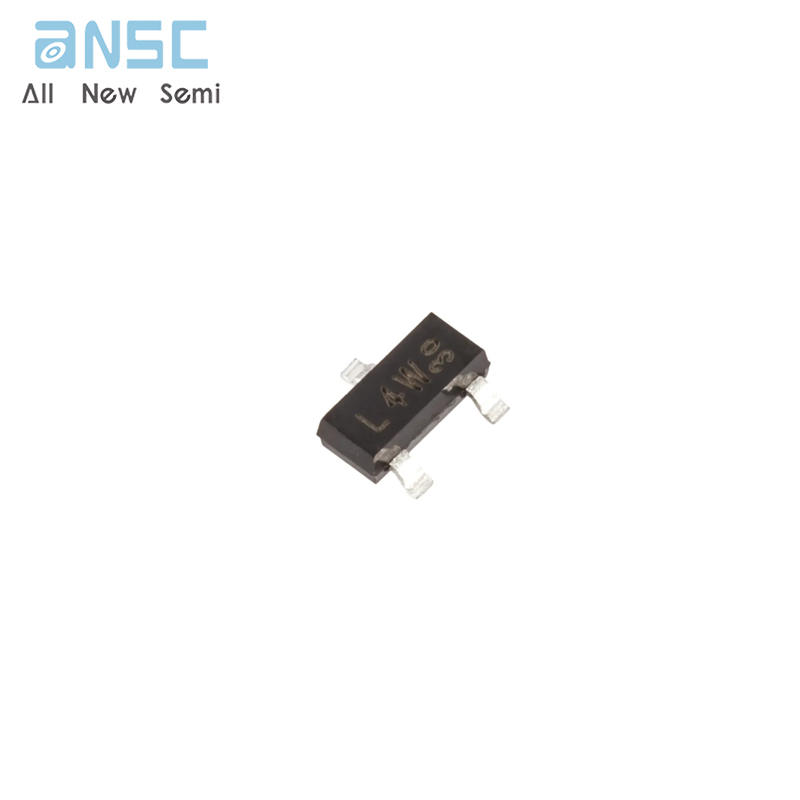

Product Photos
For more product information, please download the PDF
