Product Descriptions

RailClamps are ultra low capacitance TVS arraysdesigned to protect high speed data interfaces. Thisseries has been specifically designed to protect sensitive components which are connected to high-speeddata and transmission lines from overvoltage causedby ESD(electrostatic discharge), CDE (Cable DischargeEvents), and EFT (electrical fast transients).

The RClamp0502B has a typical capacitance of only0.50pF(pin 1to 2). This means it can be used oncircuits operating in excess of 3GHz without signalattenuation. They may be used to meet the ESDimmunity requirements of lEC 61000-4-2, Level 4(±15kV air, +8kV contact discharge). Each device canbe configured to protect 1 bidirectional line or twounidirectional lines.

These devices are in a small SC-75 ($0T-523) packageand feature a lead-free, matte tin finish. They are compatible with both lead free and SnPb assembly tech-niques. They are designed for use in applications whereboard space is at a premium. The combination of smallsize, low capacitance, and high level of ESD protectionmakes them a flexible solution for applications such asHDM,MDDl, antenna circuits, Automatic Test Equipment.USB 2.0, and Infiniband circuits.

Product Features

• Transient protection for high-speed data lines to

• IEC 61000-4-2(ESD)±15kV(air),±8kV(contact)

• IEC 61000-4-4(EFT)40A(5/50ns)

• Designed to replace polymer TVS

• Protects up to two l/O lines

• Ultra-Low capacitance(<1pF)

• No insertion loss to >3.0GHZ

• Low profile (<1mm)

• Low leakage current and clamping voltage

• Low operating voltage: 5.0V

• Solid-state silicon-avalanche technology

Product Mechanical Characteristics

• SC-75(SOT-523)package

• Lead Finish: Matte Tin

• RoHS/WEEE Compliant

• Molding compound flammability rating: UL 94V-0

• Marking:P5

• Packaging: Tape and Reel per ElA 481

Product Applications

• High-Definition Multimedia Interface (HDMI)

• Mobile Display Digital Interface (MDDl)

• RF/Antenna Circuits

• USB 2.0 & Firewire Ports

• GaAs Photodetector Protection

• HBT Power Amp Protection

• Infiniband Transceiver Protection

Product Specifications

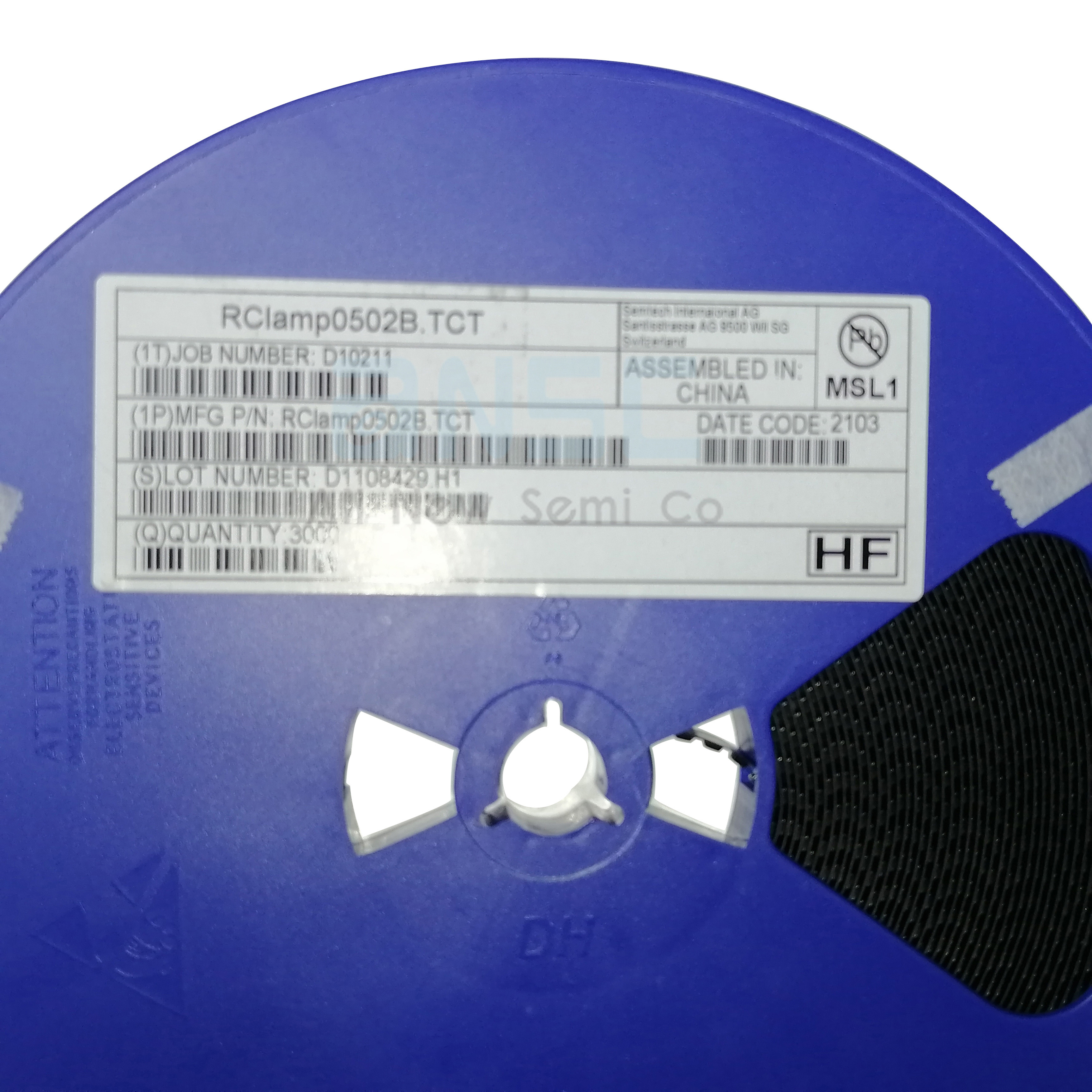

Product Show
