Hot sale original electronics BYG10M-E3/TR DIODE AVALANCHE 1KV 1.5A DO214AC Diode 1000 V 1.5A Surface Mount DO-214AC (SMA)
Manufacturer Product Number
BYG10M-E3/TR
Description
BYG10M-E3/TR DIODE AVALANCHE 1KV 1.5A DO214AC Diode 1000 V 1.5A Surface Mount DO-214AC (SMA)
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Brief Description: The BYG10M-E3/TR is a surface-mount and through-hole avalanche Diodes Division. It is designed for general-purpose applications and features a free-wheeling diode configuration. Features: Avalanche diode with a single element configuration Forward voltage of 1.15V at 1.5A Reverse voltage of 1kV Peak non-repetitive surge current of 30A Reverse recovery time of 4 μs Operating temperature range of -55°C to 150°C Lead-free and RoHS3 compliant Surface-mount and through-hole mounting options Package type: DO-214AC, SMA Application Grade: The BYG10M-E3/TR is a general-purpose diode suitable for a wide range of applications, including: Power supplies Switching power supplies Motor control Lighting applications General-purpose rectification Applications: General-purpose rectification Power supplies Switching power supplies Motor control Lighting applications Other applications requiring a high-voltage, high-current diode with fast recovery characteristics. |
Product Description
| Type | Description |
| ANSC PART# | ANSC-BYG10M-E3/TR |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Technology | Avalanche |
| Voltage - DC Reverse (Vr) (Max) | 1000 V |
| Current - Average Rectified (Io) | 1.5A |
| Voltage - Forward (Vf) (Max) @ If | 1.15 V @ 1.5 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 4 µs |
| Current - Reverse Leakage @ Vr | 1 µA @ 1000 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | DO-214AC (SMA) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | BYG10 |

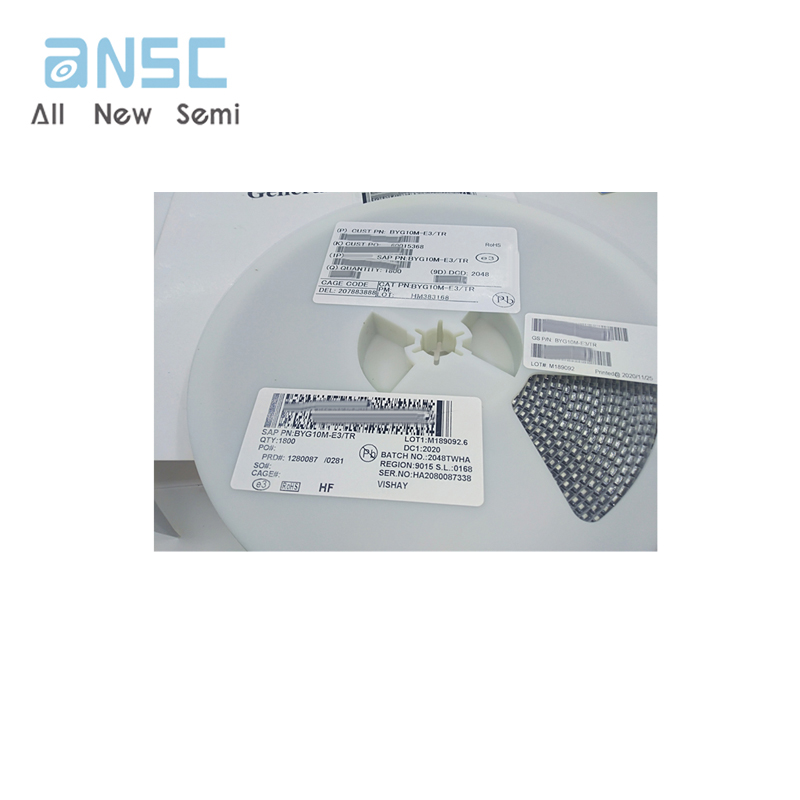

Product Photos

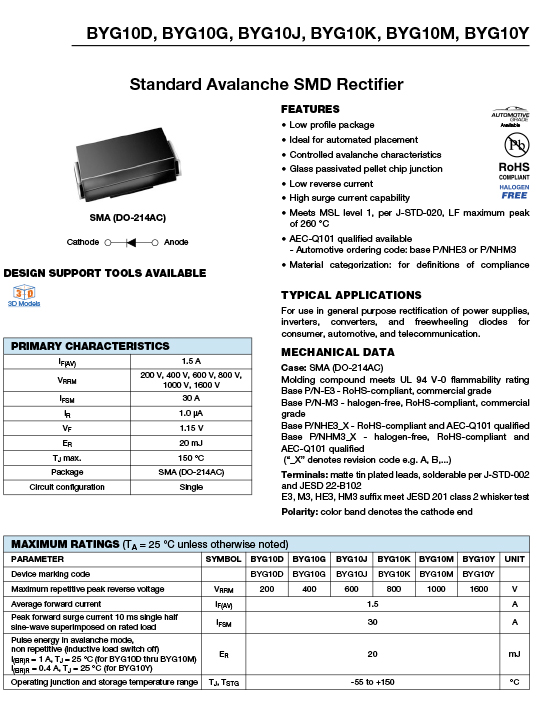

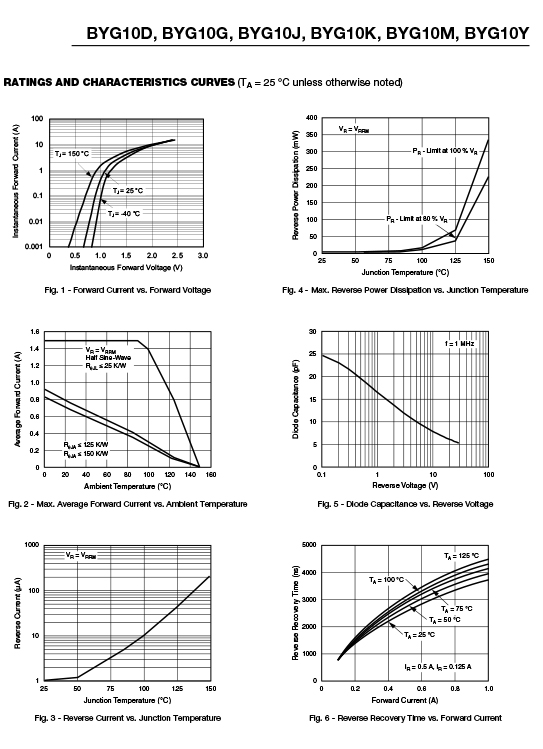

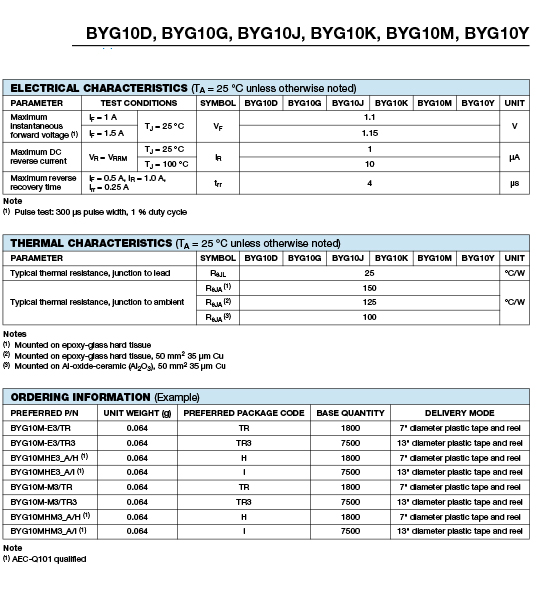

Product datasheet
For more information, please download
