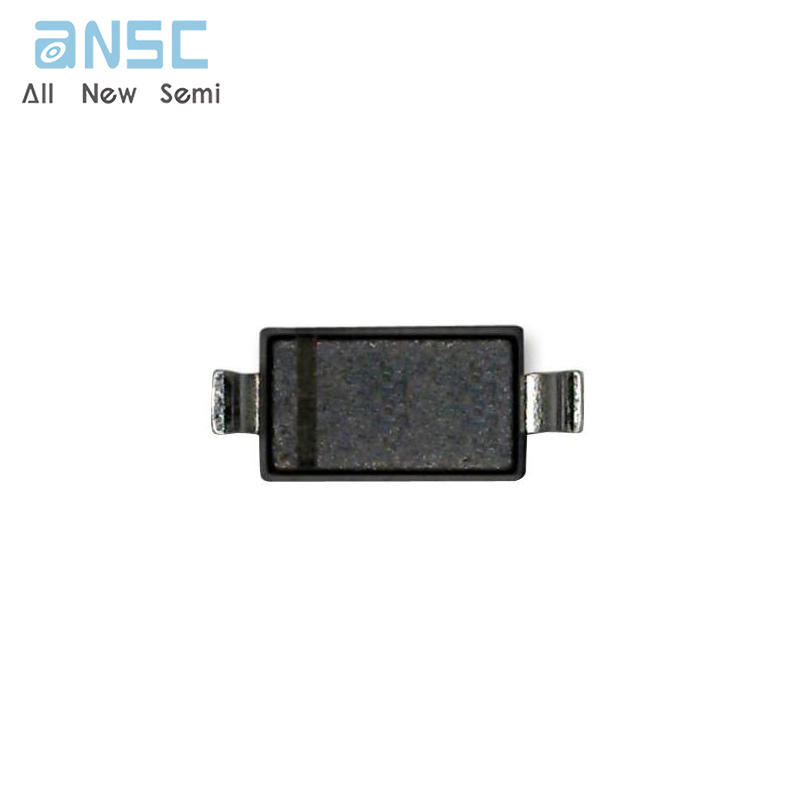

Hot-selling and scarce BZT52C3V6-7-F Zener Diode 3.6 V 500 mW ±6% Surface Mount SOD-123 spot stock
Manufacturer Product Number
BZT52C3V6-7-F
Description
BZT52C3V6-7-F Zener Diode 3.6 V 500 mW ±6% Surface Mount SOD-123 spot stock
Package Condition
Tape & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
Case: SOD123
Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe(Lead Free Plating). Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.010 grams (Approximate)
Product Features
Planar Die Construction
500mW Power Dissipation
General Purpose, Medium Current
Ideally Suited for Automated Assembly Processes
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free.“Green” Device (Notes 3 & 4)
Qualified to AEC-Q101 Standards for High Reliability
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-BZT52C3V6-7-F |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Zener | |
| Single Zener Diodes | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Voltage - Zener (Nom) (Vz) | 3.6 V |
| Tolerance | ±6% |
| Power - Max | 500 mW |
| Impedance (Max) (Zzt) | 90 Ohms |
| Current - Reverse Leakage @ Vr | 5 µA @ 1 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Operating Temperature | -65°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123 |
| Supplier Device Package | SOD-123 |
| Base Product Number | BZT52 |
Product Photos
For more product information, please download the PDF
