Hot sale Original SDUR6020WT Diode Array 1 Pair Common Cathode 200 V Through Hole TO-247-3
Manufacturer Product Number
SDUR6020WT
Description
SDUR6020WT Diode Array 1 Pair Common Cathode 200 V Through Hole TO-247-3
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Product Description: The SDUR6020WT is a fast-recovery rectifier diode array from SMC Diode Solutions, designed for high-power applications. It is a 1-pair common cathode diode configuration, packaged in a TO-247AD package. Features: Fast-recovery diode with a reverse recovery time of 45ns Maximum forward voltage of 1.2V at 30A Maximum DC reverse voltage of 200V Operating temperature range of -55°C to 150°C Through-hole mounting type ROHS3 compliant Moisture sensitivity level (MSL) of 1 (unlimited) Factory lead time of 17 weeks Application Grade: The SDUR6020WT is designed for high-power applications, such as: Power supplies Motor control Renewable energy systems Industrial automation Applications: High-power rectification High-voltage power supplies Motor control systems Renewable energy systems Industrial automation applications Overall, the SDUR6020WT is a high-performance rectifier diode array suitable for high-power applications that require fast recovery and high reliability. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC -SDUR6020WT |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Diode Arrays | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Diode Configuration | 1 Pair Common Cathode |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Current - Average Rectified (Io) (per Diode) | - |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V @ 30 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 45 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 200 V |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247AD |
| Base Product Number | SDUR6020 |

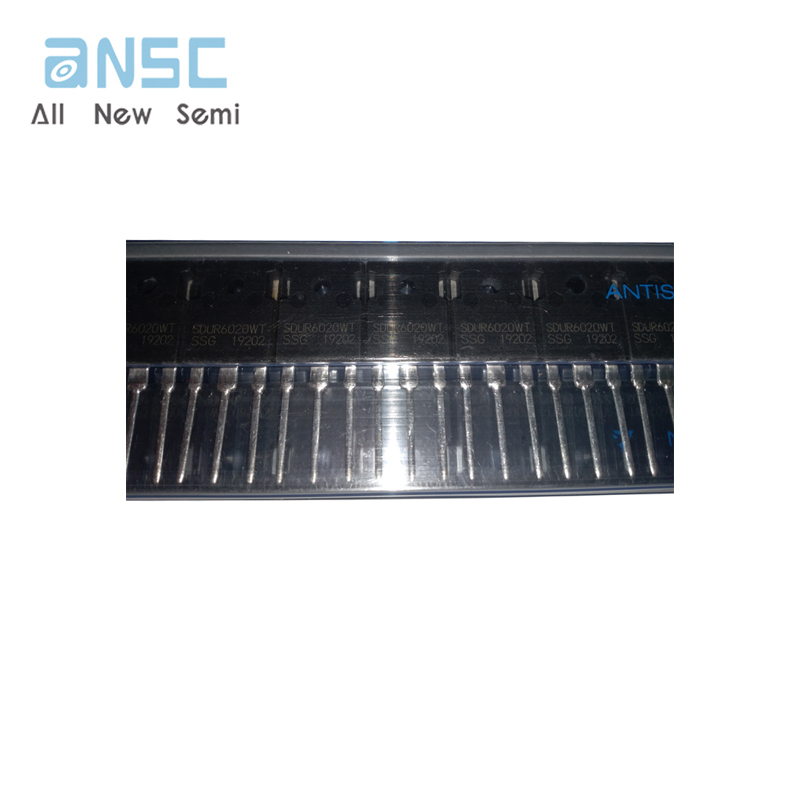

Product Photos

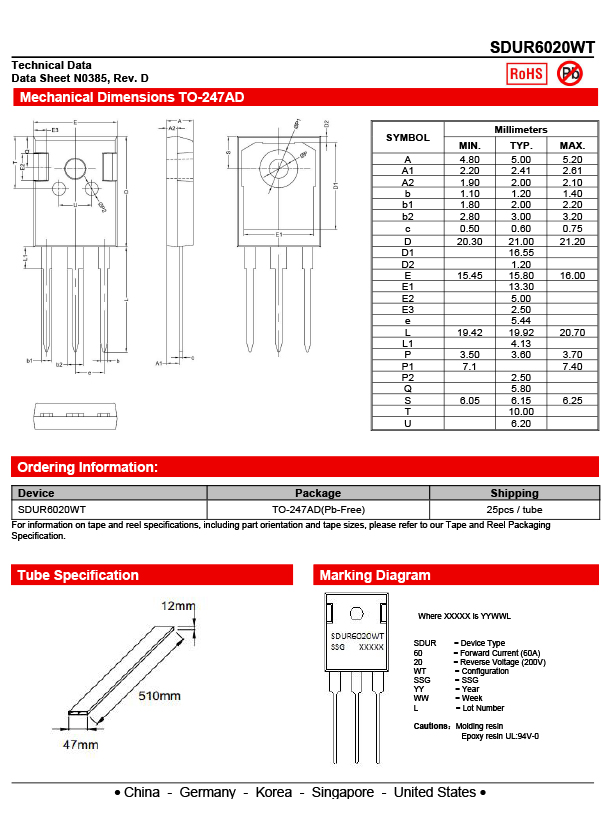

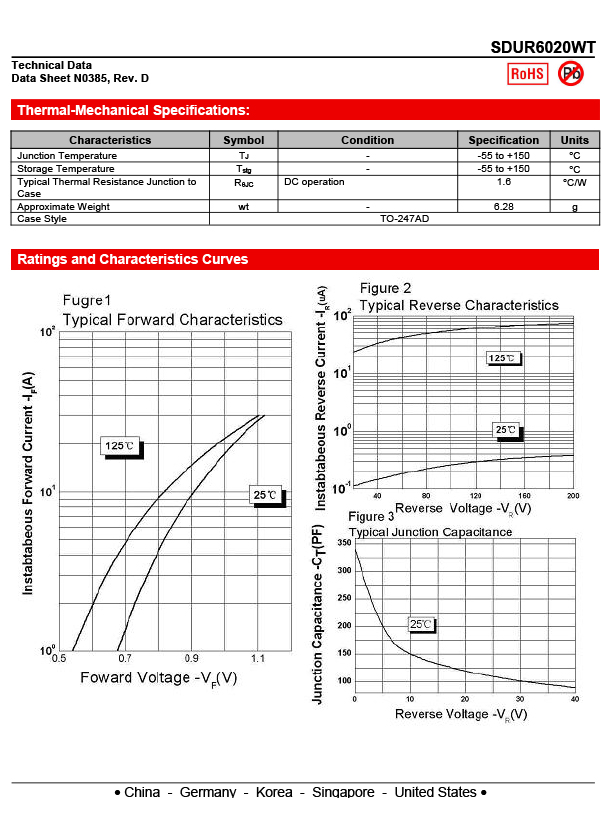

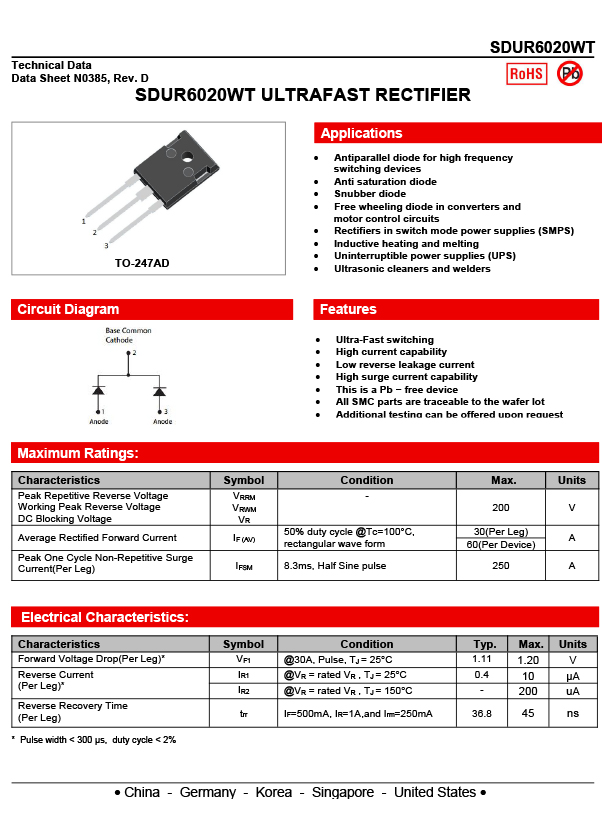

Product datasheet
