Hot sale Original 1SV270 DIODE UHF BAND 16 pF SILICON VARIABLE CAPACITANCE DIODE 1-1E1A 2 PIN Variable Capacitance Diode

Product Description

The 1SV270 is a high-frequency, variable capacitance diode (VCD) integrated circuit (IC)

designed for surface-mount applications. This small outline, rectangular package IC features

a dual terminal configuration with a gull wing terminal form.

The IC is designed to operate at a maximum temperature of 125°C and has a reverse test voltage

of 10V.

Product Features

High-frequency operation (ULTRA HIGH FREQUENCY)

Variable capacitance diode (VCD) technology

Dual terminal configuration with gull wing terminal form

Surface-mount package with a small outline rectangular package body

Operating temperature range of 0°C to 125°C

Reverse test voltage of 10V

Reverse current maximum of 0.003 μA

Breakdown voltage minimum of 10V

Diode capacitance nominal value of 16 pF

Diode capacitance ratio minimum of 1.8

Diode capacitance tolerance of 6.25%

Product Applications

High-frequency applications such as wireless communication systems, radar systems,

and satellite communication systems

Low-power consumption applications such as portable devices and wearable electronics

High-reliability applications such as aerospace and defense systems

Product Description

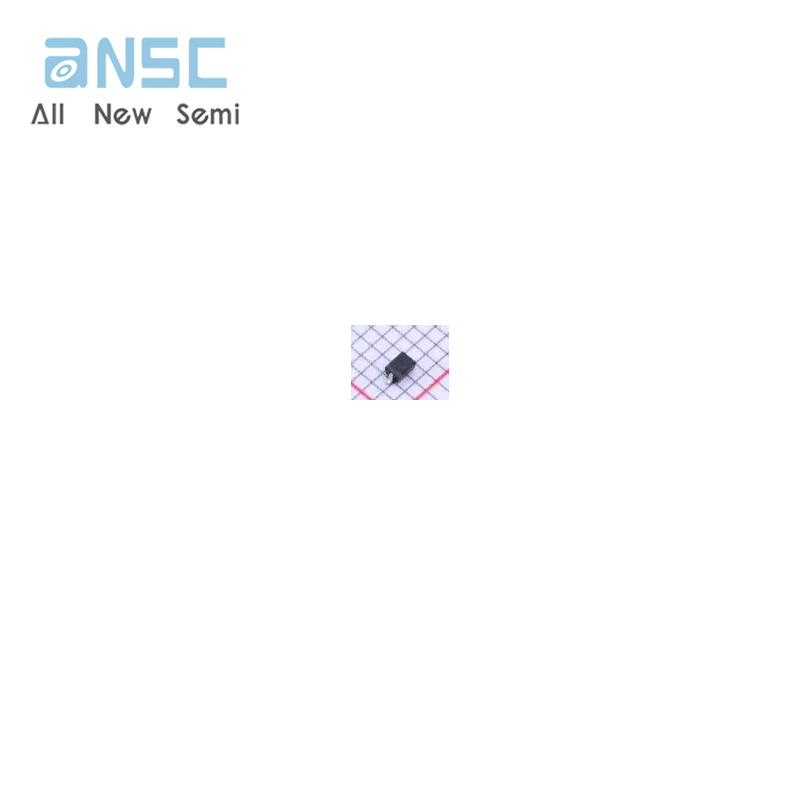

Product Photos

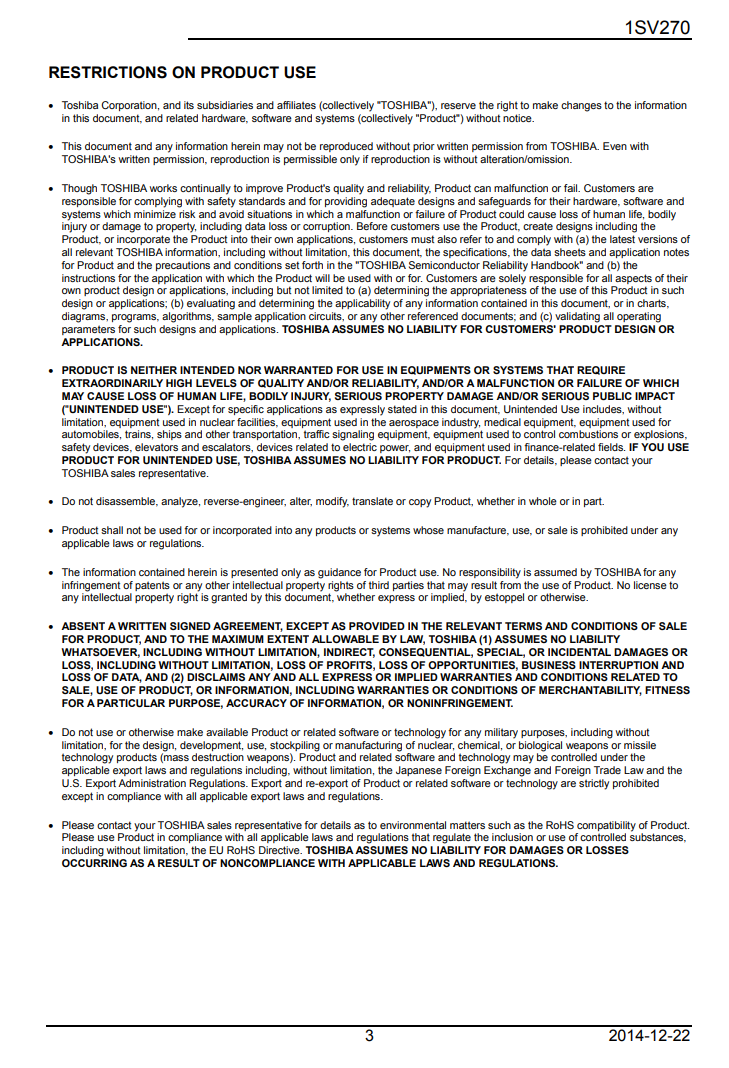

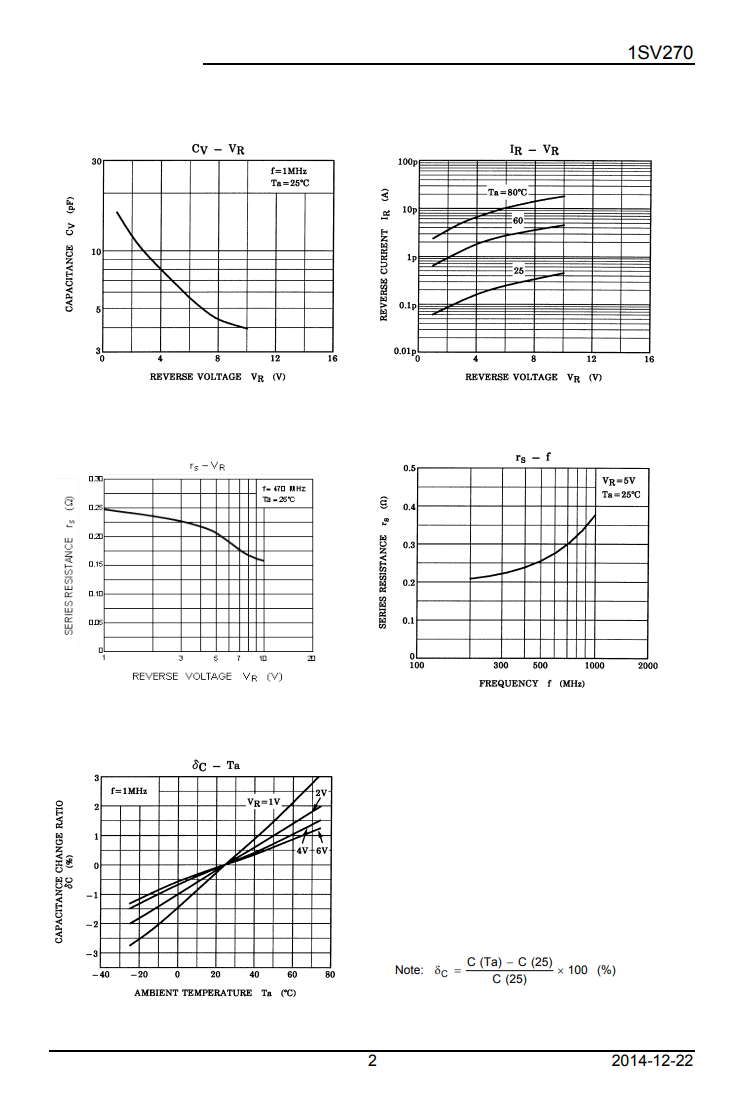

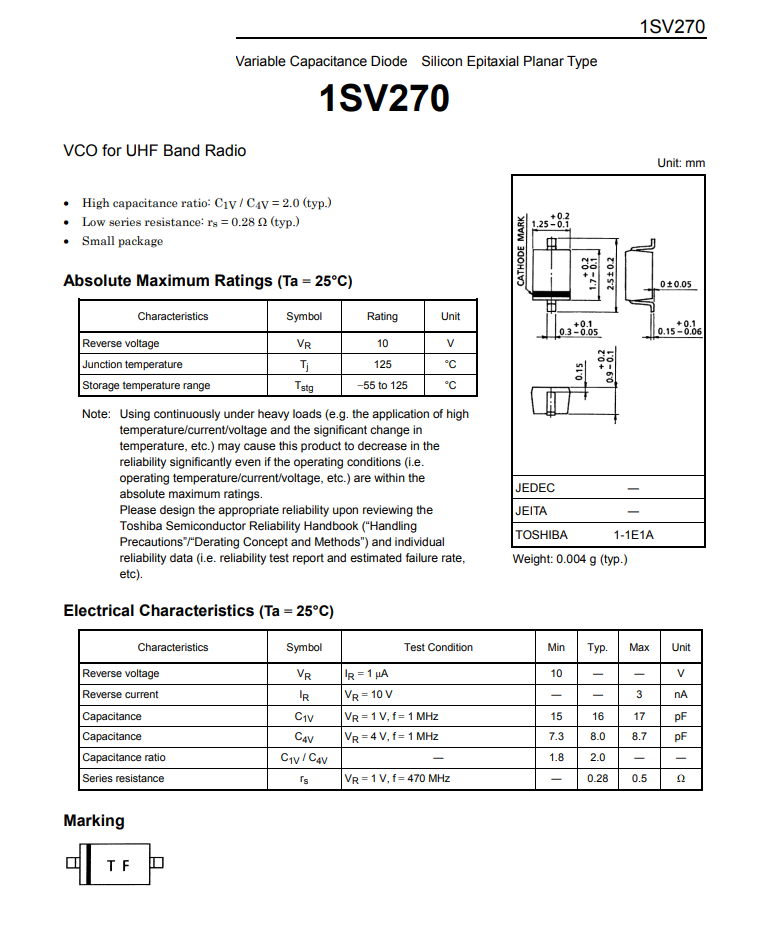

Product datasheet

For more information, please download
