Hot sale Original SMBJ150A TVS DIODE 150VWM 243V Clamp 2.5A Ipp Tvs Diode Surface Mount DO-214AA (SMBJ) General Purpose

Manufacturer Product Number

SMBJ150A

Description

Original SMBJ150A TVS DIODE 150VWM 243V Clamp 2.5A Ipp Tvs Diode Surface Mount DO-214AA (SMBJ) General Purpose

Package Condition

Tape & Reel (TR) Cut Tape (CT)

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

STAND-OFF VOLTAGE - 5.0 to 350 Volts

POWER DISSIPATION - 600 WATTS

FEATURES

• For surface mounted applications

• Reliable low cost construction utilizing molded plastic technique

• Plastic material has UL flammability classification 94V-O

• Typical IR less than 1uA above 10V

• Fast response time: typically less than 1.0ns for Uni-direction,less than 5.0ns for Bi-direction,

form 0 Volts to BV min

Product Description

Type	Description
ANSC PART#	ANSC-SMBJ150A
Ihs Manufacturer	Original
Part Package Code	DO-214AA
Pin Count	2
Samacsys Manufacturer	/
Additional Feature	EXCELLENT CLAMPING CAPABILITY
Breakdown Voltage-Max	185 V
Breakdown Voltage-Min	167 V
Breakdown Voltage-Nom	176 V
Clamping Voltage-Max	243 V
Configuration	SINGLE
Diode Element Material	SILICON
Diode Type	TRANS VOLTAGE SUPPRESSOR DIODE
Forward Voltage-Max (VF)	3.5 V
JEDEC-95 Code	DO-214AA
JESD-30 Code	R-PDSO-C2
JESD-609 Code	e3
Moisture Sensitivity Level	1
Non-rep Peak Rev Power Dis-Max	600 W
Number of Elements	1
Number of Terminals	2
Operating Temperature-Max	150 °C
Operating Temperature-Min	-65 °C
Package Body Material	PLASTIC/EPOXY
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE
Peak Reflow Temperature (Cel)	260
Polarity	UNIDIRECTIONAL
Power Dissipation-Max	5 W
Qualification Status	Not Qualified
Reference Standard	IEC-61000-4-2, 4-4; UL RECOGNIZED
Rep Pk Reverse Voltage-Max	150 V
Reverse Current-Max	1 µA
Reverse Test Voltage	150 V
Surface Mount	YES
Technology	AVALANCHE
Terminal Finish	MATTE TIN
Terminal Form	C BEND
Terminal Position	DUAL
Time@Peak Reflow Temperature-Max (s)	40

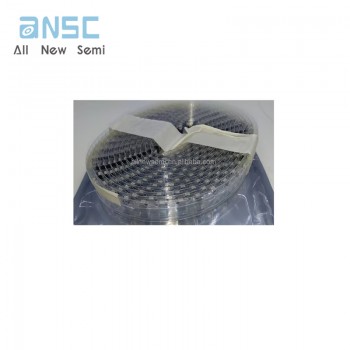

Actual image of the product

SMBJ150A

Product datasheet

For more information, please download
