Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot sale Original ZHCS506TA Diodes Rectifiers Single Diodes 60V 500mA 10 ns 20pF @ 25V, 1MHz Surface Mount SOT-23-3
Manufacturer Product Number
ZHCS506TA
Description
Original ZHCS506TA Diodes Rectifiers Single Diodes 60V 500mA 10 ns 20pF @ 25V, 1MHz Surface Mount SOT-23-3
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Overview
This device's average rectified current is zero volts.In addition to its primary function, this electronic or electrical device generates no heat.A forward current of 500mA is allowed.As for rectifiers current rating, rectifier is 500mA, which is the maximum current a fuse can carry wrectifierhout too much degradation.A 20pF value can be delivered based on the capacitance.The datasheets show a peak reverse of 40μA, as shown in the data chart.
Product Features
an average rectified current of 500mA volts
a current rating of 500mA
the peak reverse is 40μA
Product Applications
ZHCS506TA applications of single-phase diode rectifier.
DC motor control and drives
Battery chargers
Welders
Power converters
Reverse Polarity Protection
Ultra High-Speed Switching
Freewheeling
Polarity Protection Diode
Recirculating Diode
Switching Diode
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - ZHCS506TA |
|
Category |
Discrete Semiconductor Products Diodes Rectifiers Single Diodes |
|
Mfr |
- |
|
Series |
- |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Technology |
Schottky |
|
Voltage - DC Reverse (Vr) (Max) |
60 V |
|
Current - Average Rectified (Io) |
500mA |
|
Voltage - Forward (Vf) (Max) @ If |
630 mV @ 500 mA |
|
Speed |
Fast Recovery =< 500ns, > 200mA (Io) |
|
Reverse Recovery Time (trr) |
10 ns |
|
Current - Reverse Leakage @ Vr |
40 µA @ 45 V |
|
Capacitance @ Vr, F |
20pF @ 25V, 1MHz |
|
Mounting Type |
Surface Mount |
|
Package / Case |
TO-236-3, SC-59, SOT-23-3 |
|
Supplier Device Package |
SOT-23-3 |
|
Operating Temperature - Junction |
125°C (Max) |
|
Base Product Number |
ZHCS506 |

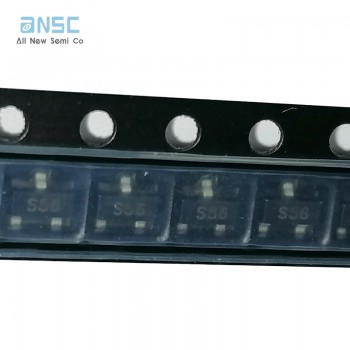

Actual image of the product
Product datasheet
For more information, please download
