One-Stop Supply Electronic component BOM LIST A2 smd zener diode MMBD4148W 4148 SOT-323
Manufacturer Product Number
MMBD4148W
Description
MMBD4148W Rectifier Diode 1 Element 0.15A 75V V(RRM) Silicon SOT-323 3 PIN
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Features • Fast Switching Speed • Ultra-Small Surface Mount Package • For General Purpose Switching Applications • High Conductance • Lead, Halogen and Antimony Free, RoHS Compliant "Green" Device (Notes 3, 4 and 5) • Qualified to AEC-Q101 Standards for High Reliability |
Product Description
| Type | Description |
| PART# | MMBD4148W |
| Ihs Manufacturer | Original |
| Part Package Code | SC-70 |
| Package Description | SOT-323, 3 PIN |
| Pin Count | 3 |
| Manufacturer Package Code | SOT323 |
| Samacsys Manufacturer | / |
| Configuration | SINGLE |
| Diode Element Material | SILICON |
| Diode Type | RECTIFIER DIODE |
| Forward Voltage-Max (VF) | 1.25 V |
| JESD-30 Code | R-PDSO-G3 |
| JESD-609 Code | e0 |
| Non-rep Pk Forward Current-Max | 2 A |
| Number of Elements | 1 |
| Number of Phases | 1 |
| Number of Terminals | 3 |
| Operating Temperature-Max | 150 °C |
| Output Current-Max | 0.15 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Qualification Status | Not Qualified |
| Rep Pk Reverse Voltage-Max | 75 V |
| Reverse Recovery Time-Max | 0.004 µs |
| Surface Mount | YES |
| Terminal Finish | TIN LEAD |
| Terminal Form | GULL WING |
| Terminal Position | DUAL |

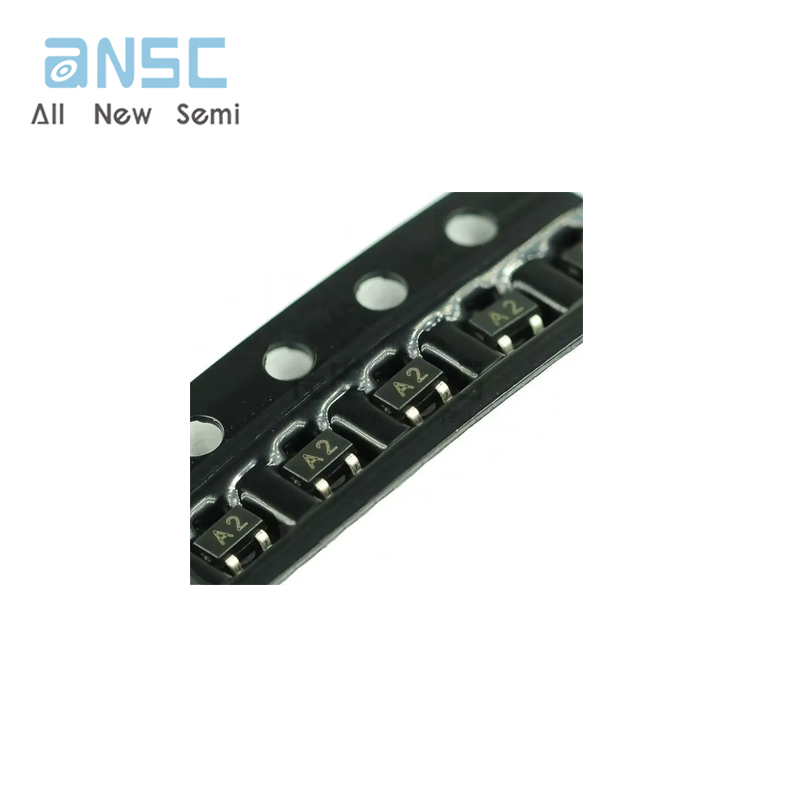

Actual image of the product
