Hot sale Original 1SMB5938BT3G DIODE ZENER 36V 3W SMB Zener Diode 36 V 3 W ±5% Surface Mount SMB
Manufacturer Product Number
1SMB5938BT3G
Description
Original 1SMB5938BT3G DIODE ZENER 36V 3W SMB Zener Diode 36 V 3 W ±5% Surface Mount SMB
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Product Description The 1SMB5938BT3G is a surface-mount zener diode designed for a wide range of applications. This diode features a breakdown voltage of 37.8V, making it suitable for use in various electronic circuits. With a forward voltage of 1.5V and a maximum power dissipation of 3W, this diode is capable of handling moderate power levels. Product Features · Zener Diode: The 1SMB5938BT3G is a unidirectional zener diode with a rated DC voltage of 36V. · Surface Mount: This diode is designed for surface-mount applications, making it easy to integrate into modern electronic designs. · Lead-Free and Halogen-Free: The diode is manufactured with lead-free and halogen-free materials, ensuring compliance with environmental regulations. · ESD Protection: The diode is designed with ESD protection, making it suitable for use in applications where electromagnetic interference is a concern. · Operating Temperature: The diode operates within a temperature range of -65°C to 150°C, making it suitable for use in a wide range of environments. Product Applications · Primary Applications: The 1SMB5938BT3G is suitable for use in power supplies, voltage regulators, and other applications where a stable voltage is required. · Secondary Applications: This diode can also be used in overvoltage protection circuits, surge protection, and other applications where a zener diode is required. |
Product Description
| Type | Description |
| ANSC PART# | ANSC -1SMB5938BT3G |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Zener | |
| Single Zener Diodes | |
| Mfr | Original |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part Status | Active |
| Voltage - Zener (Nom) (Vz) | 36 V |
| Tolerance | ±5% |
| Power - Max | 3 W |
| Impedance (Max) (Zzt) | 38 Ohms |
| Current - Reverse Leakage @ Vr | 1 µA @ 27.4 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 200 mA |
| Operating Temperature | -65°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB |
| Base Product Number | 1SMB5938 |

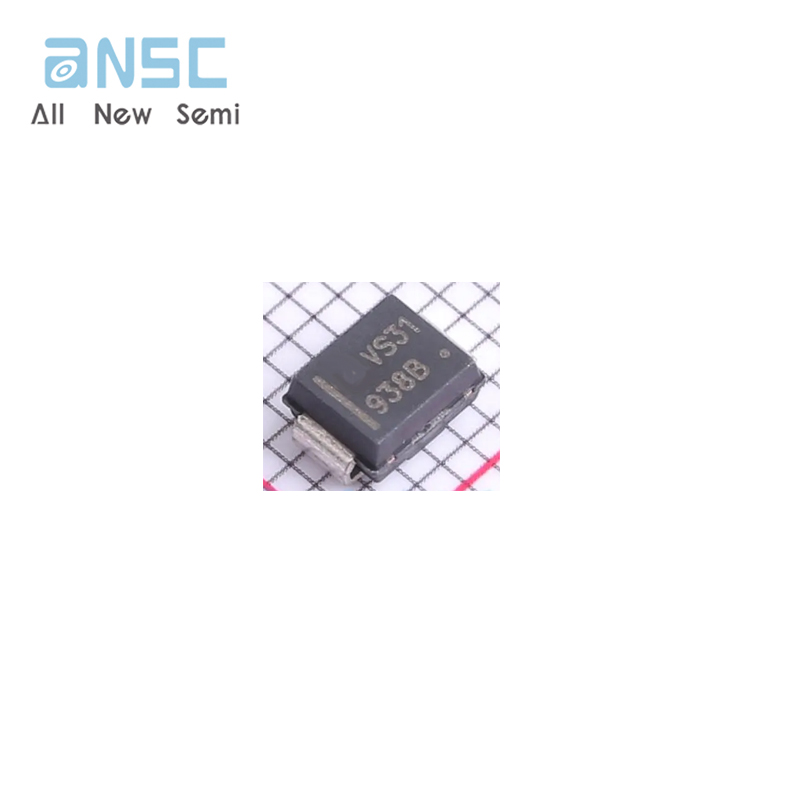

Product Photos

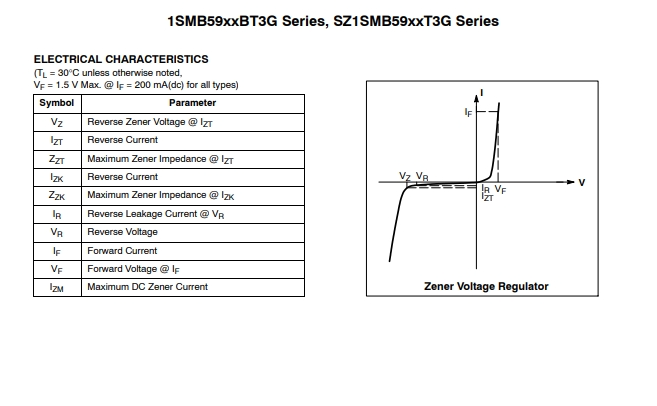

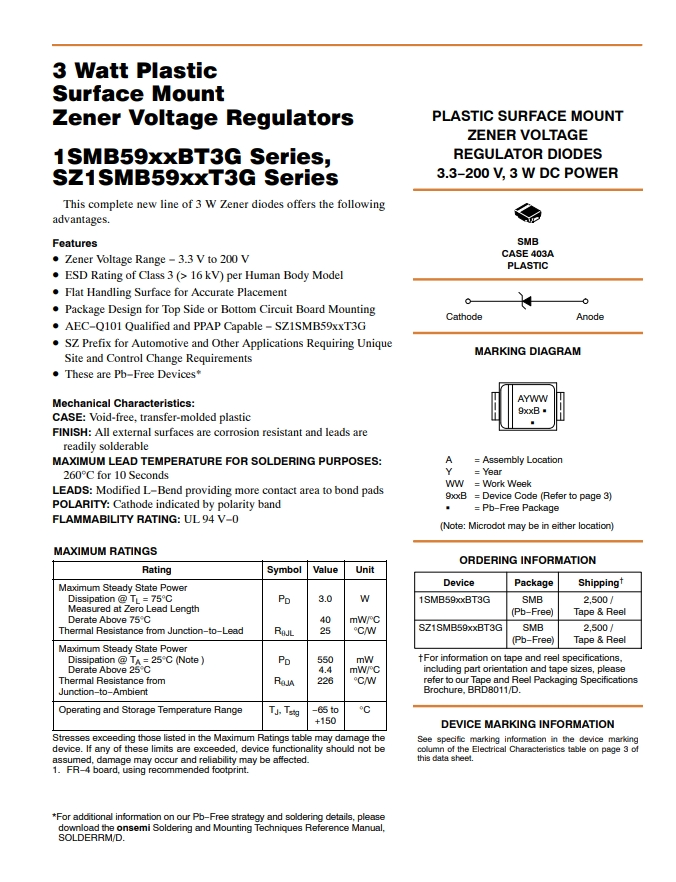

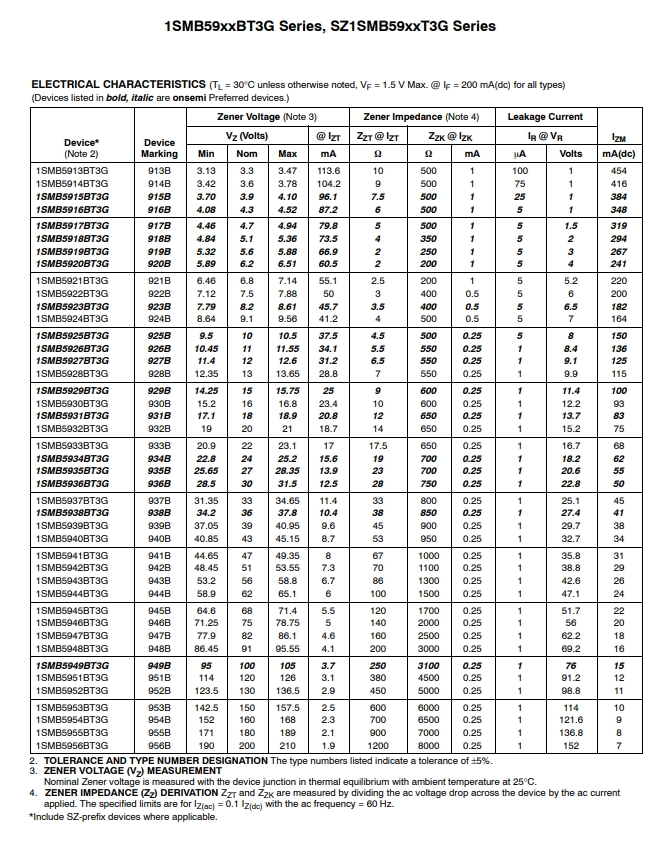

Product datasheet
For more information, please download
