Hot sale Original TPD4E1B06DCKR TVS DIODE 5.5VWM 14.5VC SC70-6 14.5V (Typ) Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount SC-70-6

Product Details

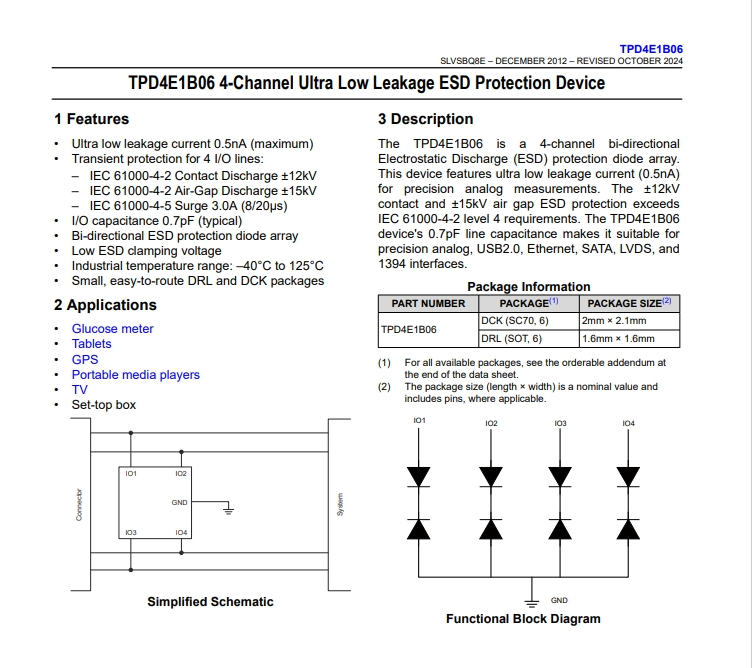

Description

The TPD4E1 B06 is a 4-channel bi-directional Transient Voltage Suppressor (TVS) diode array. This device features ultra low leakage current (0.5 nA) for precision analog measurements. The士12 kV contact and +15 kV air gap ESD protection exceeds IEC 61000-4-2 level 4 requirements. The TPD4E1 B06's 0.7 pF line capacitance makes it suitable for precision analog，USB2.0, Ethernet， SATA, LVDS，and 1394 interfaces.

Features

●Ultra Low Leakage Current 0.5 nA (Max)
●Transient Protection for 4 I/O Lines
- IEC 61000-4-2 Contact Discharge +12 kV
- IEC 61000-4-2 Air-Gap Discharge +15 kV
- IEC 61000-4-5 Surge 3.0 A (8/20 μs)
●I/O Capacitance 0.7 pF (Typ)
●Bi-directional TVS Diode Array
●Low ESD Clamping Voltage
●Industrial Temperature Range: - 40°C to 125°C
●Small, Easy-to-Route DRL and DCK Packages

Applications

●Glucose Meter
●Tablets
●GPS
●Portable Media Players
●TV
●Set-top Box

Product Description

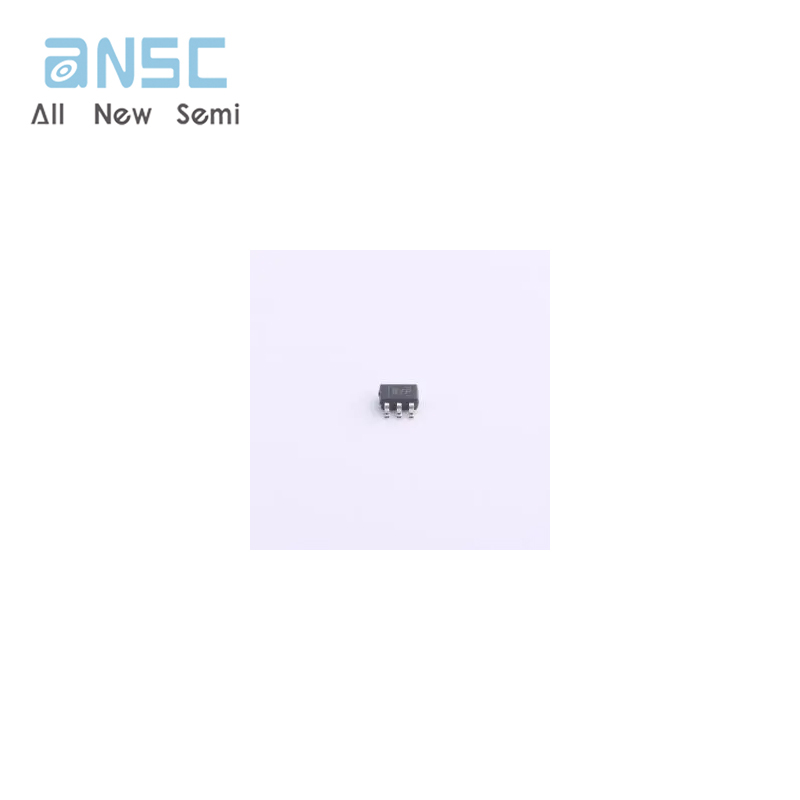

Actual image of the product

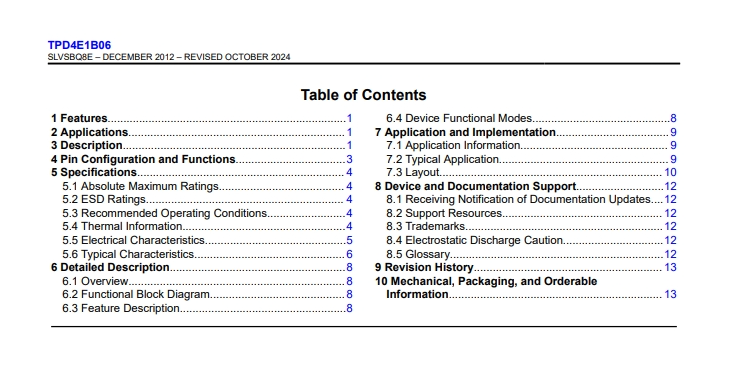

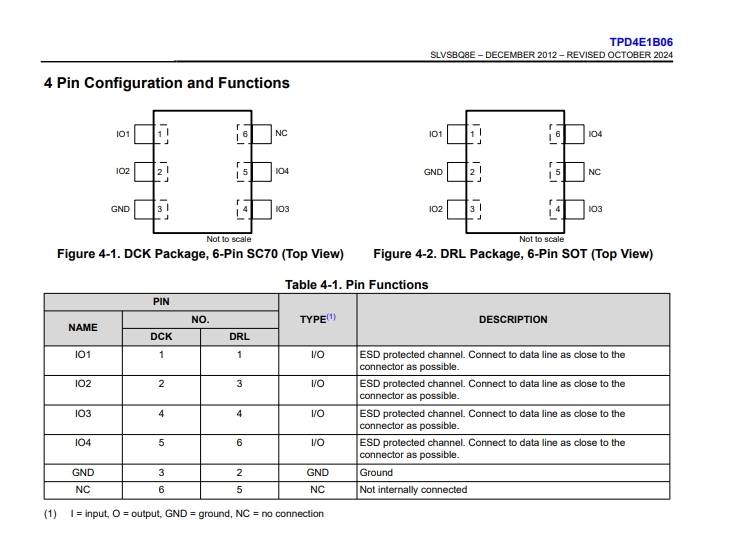

Product datasheet

For more information, please download
