Hot sale original GG040205100N2P TVS DIODE 5VWM 12VC 0402 12V Clamp 8A (8/20µs) Ipp Tvs Diode Surface Mount 0402 (1005 Metric)
Manufacturer Product Number
GG040205100N2P
Description
GG040205100N2P TVS DIODE 5VWM 12VC 0402 12V Clamp 8A (8/20µs) Ipp Tvs Diode Surface Mount 0402 (1005 Metric)
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Description The GG040205100N2P is a high-reliability, surface-mount bidirectional TVS (Transient Voltage Suppression) diode designed to protect electronic circuits from voltage spikes and transient surges. This component is part of the GiGUARD series, known for its low capacitance and robust protection capabilities. The GG040205100N2P is specifically engineered for general-purpose applications where reliable power line protection is not required. Features Low Capacitance: The GG040205100N2P features a low capacitance of 10pF, making it ideal for high-frequency applications. Bidirectional Protection: With a bidirectional configuration, this diode can protect against both positive and negative voltage transients. High Peak Pulse Current: The diode can handle a peak pulse current of up to 16A, ensuring robust protection against transient surges. High Operating Temperature: The operating temperature range is up to 125°C, making it suitable for use in harsh environments. Surface Mount Compatible: The component is designed for surface mount technology (SMT), facilitating easy integration into modern electronic assemblies. RoHS3 Compliant: The GG040205100N2P is compliant with RoHS3 regulations, ensuring environmental sustainability. Applications Primary Applications: 1. General Purpose Protection: The GG040205100N2P is suitable for general-purpose applications where transient voltage protection is necessary. 2. High-Frequency Circuits: Its low capacitance makes it ideal for high-frequency circuits where minimal parasitic capacitance is crucial. Secondary Applications: 1. Automotive Electronics: The diode's high operating temperature and robust construction make it suitable for automotive electronics applications. 2. Industrial Control Systems: It can be used in industrial control systems where reliable transient voltage protection is required. |
Product Description
| Type | Description |
| ANSC PART# | ANSC-GG040205100N2P |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | Original |
| Series | GiGUARD |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 5V |
| Voltage - Breakdown (Min) | 5.5V |
| Voltage - Clamping (Max) @ Ipp | 12V |
| Current - Peak Pulse (10/1000µs) | 8A (8/20µs) |
| Power - Peak Pulse | 96W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 10pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) |

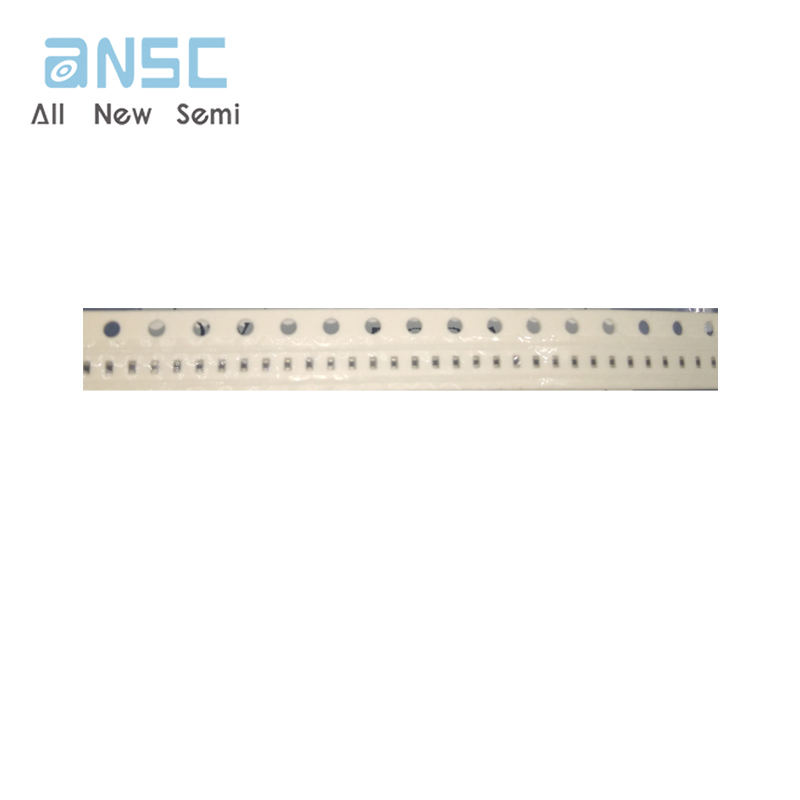

Actual image of the product

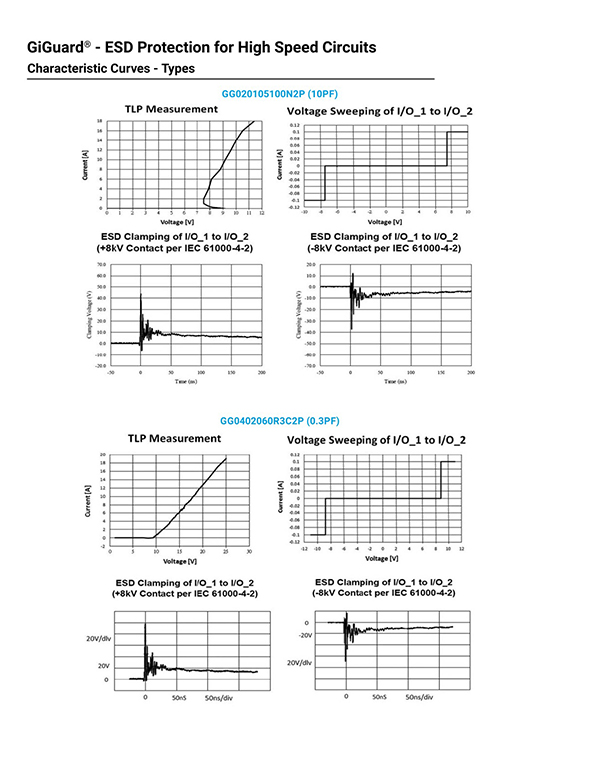

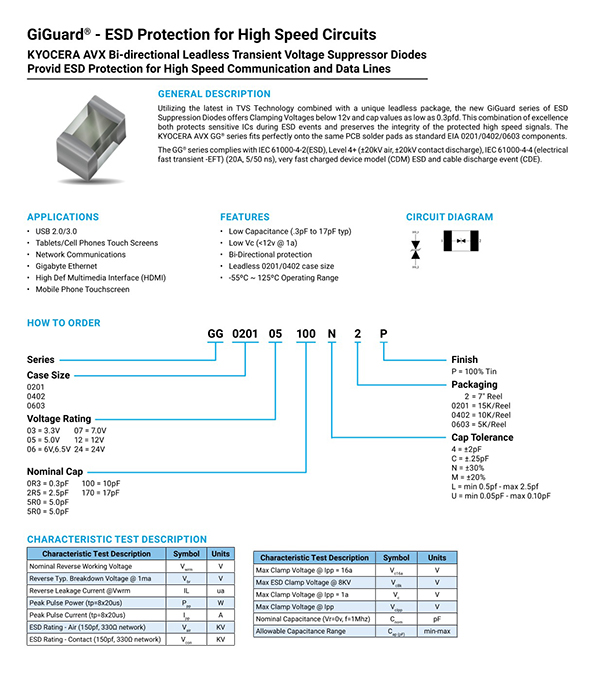

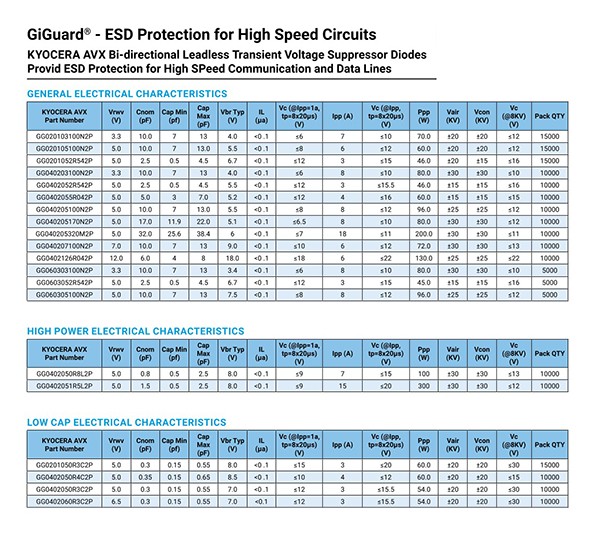

Product datasheet
For more information, please download
