Hot sale Original PESD18VF1BLYL TVS DIODE 18VWM 17VC DFN1006-2 17V Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount
Manufacturer Product Number
PESD18VF1BLYL
Description
PESD18VF1BLYL Diode 17V Clamp 1A (8/20µs) Ipp Tvs Diode Surface Mount
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| ESD protection diodes With their optimized diode structure, Philips’ ESD protection diodes offer a superior size / performance ratio with outstanding ESD protection of automotive electronics. A wide portfolio is available for protection of all interfaces in automotive electronics; from general line-protection for engine/body -controllers up to specific devices for protection of USB-interfaces or antenna-inputs in car entertainment applications. Key features - Excellent ESD clamping performance - Ultra low leakage current - Low device capacitance - ESD protection up to 30 kV - IEC 61000-4-2, level 4 compliant (8 kV contact, 15 kV air discharge) Key benefits - Optimized diode structure for best-in-class ESD protection of today’s sensitive car electronics - Low clamping voltages and fast response times ensure optimal protection - Ultra low leakage current helps to reduce overall power consumption - Low device capacitance keeps unwanted disturbances in the circuits to a minimum Key applications - Data and audio interfaces, e.g. car multimedia line protection - Overvoltage protection, e.g. airbag controllers - Car drivers interface protection, e.g. dashboard panels - CAN and LIN bus protection |
Product Description
| Type# | Description |
| ANSC PART# | ANSC -PESD18VF1BLYL |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | / |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 18V (Max) |
| Voltage - Breakdown (Min) | 19V |
| Voltage - Clamping (Max) @ Ipp | 17V |
| Current - Peak Pulse (10/1000碌s) | 1A (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | RF Antenna |
| Capacitance @ Frequency | 0.35pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOD-882 |
| Supplier Device Package | DFN1006-2 |
| Base Product Number | PESD18 |

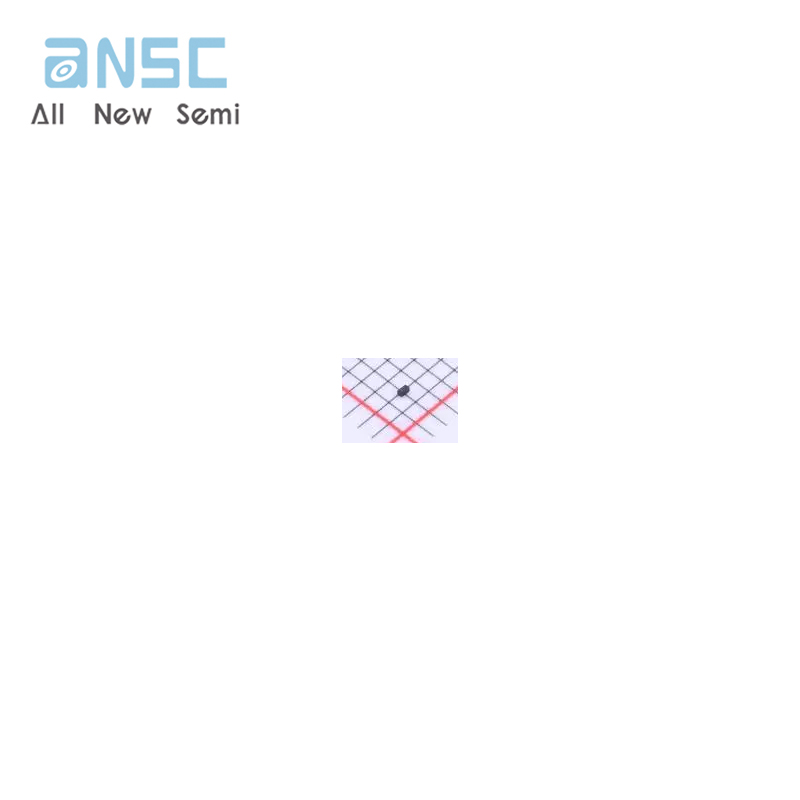

Actual image of the product

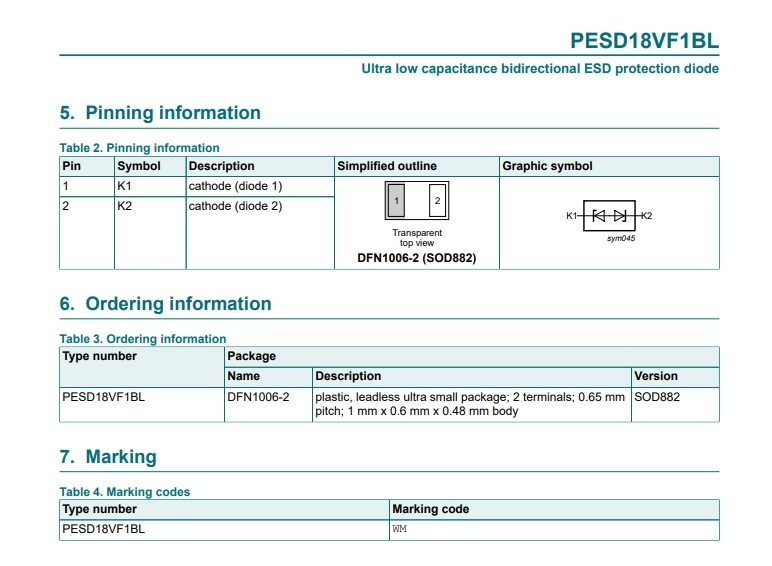

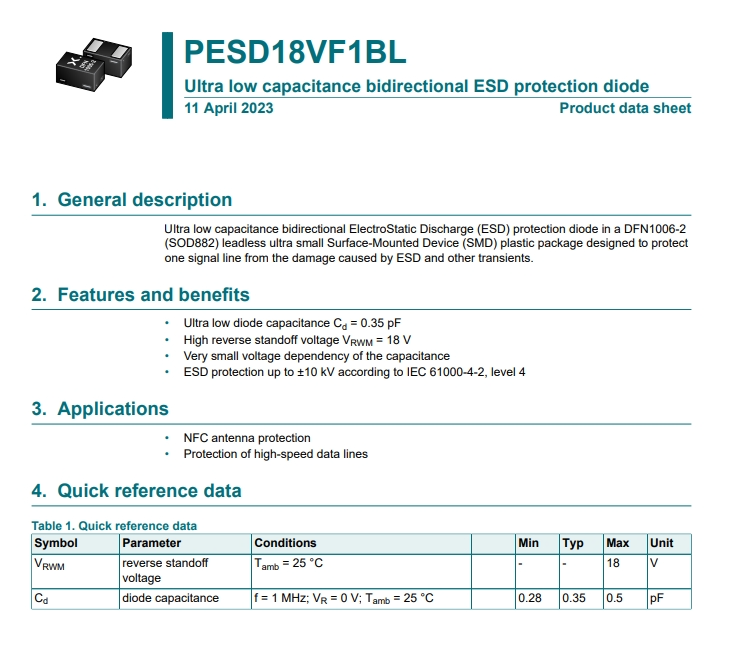

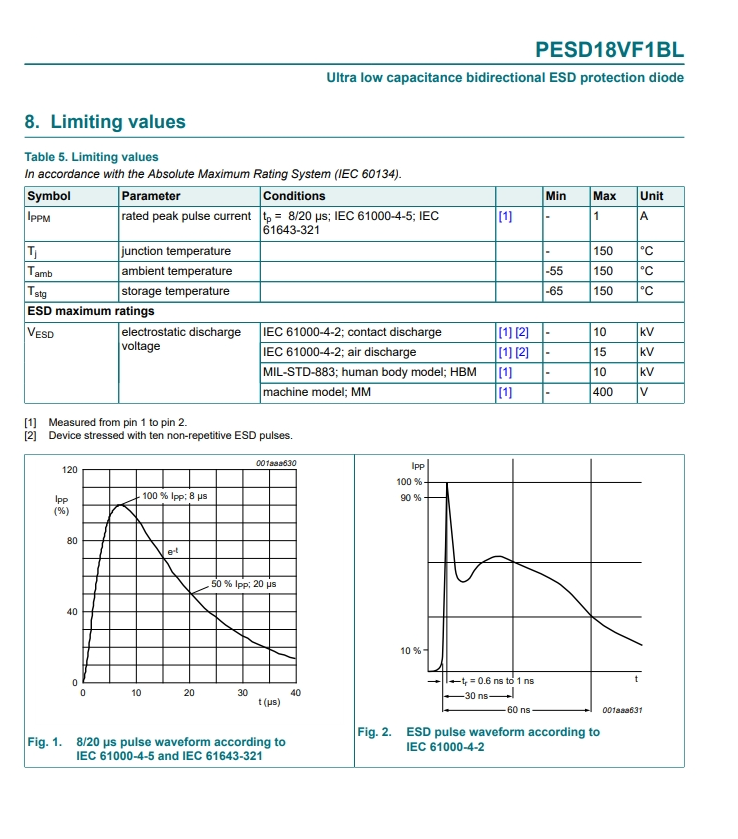

Product datasheet
For more information, please download
