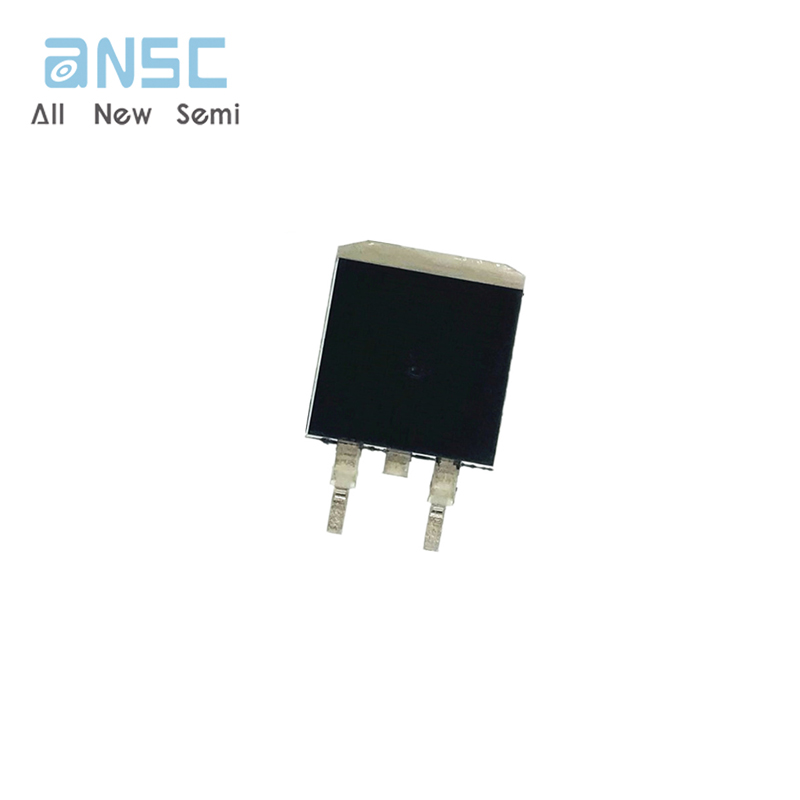

New 47CTQ020S In stock Best price ic chips Hot sale 47CTQ020S original IC Electronic component
Manufacturer Product Number
47CTQ020S
Description
Diodes
Package Condition
TUBE
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Product Description: The 47CTQ020S is a Schottky diode array manufactured by Vishay Semiconductor Diodes Division. It is a common cathode configuration diode array designed for surface mount applications. The diode is packaged in a TO-263-3, D2Pak (2 Leads + Tab), TO-263AB package and is available in a tube packaging. Features: Fast recovery time: <= 500ns High current rating: 40A Low forward voltage drop: 450mV @ 20A Low reverse leakage current: 3mA @ 20V High surge current rating: 1kA Operating temperature range: -55°C to 150°C Moisture sensitivity level: 1 (unlimited) RoHS non-compliant Application Grade: The 47CTQ020S is designed for high-current, high-voltage applications such as: Power supplies Switching power supplies Motor control Automotive electronics Industrial control Applications: Power factor correction (PFC) circuits DC-DC converters AC-DC converters Motor drives Automotive battery management systems Industrial automation systems Key Information: Diode type: Schottky Configuration: 1 pair common cathode Current rating: 40A Reverse voltage: 20V Forward voltage drop: 450mV @ 20A Reverse leakage current: 3mA @ 20V Surge current rating: 1kA Operating temperature range: -55°C to 150°C Package: TO-263-3, D2Pak (2 Leads + Tab), TO-263AB Packaging: Tube Lead-free: Contains lead RoHS status: Non-RoHS compliant Part status: Obsolete |
Product Description
| Type# | Description |
| PART# | 47CTQ020S |
| Ihs Manufacturer | - |
| Part Package Code | TO-263 |
| Package Description | D2PAK-3 |
| Pin Count | 3 |
| Application | GENERAL PURPOSE |
| Case Connection | CATHODE |
| Configuration | COMMON CATHODE, 2 ELEMENTS |
| Diode Element Material | SILICON |
| Diode Type | RECTIFIER DIODE |
| Forward Voltage-Max (VF) | 0.5 V |
| Moisture Sensitivity Level | 1 |
| Non-rep Pk Forward Current-Max | 1000 A |
| Number of Elements | 2 |
| Number of Phases | 1 |
| Number of Terminals | 2 |
| Operating Temperature-Max | 150 °C |
| Output Current-Max | 20 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 225 |
| Qualification Status | Not Qualified |
| Rep Pk Reverse Voltage-Max | 20 V |
| Surface Mount | YES |
| Technology | SCHOTTKY |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Terminal Form | GULL WING |
| Terminal Position | SINGLE |
| Time@Peak Reflow Temperature-Max (s) | 30 |
