Hot sale Original BZX84C5V6LT1G DIODE ZENER 5.6V 250MW SOT23-3 Zener Diode 5.6 V 225 mW ±7%
Manufacturer Product Number
BZX84C5V6LT1G
Description
BZX84C5V6LT1G DIODE ZENER 5.6V 250MW SOT23-3 Zener Diode 5.6 V 225 mW ±7% Surface Mount SOT-23-3 (TO-236)
Package Condition
Tape & Reel (TR)Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Voltage Regulators 225 mW SOT−23 Surface Mount This series of Zener diodes is offered in the convenient, surface mount plastic SOT−23 package. These devices are designed to provide voltage regulation with minimum space requirement. They are well suited for applications such as cellular phones, hand held portables, and high density PC boards. Features • 225 mW Rating on FR−4 or FR−5 Board • Zener Breakdown Voltage Range − 2.4 V to 75 V • Package Designed for Optimal Automated Board Assembly • Small Package Size for High Density Applications • ESD Rating of Class 3 (>16 KV) per Human Body Model • Tight Tolerance Series Available (See Page 4) • Pb−Free Packages are Available |
Product Description
| TYPE | DESCRIPTION |
| ANSC PART# | ANSC - BZX84C5V6LT1G |
| category | Discrete semiconductor products |
| diode | |
| Zener | |
| Single Zener diode | |
| manufacturer | Original |
| series | BZX84CxxxLT1G |
| wrap | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Part status | Sale |
| Voltage - Zener (nominal) (Vz) | 5.6 V |
| Tolerance | ±7% |
| Power - maximum | 225 mW |
| Impedance (max) (Zzt) | 40 Ohms |
| Current at different Vr - reverse leakage | 1 µA @ 2 V |
| Voltage at different if - forward (Vf) | 900 mV @ 10 mA |
| Operating temperature | -65°C ~ 150°C(TJ) |
| Installation type | Surface mount type |
| Package/Case | TO-236-3,SC-59,SOT-23-3 |
| Supplier device package | SOT-23-3(TO-236) |
| Basic product number | BZX84C5 |

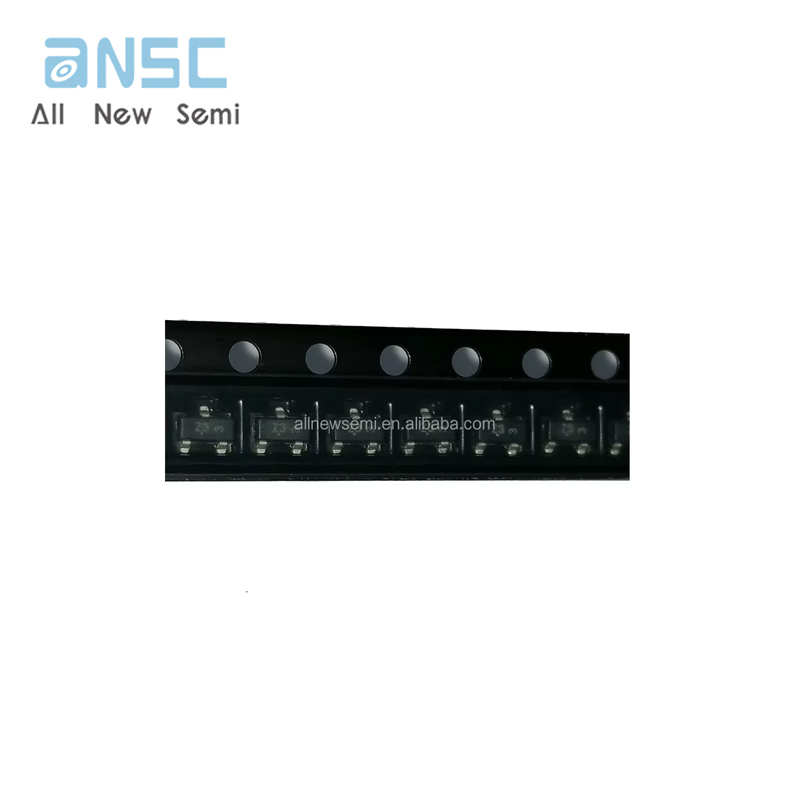

Product Photos

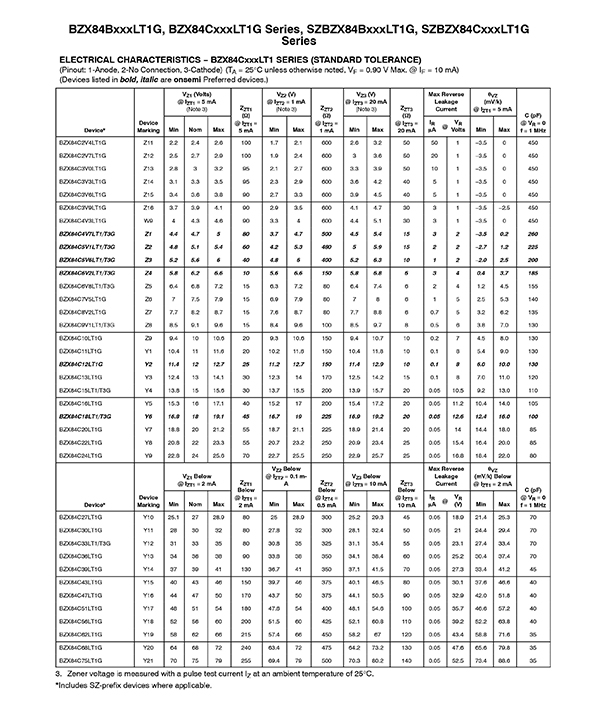

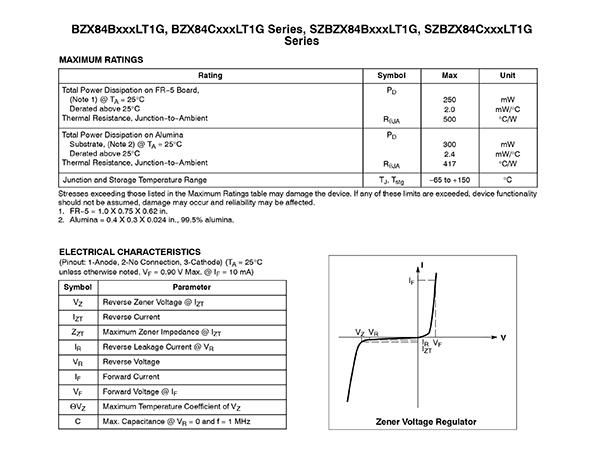

Product datasheet
