Hot-selling and scarce HD01-T 0.8A GLASS PASSIVATED BRIDGE RECTIFIER SMD spot stock
Manufacturer Product Number
HD01-T
Description
HD01-T 0.8A GLASS PASSIVATED BRIDGE RECTIFIER SMD spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
Glass Passivated Die Construction
Low Forward Voltage Drop
Surge Overload Rating to 30A Peak
Ideally Suited for Automatic Assembly
Miniature Package Saves Space on PC Boards
Product Specification
| Attribute | Attribute value |
| ANSM-Part# | ANSM-HD01-T |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Bridge Rectifiers | |
| Manufacturer | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 100 V |
| Current - Average Rectified (Io) | 800 mA |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 400 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 100 V |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-MiniDIP |
| Base Product Number | HD01 |

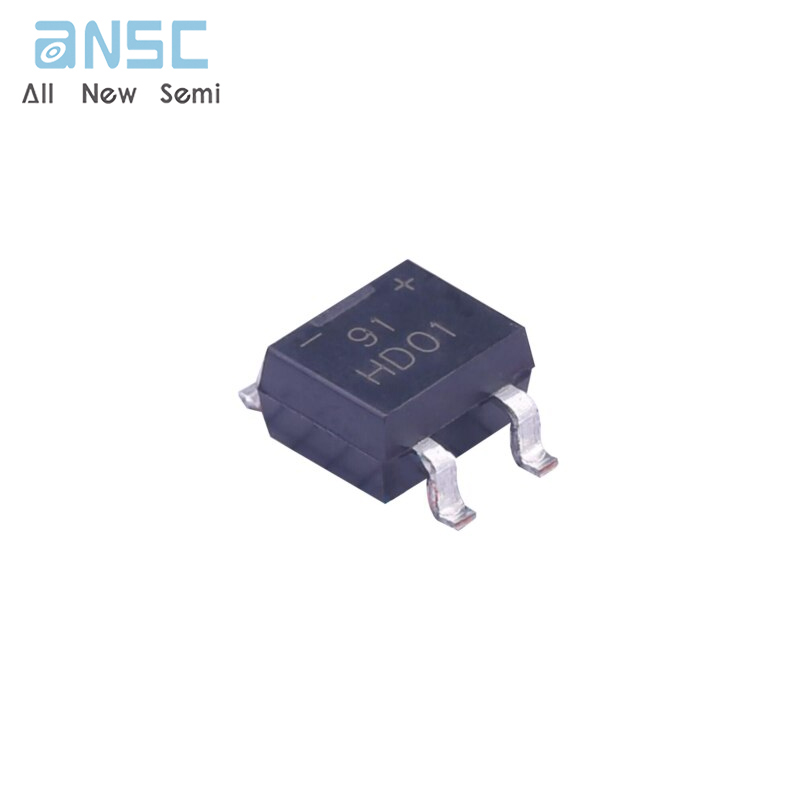

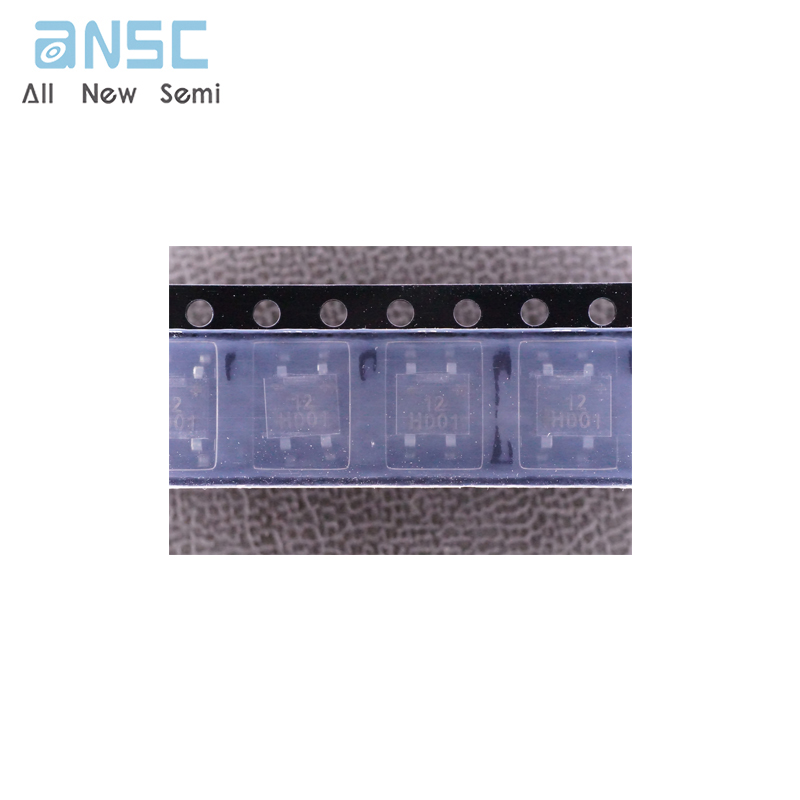

Product Photos
For more product information, please download the PDF
