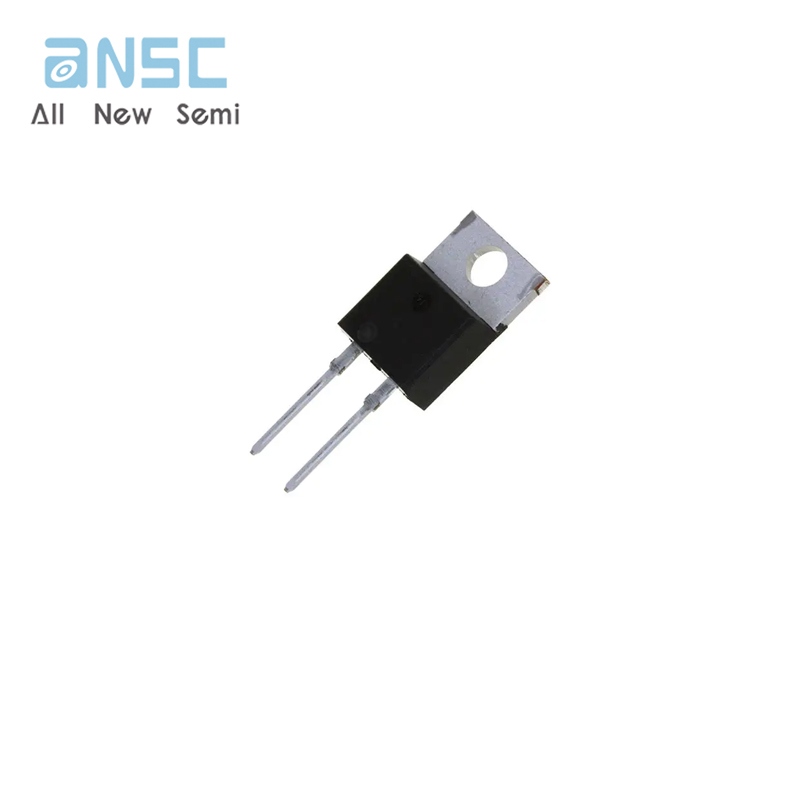

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot sale Original MBR10100G DIODE SCHOTTKY 100V 10A TO220-2 Rectifiers Single Diodes Through Hole TO-220-2
Manufacturer Product Number
MBR10100G
Description
Original MBR10100G DIODE SCHOTTKY 100V 10A TO220-2 Rectifiers Single Diodes Through Hole TO-220-2
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
The MBR10100G is a high-performance Schottky rectifier diode designed for use in a wide range of applications, including power supplies, motor control, and telecommunications. This diode features a high average rectified current of 10A, making it suitable for demanding applications where high current handling is required.
Product Features
High average rectified current of 10A
Breakdown voltage of 100V
Fast recovery time of less than 500ns
High surge current handling of 150A
Operating temperature range of -65°C to 175°C
Available in a TO-220-2 package with a lead-free tin plating
Compliant with ROHS3 and REACH SVHC regulations
Product Applications
Power supplies
Motor control systems
Telecommunications equipment
Automotive electronics
Industrial control systems
Product Description
| Type | Description |
| ANSC PART# | ANSC- MBR10100G |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | - |
| Series | SWITCHMODE™ |
| Packaging | Tube |
| Part Status | Active |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Current - Average Rectified (Io) | 10A |
| Voltage - Forward (Vf) (Max) @ If | 800 mV @ 10 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 100 µA @ 100 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-2 |
| Supplier Device Package | TO-220-2 |
| Operating Temperature - Junction | -65°C ~ 175°C |
| Base Product Number | MBR1010 |
Actual image of the product
