Hot sale Original DAN217U Rectifier Diode, 2 Element, 0.1A, 80V V(RRM), Silicon, UMD3, SC-70, 3 PIN
Manufacturer Product Number
DAN217U
Description
DAN217U Rectifier Diode, 2 Element, 0.1A, 80V V(RRM), Silicon, UMD3, SC-70, 3 PIN
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Features
1) Small surface mounting type. (UMD3, SMD3)
2) Tow diode elements are connected in series (VF x 2) per circuit.
Application
Ultra high speed switching
Product Description
| Type# | Description |
| ANSC PART# | ANSC- DAN217U |
| Ihs Manufacturer | Original |
| Part Package Code | SC-70 |
| Package Description | UMD3, SC-70, 3 PIN |
| Pin Count | 3 |
| Configuration | SERIES CONNECTED, CENTER TAP, 2 ELEMENTS |
| Diode Element Material | SILICON |
| Diode Type | RECTIFIER DIODE |
| Forward Voltage-Max (VF) | 1.2 V |
| Moisture Sensitivity Level | 1 |
| Non-rep Pk Forward Current-Max | 4000 A |
| Number of Elements | 2 |
| Number of Terminals | 3 |
| Operating Temperature-Max | 150 °C |
| Output Current-Max | 0.1 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Shape | RECTANGULAR |
| Package Style | SMALL OUTLINE |
| Peak Reflow Temperature (Cel) | 260 |
| Power Dissipation-Max | 0.2 W |
| Qualification Status | Not Qualified |
| Rep Pk Reverse Voltage-Max | 80 V |
| Reverse Recovery Time-Max | 0.004 µs |
| Surface Mount | YES |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) |
| Terminal Form | GULL WING |
| Terminal Position | DUAL |
| Time@Peak Reflow Temperature-Max (s) | 30 |

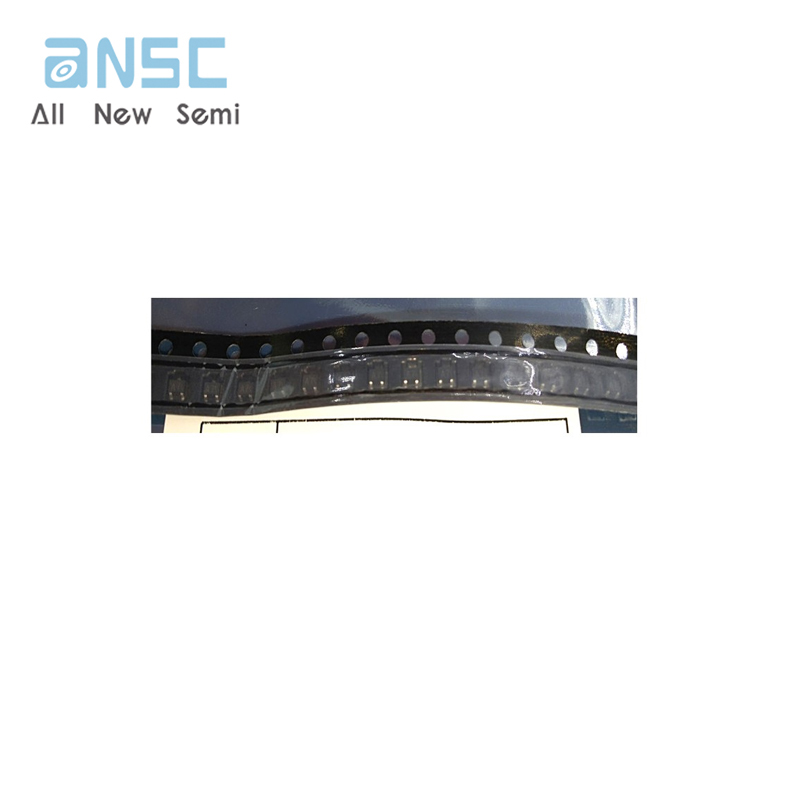

Actual image of the product

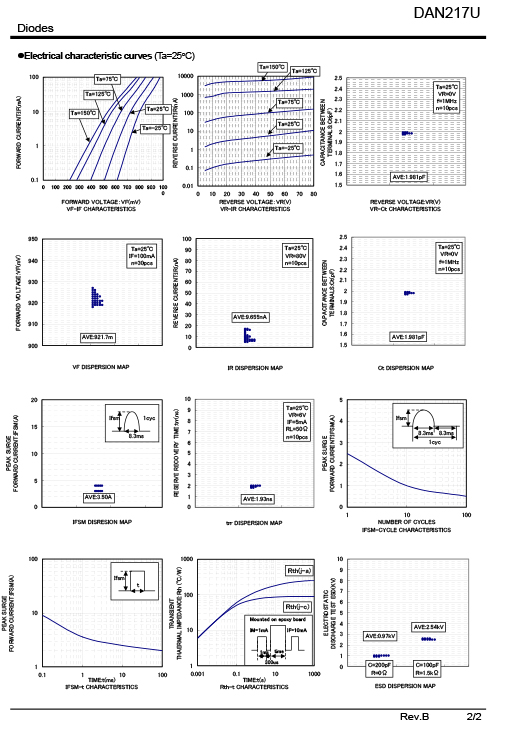

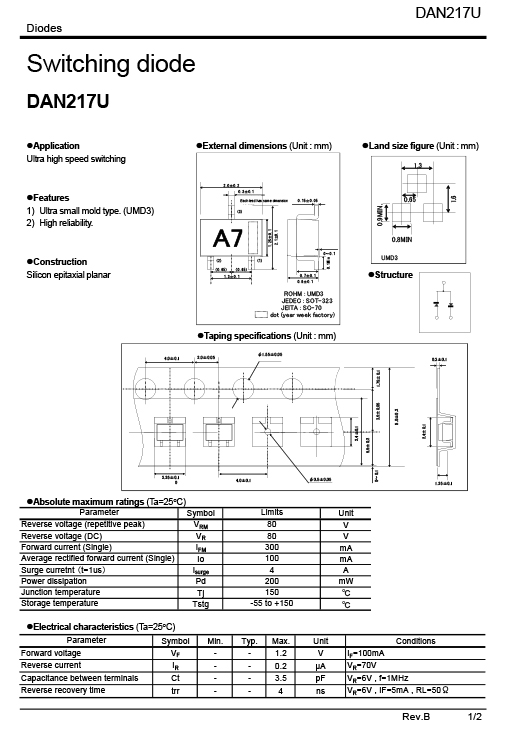

Product datasheet
