Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot sale original 1N5614 DIODE STANDARD 200V 1A AXIAL Diode 200 V 1A Through Hole A, Axial
Manufacturer Product Number
1N5614
Description
1N5614 Diode 200 V 1A Through Hole A, Axial
Package Condition
Bulk
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| 1N5614 Overview Surge current can reach maximum value 30 A.On the data sheets, the peak reverse is indicated by the data chart as 0.5(uA). 1N5614 Featuresthe peak reverse is 0.5(uA) 1N5614 Applications 1N5614 applications of single-phase diode rectifier. DC motor control and drives Battery chargers Welders Power converters Reverse Polarity Protection Ultra High-Speed Switching Freewheeling Polarity Protection Diode Recirculating Diode Switching Diode |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - 1N5614 |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | / |
| Series | - |
| Packaging | Bulk |
| Part Status | Active |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 3 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 2 µs |
| Current - Reverse Leakage @ Vr | 500 nA @ 200 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | A, Axial |
| Supplier Device Package | A, Axial |
| Operating Temperature - Junction | -65°C ~ 200°C |
| Base Product Number | 1N5614 |

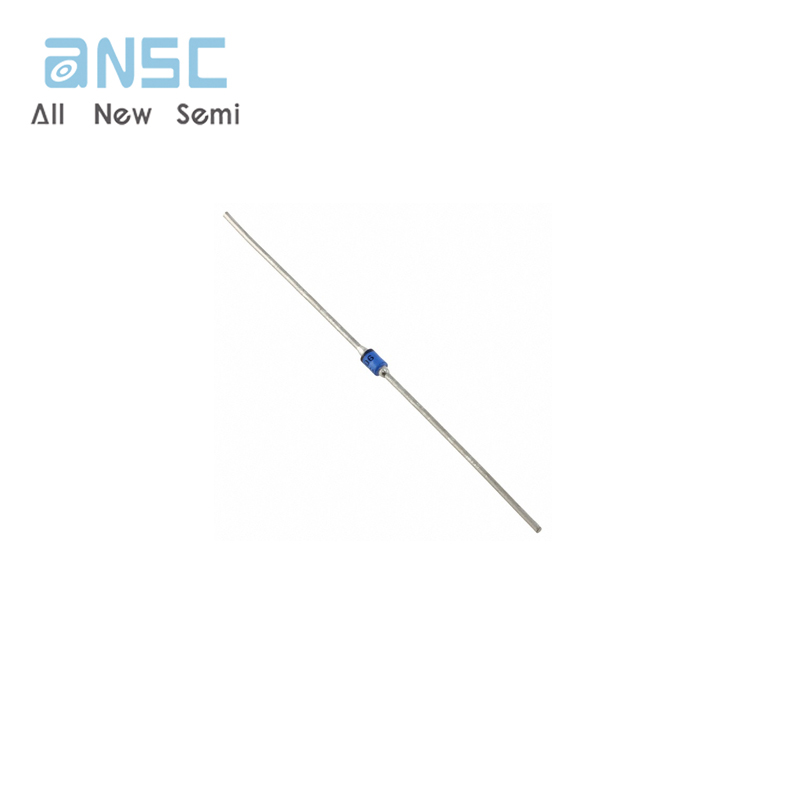

Actual image of the product

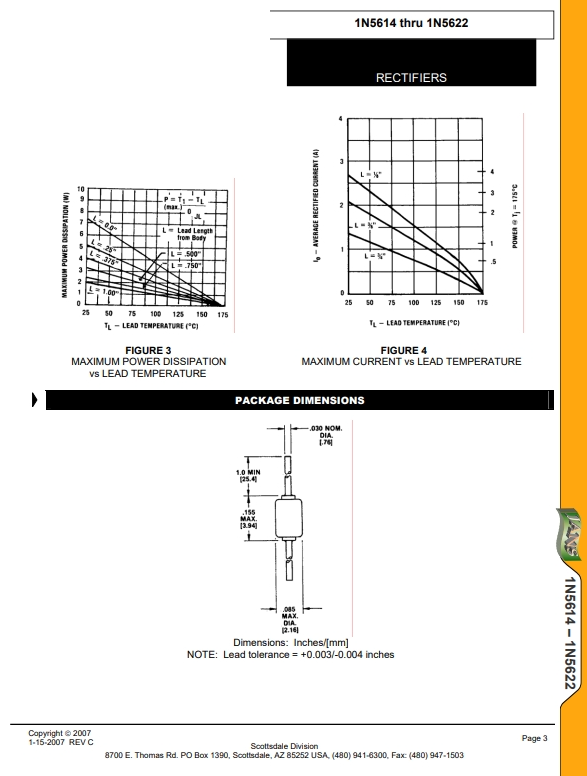

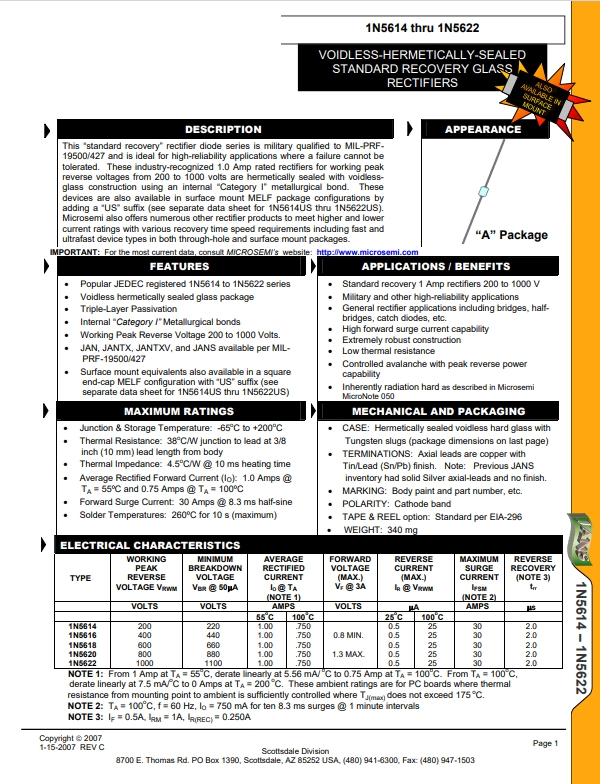

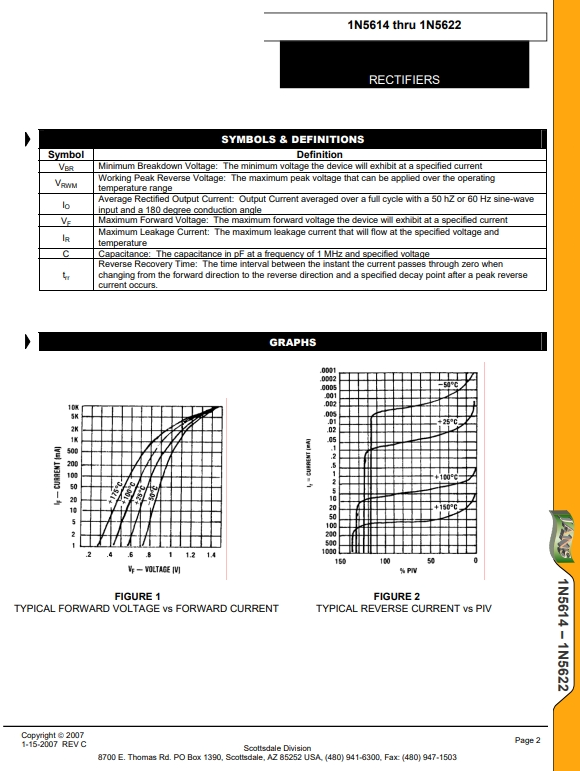

Product datasheet
For more information, please download
