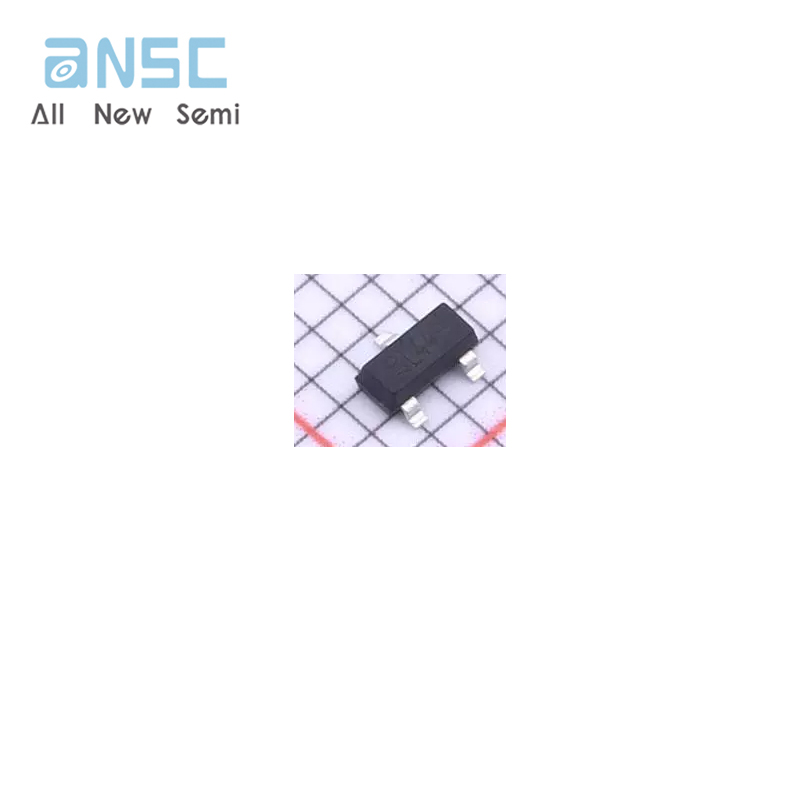

Hot sale Original BAT54S-E3-08 Diode Array 1 Pair Series Connection 30 V 200mA (DC) Surface Mount TO-236-3
Manufacturer
Manufacturer Product Number
BAT54S-E3-08
Description
Original BAT54S-E3-08 Diode Array 1 Pair Series Connection 30 V 200mA (DC) Surface Mount TO-236-3, SC-59, SOT-23-3
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Product Overview Devices that have a forward voltage of 800mV will operate.The maximum output voltage is 0.2A.Devices that have a forward voltage of 200mA will operate.This device has a capacitance of about 10pF farads.The reverse voltage peak of this device is 2μA.As a derivative of its primary action, this electronic or electrical device generates 230mW of heat. Product Features 800mV forward voltage a maximum output voltage of 0.2A 10pF farads a peak voltage of 2μA a reverse voltage peak of 2μA Product Applications BAT54S-E3-08 applications of rectifier diode array. · Rectifier for drives applications · Crowbar applications · Rectifiers for UBS · Battery chargers · Rectifiers in switch mode power supplies (SMPS) · Free wheeling diode in low voltage converters · General Rectification |
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - BAT54S-E3-08 |
|
Category |
Discrete Semiconductor Products Diodes Rectifiers Diode Arrays |
|
Manufacturer |
/ |
|
Series |
- |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Diode Configuration |
1 Pair Series Connection |
|
Technology |
Schottky |
|
Voltage - DC Reverse (Vr) (Max) |
30 V |
|
Current - Average Rectified (Io) (per Diode) |
200mA (DC) |
|
Voltage - Forward (Vf) (Max) @ If |
800 mV @ 100 mA |
|
Speed |
Small Signal =< 200mA (Io), Any Speed |
|
Reverse Recovery Time (trr) |
5 ns |
|
Current - Reverse Leakage @ Vr |
2 µA @ 25 V |
|
Operating Temperature - Junction |
125°C (Max) |
|
Mounting Type |
Surface Mount |
|
Package / Case |
TO-236-3, SC-59, SOT-23-3 |
|
Supplier Device Package |
SOT-23-3 |
|
Base Product Number |
BAT54 |
