Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot sale original MOC3020M OPTOISOLATOR 4.17KV TRIAC 6DIP Optoisolator Triac Output 4170Vrms 1 Channel 6-DIP Triac
Manufacturer Product Number
MOC3020M
Description
MOC3020M OPTOISOLATOR 4.17KV TRIAC 6DIP Optoisolator Triac Output 4170Vrms 1 Channel 6-DIP Triac, SCR Output Optoisolators
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| FEATURES * Isolation voltage between input and output Viso : 5,000Vrms January 2010 * 6pin DIP photocoupler, triac driver output * High repetitive peak off-state voltage VDRM : Min. 400V * High critical rate of rise of off-state voltage ( dV/dt : MIN. 100V / µs ) * Dual-in-line package : MOC3020, MOC3021, MOC3022, MOC3023 * Wide lead spacing package : MOC3020M, MOC3021M, MOC3022M, MOC3023M * Surface mounting package : MOC3020S, MOC3021S, MOC3022S, MOC3023S * Tape and reel packaging : MOC3020S-TA1, MOC3021S-TA1, MOC3022S-TA1, MOC3023S-TA1 * Safety approval UL / CSA / FIMKO / VDE* approved *Required “V” ordering option APPLICATIONS * Motor Controls * Solid state relays * For triggering high power thyristor and triac * Household use equipment |
Product Description
| Type | Description |
| ANSC PART# | ANSC- MOC3020M |
| Category | Isolators |
| Optocouplers, Optoisolators | |
| Triac, SCR Output Optoisolators | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Output Type | Triac |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 4170Vrms |
| Voltage - Off State | 400 V |
| Static dV/dt (Min) | - |
| Current - LED Trigger (Ift) (Max) | 30mA |
| Current - Hold (Ih) | 100µA (Typ) |
| Turn On Time | - |
| Voltage - Forward (Vf) (Typ) | 1.15V |
| Current - DC Forward (If) (Max) | 60 mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP (0.300", 7.62mm) |
| Supplier Device Package | 6-DIP |
| Approval Agency | UL |
| Base Product Number | MOC302 |

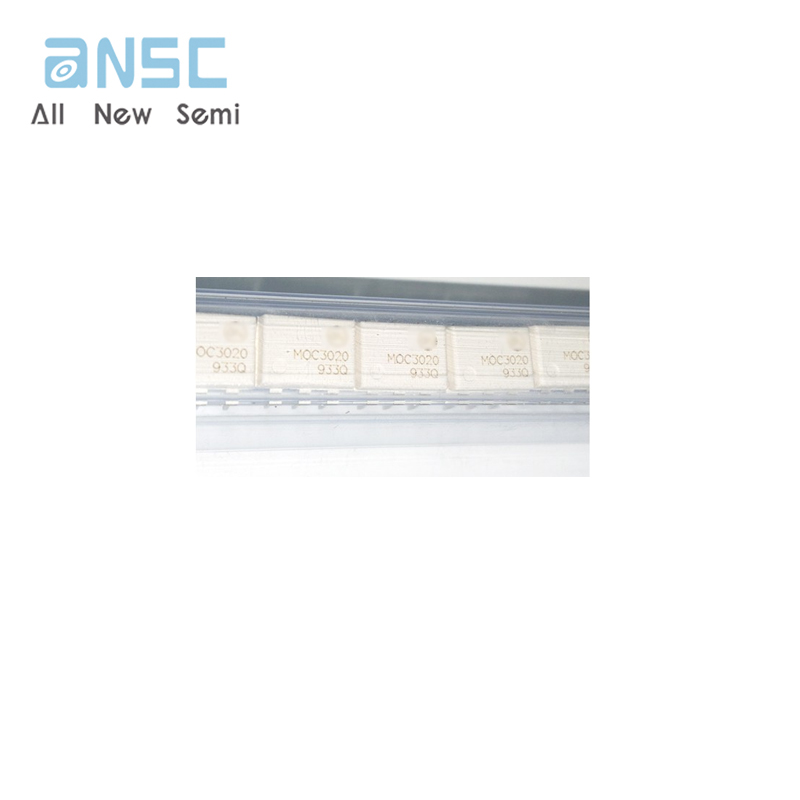

Actual image of the product

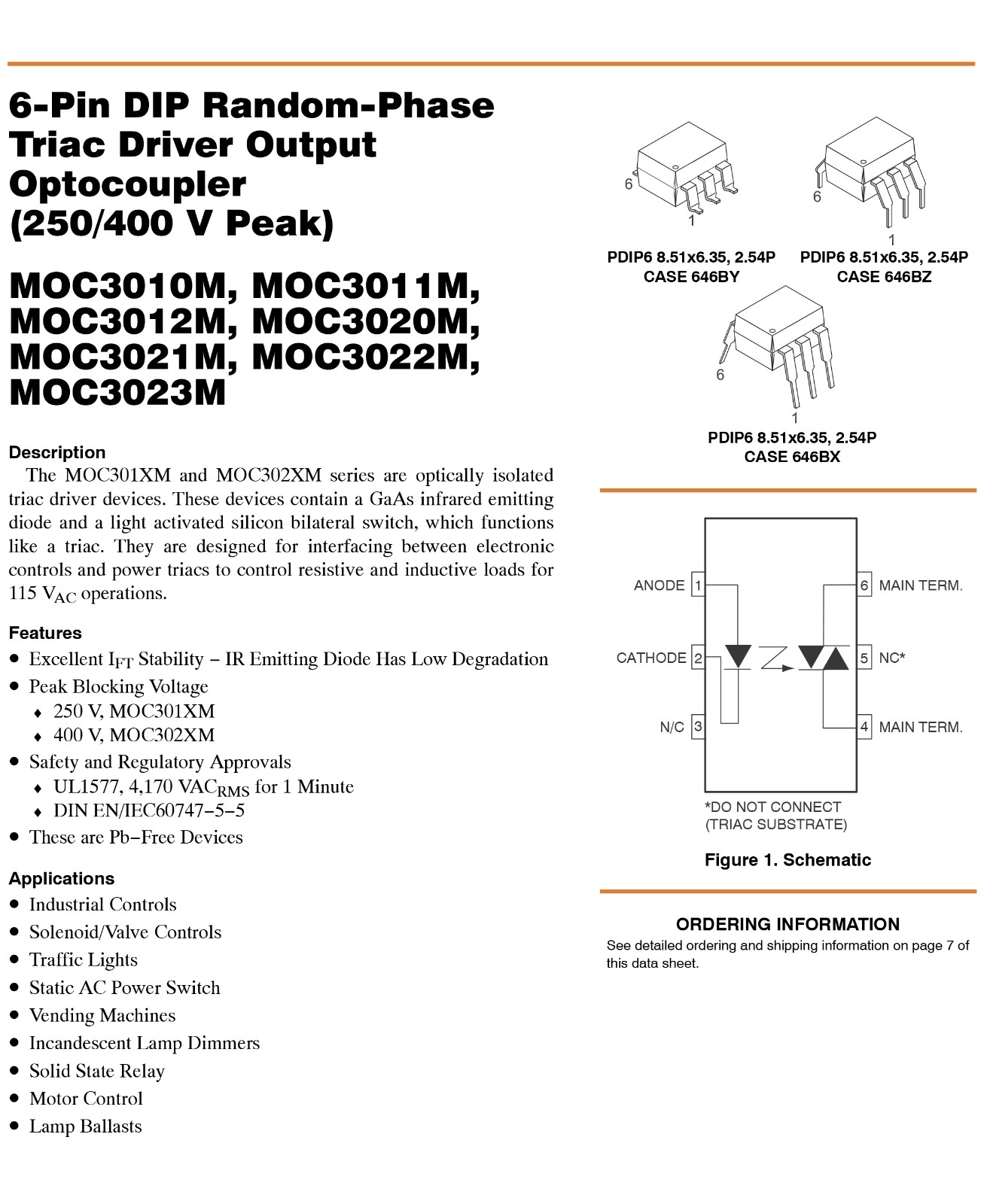

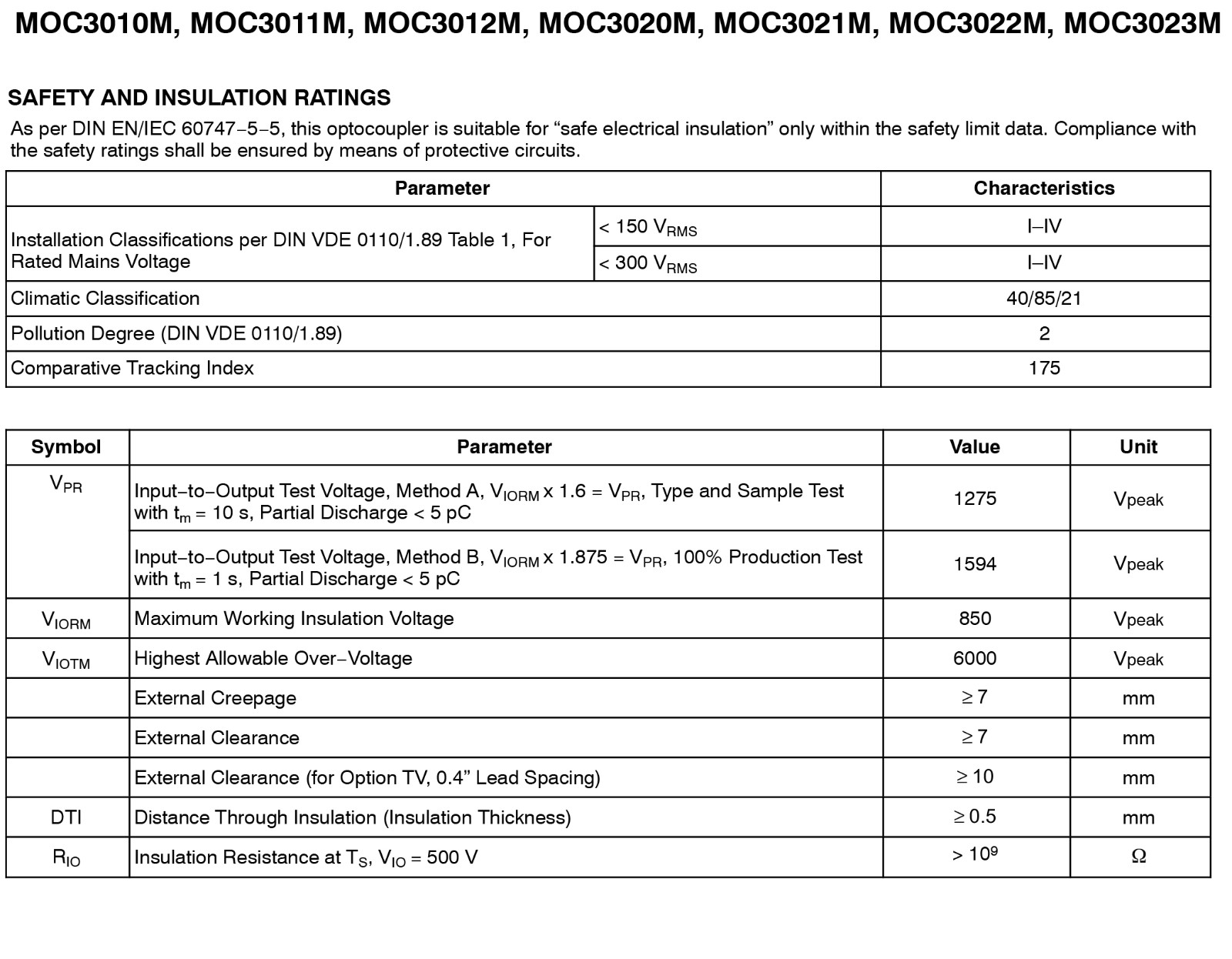

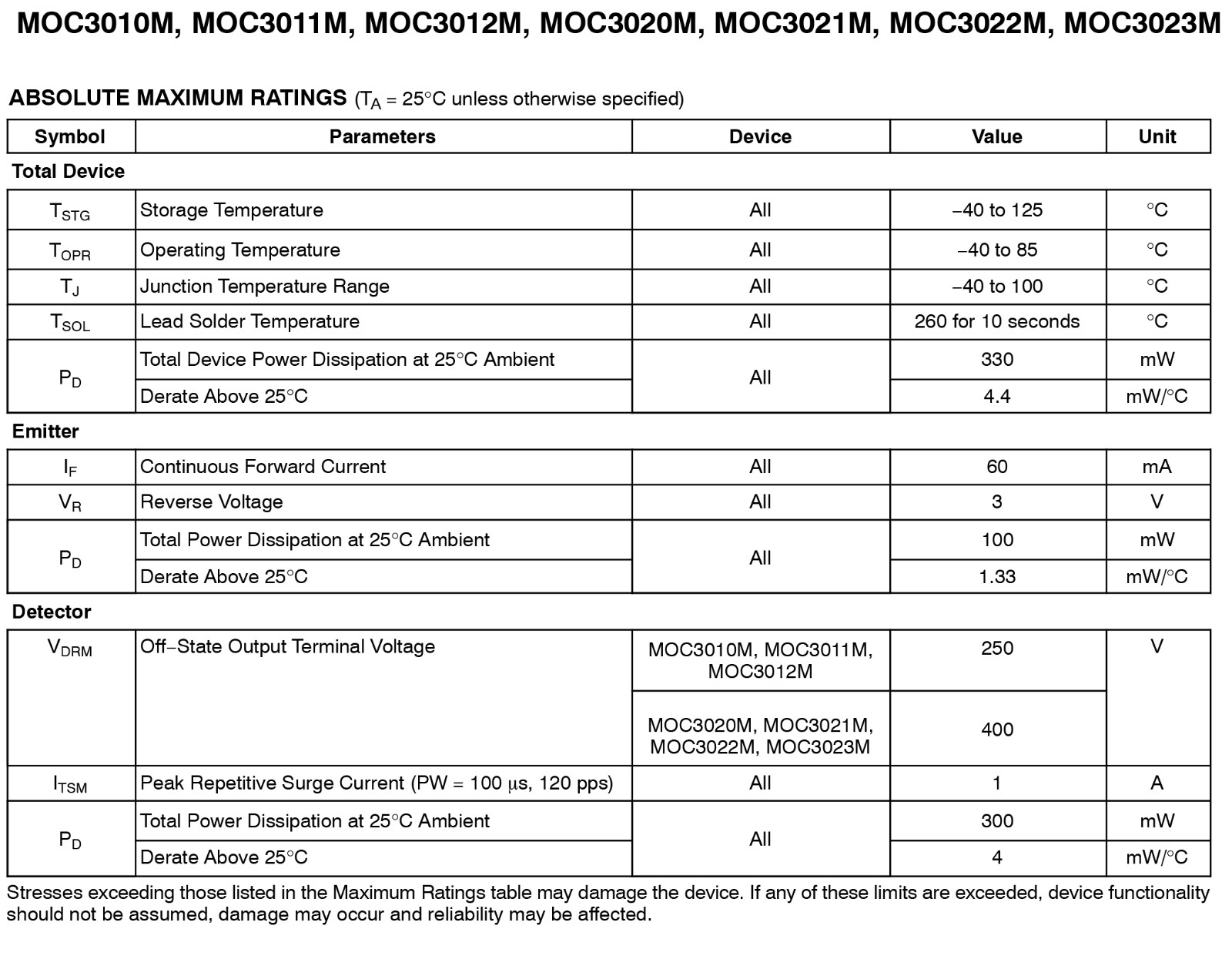

Product datasheet
For more information, please download
