You can contact me for the best price STTH1506DPI Rectifiers Single Diode 600 V 15A Through Hole DOP3I Diode Hot sale Original
Manufacturer Product Number
STTH1506DPI
Description
Original STTH1506DPI Rectifiers Single Diode 600 V 15A Through Hole DOP3I Diode Hot sale Original
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| DESCRIPTION The TURBOSWITCH “H” is an ultra high performance diode composed of two 300V dice in series. TURBOSWITCH “H” family drastically cuts losses in the associated MOSFET when run at high dIF/dt. FEATURES AND BENEFITS ■ Especially suited as boost diode in continuous mode power factor correctors and hard switching conditions. ■ Designed for high di/dt operation. Hyperfast recovery current to compete with GaAs devices. Allows downsizing of mosfet and heatsinks. ■ Internal ceramic insulated devices with equal thermal conditions for both 300V diodes. ■ Insulation (2500V RMS) allows placement on same heatsink as mosfet and flexible heatsinking on common or separate heatsink. ■ Matched diodes for typical PFC application without need for voltage balance network. ■ C = 7pF |
Product Description
| Type | Description |
| ANSC PART# | ANSC - STTH1506DPI |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Current - Average Rectified (Io) | 15A |
| Voltage - Forward (Vf) (Max) @ If | 3.6 V @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 35 ns |
| Current - Reverse Leakage @ Vr | 20 µA @ 600 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | DOP3I-2 Insulated (Straight Leads) |
| Supplier Device Package | DOP3I |
| Operating Temperature - Junction | 150°C (Max) |
| Base Product Number | STTH1506 |

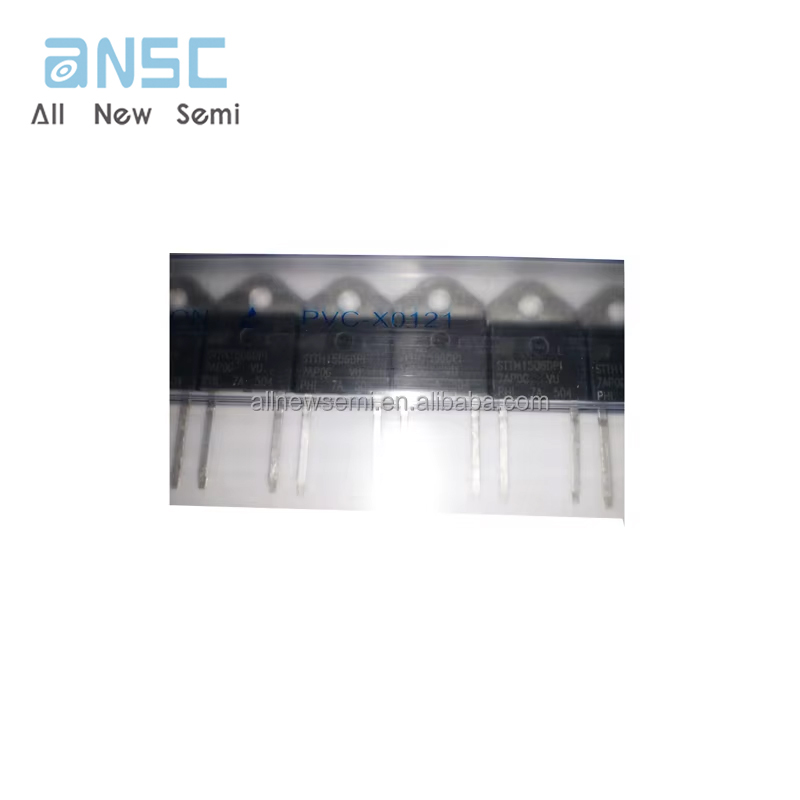

Actual image of the product

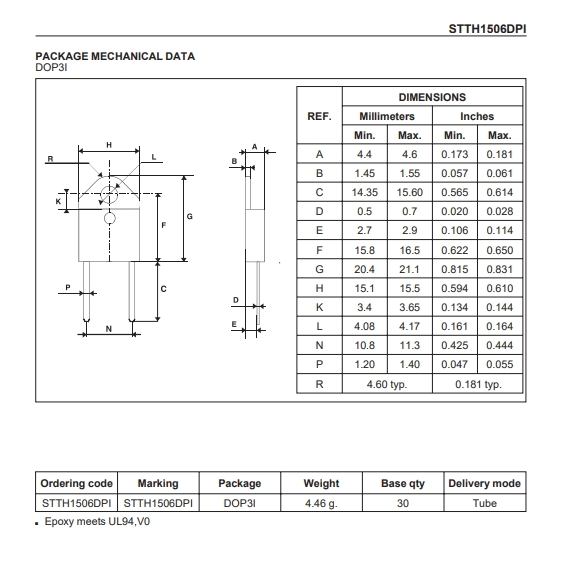

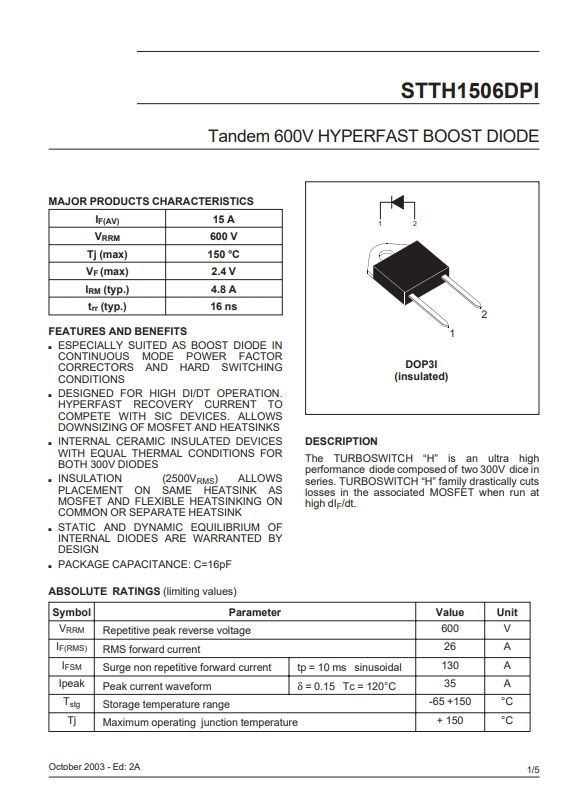

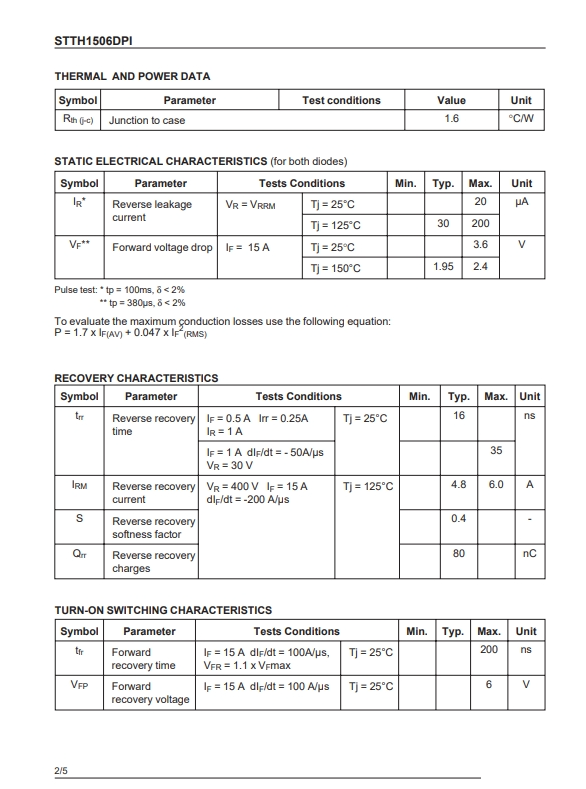

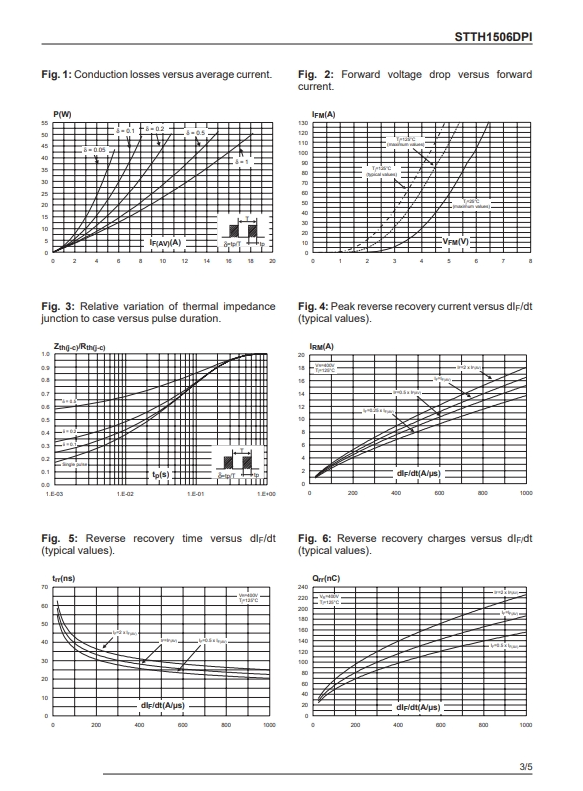

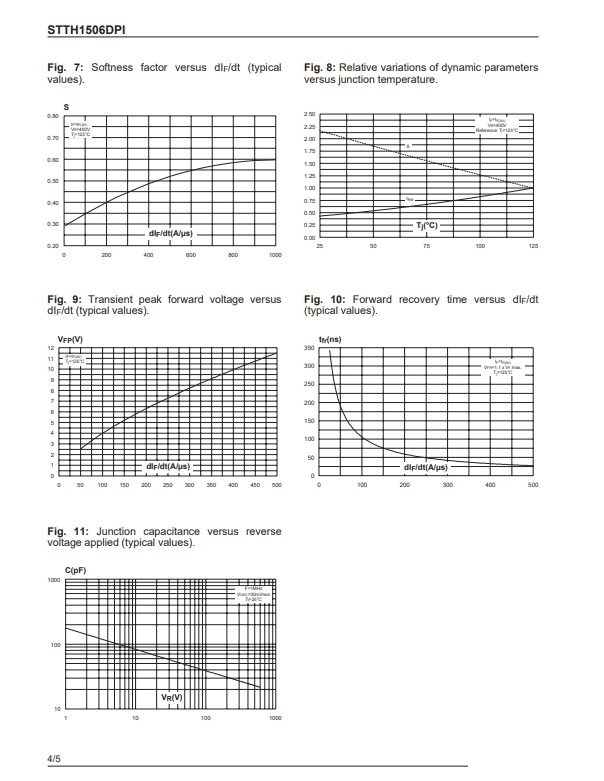

Product datasheet
For more information, please download
