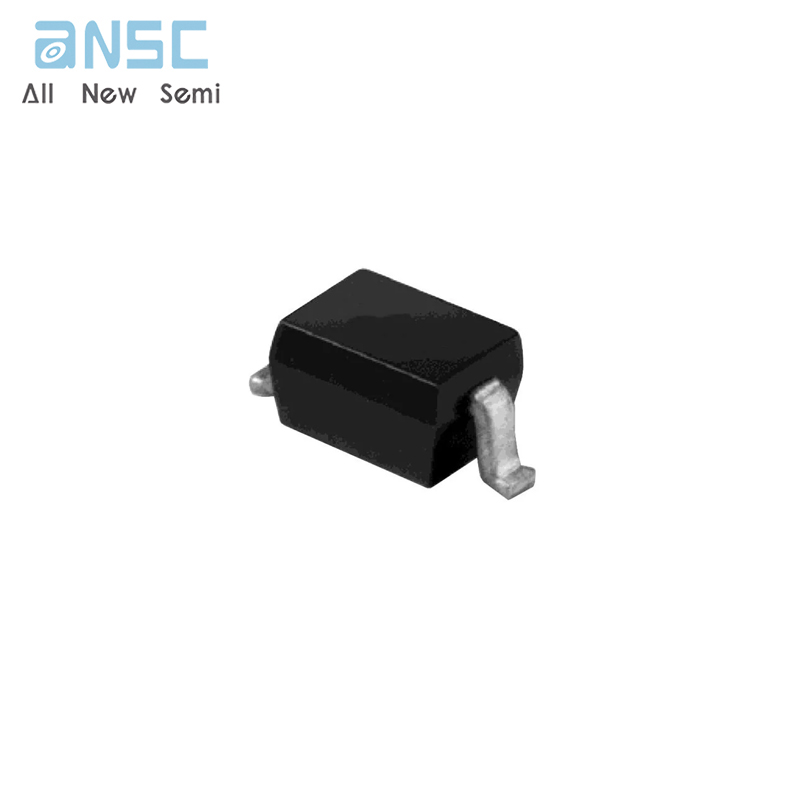

Image shown is a representation only.
Exact specifications should be obtained from the product data sheet.
Hot-selling and scarce BZT52C3V3S-7-F SURFACE MOUNT ZENER DIODE SOD323 spot stock
Manufacturer Product Number
BZT52C3V3S-7-F
Description
BZT52C3V3S-7-F SURFACE MOUNT ZENER DIODE SOD323 spot stock
Package Condition
TaPe & Reel
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
Case: SOD323
Case Material: Molded Plastic.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe (Lead Free Plating).
Solderable per MIL-STD-202, Method 208
Polarity: Cathode Band
Weight: 0.0049 grams (Approximate)
Product Features
Planar Die Construction
Small Surface Mount Package
Ideally Suited for Automated Assembly Processes
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free.“Green” Device
Qualified to AEC-Q101 Standards for High Reliability
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-BZT52C3V3S-7-F |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Zener | |
| Single Zener Diodes | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Voltage - Zener (Nom) (Vz) | 3.3 V |
| Tolerance | ±6% |
| Power - Max | 200 mW |
| Impedance (Max) (Zzt) | 95 Ohms |
| Current - Reverse Leakage @ Vr | 5 µA @ 1 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA |
| Operating Temperature | -65°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
| Base Product Number | BZT52 |
Product Photos
For more product information, please download the PDF
WhenCE is HIGH (deselected),the device assumes a standby mode at which the power dissipation can be reduced down to250 µW (typical) with CMOS input levels.
