Hot-selling and scarce MMBT2907A-7 60V PNP SMALL SIGNAL TRANSISTOR IN SOT23 spot stock
Manufacturer Product Number
MMBT2907A-7
Description
MMBT2907A-7 60V PNP SMALL SIGNAL TRANSISTOR IN SOT23 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Descriptions
The CD143A-SR05 and CD143A-SR12 devices provides ESD, EFT and surge protection for the external ports of portable electronic devices such as cell phones, handheld electronics and personal computers.
The ESD protection provided by the component enables a data port to withstand a minimum±8 KV Contact / ±15 KV Air Discharge per the ESD test method specified in IEC 61000-4-2. The device measures 2.80 mm x 1.20 mm and is available in a SOT-143 package intended to be mounted directly onto an FR4 printed circuit board.
The Bourns® device will meet IEC 61000-4-2 (ESD), IEC 61000-4-4 (EFT) and IEC 61000-4-5(Surge) requirements.
Product Features
n Lead free as standard
n RoHS compliant*
n Halogen free**
n ESD protection >25 kV
n Protects Vcc and two data lines
Product Applications
n Ethernet - 10/100/1000 Base T
n Firewire and USB
n Portable electronics
n Video/graphic cards
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-CD143A-SR05 |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | - |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Type | Steering (Rail to Rail) |
| Unidirectional Channels | 2 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 20V |
| Current - Peak Pulse(10/1000µs) | 30A (8/20µs) |
| Power - Peak Pulse | 500W |
| Power Line Protection | Yes |
| Applications | Ethernet |
| Capacitance @ Frequency | 10pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-253-4, TO-253AA |
| Supplier Device Package | SOT-143 |
| Base Product Number | CD143A |

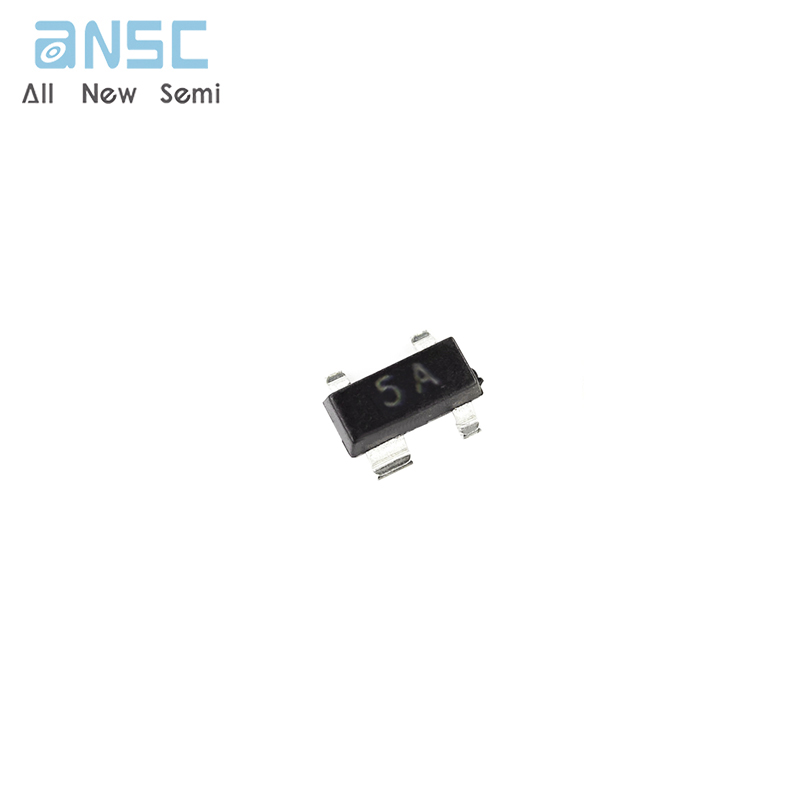

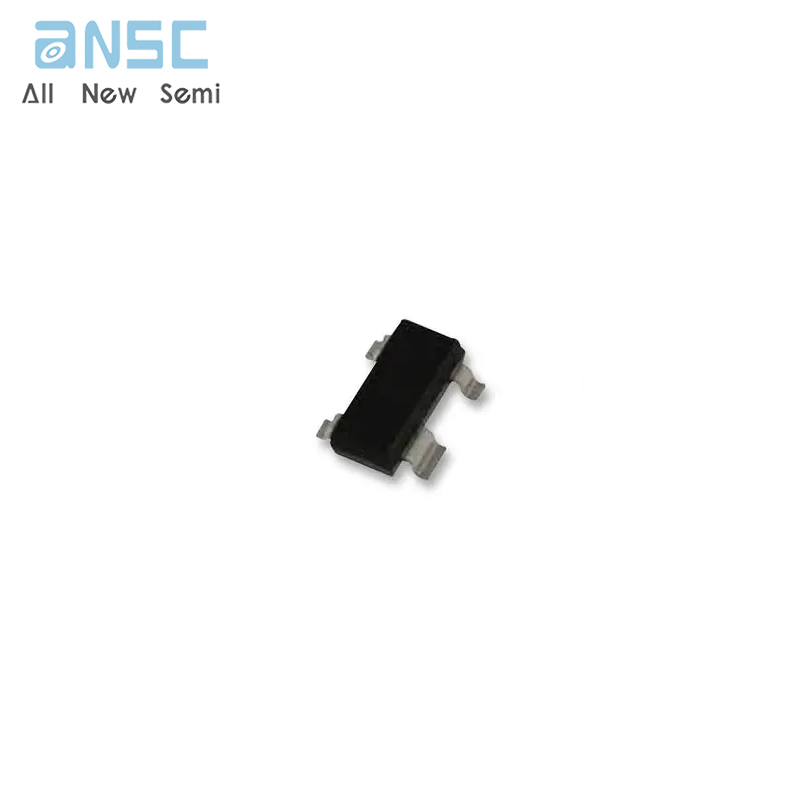

Product Photos
