Hot-selling and scarce RCLAMP0508M.TBT Low Capacitance TVS Diode Array MSOP10 spot stock
Manufacturer Product Number
RCLAMP0508M.TBT
Description
RCLAMP0508M.TBT Low Capacitance TVS Diode Array MSOP10 spot stock
Package Condition
Tape & Reel (TR)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Features
ESD protection for high-speed data lines to
IEC 61000-4-2 (ESD) 15kV (air), 8kV (contact)
IEC 61000-4-4 (EFT) 40A (5/50ns)
IEC 61000-4-5 (Lightning) 12A (8/20μs)
Array of surge rated diodes with internal TVS
Small package saves board space
Protects eight I/O lines operating up to 1GHz
Low capacitance: 3pF typical
Low clamping voltage
Low operating voltage: 5.0V
Solid-state silicon-avalanche technology
Product Applications
USB 2.0 Power & Data Line Protection
Video Graphics Cards
Monitors and Flat Panel Displays
Digital Video Interface (DVI)
High Definition Multi-Media Interface (HDMI)
10/100/1000 Ethernet
ATM Interfaces
IEEE 1394 Firewire Ports
Product Specifications
| Attribute | Attribute value |
| ANSM-Part# | ANSM-RCLAMP0508M.TBT |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | - |
| Series | RailClamp® |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Part Status | Active |
| Type | Steering (Rail to Rail) |
| Unidirectional Channels | 8 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 25V |
| Current - Peak Pulse(10/1000µs) | 12A (8/20µs) |
| Power - Peak Pulse | 300W |
| Power Line Protection | Yes |
| Applications | Ethernet, HDMI |
| Capacitance @ Frequency | 3pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-MSOP |
| Base Product Number | RCLAMP0508 |

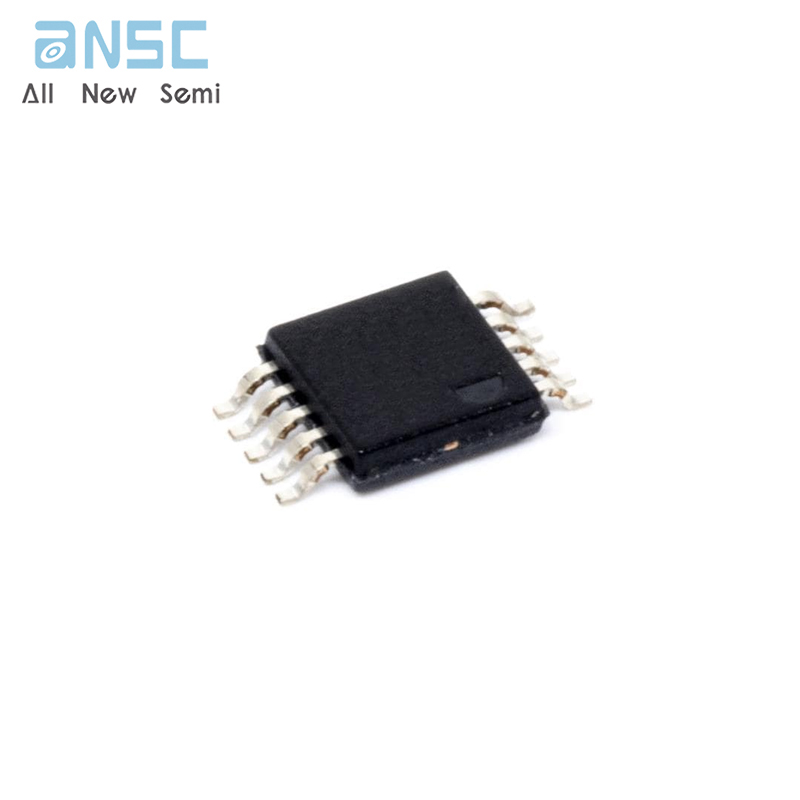

Product Photos
For more product information, please download the PDF
