Hot sale Original 6N137-320E Logic Output Optoisolator 10MBd Open Collector, Schottky Clamped 5000Vrms 1 Channel
Manufacturer Product Number
6N137-320E
Description
6N137-320E Logic Output Optoisolator 10MBd Open Collector, Schottky Clamped 5000Vrms 1 Channel 1kV/µs CMTI 8-DIP Gull Wing
Package Condition
Tube
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Description The 6N137, HCPL-26xx/06xx/4661, HCNW137/26x1 are optically coupled gates that combine a GaAsP light emitting diode and an integrated high gain photo etector. An enable input allows the detector to be strobed. The output of the detector IC is an open collector Schottky clamped transistor. The internal shield provides a guaranteed common mode transient immunity specification up to 15,000 V/µs at Vcm = 1000 V. This unique design provides maximum AC and DC circuit isolation while achieving TTL compatibility. The optocoupler AC and DC operational param e ters are guaranteed from -40 °C to +85 °C allowing troublefree system performance. Features • 15 kV/µs minimum Common Mode Rejection (CMR) at Vcm= 1 kV for HCNW2611, HCPL-2611, HCPL-4661, HCPL-0611, HCPL-0661 • High speed: 10 MBd typical • LSTTL/TTL compatible • Low input current capability: 5 mA • Guaranteed AC and DC performance over temperature: -40 °C to +85 °C • Available in 8-Pin DIP, SOIC-8, widebody packages • Strobable output (single channel products only) • Safety approval UL recognized - 3750 Vrms for 1 minute and 5000 Vrms for 1 minute per UL1577 CSA approved |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - 6N137-320E |
| Category | Isolators |
| Optocouplers, Optoisolators | |
| Logic Output Optoisolators | |
| Manufacturer | Original |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 1kV/µs |
| Input Type | DC |
| Output Type | Open Collector, Schottky Clamped |
| Current - Output / Channel | 50 mA |
| Data Rate | 10MBd |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns |
| Rise / Fall Time (Typ) | 24ns, 10ns |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Current - DC Forward (If) (Max) | 20mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SMD, Gull Wing |
| Supplier Device Package | 8-DIP Gull Wing |
| Base Product Number | 6N137 |

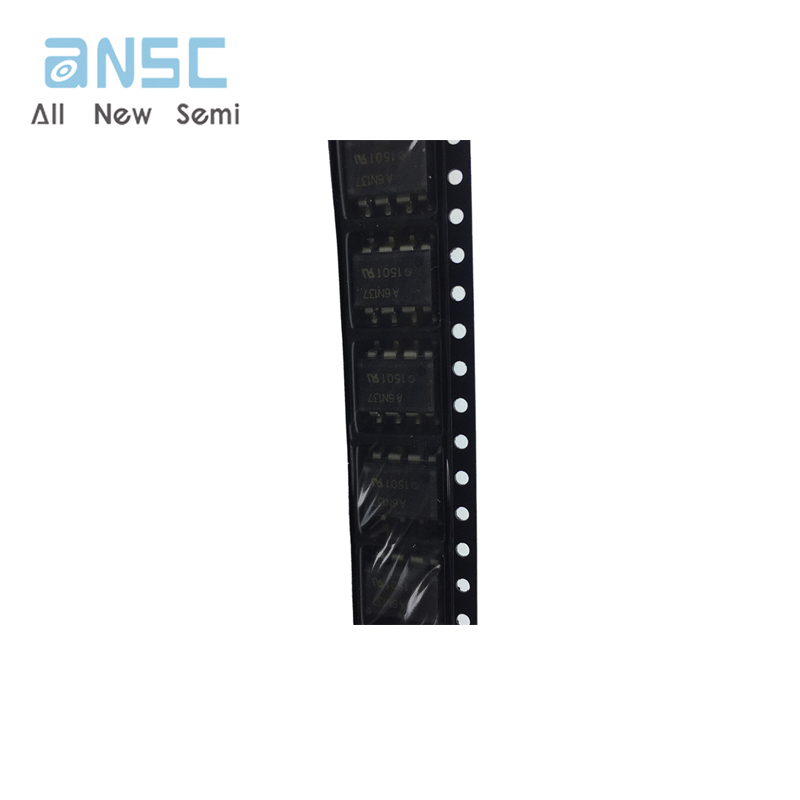

Product Photos

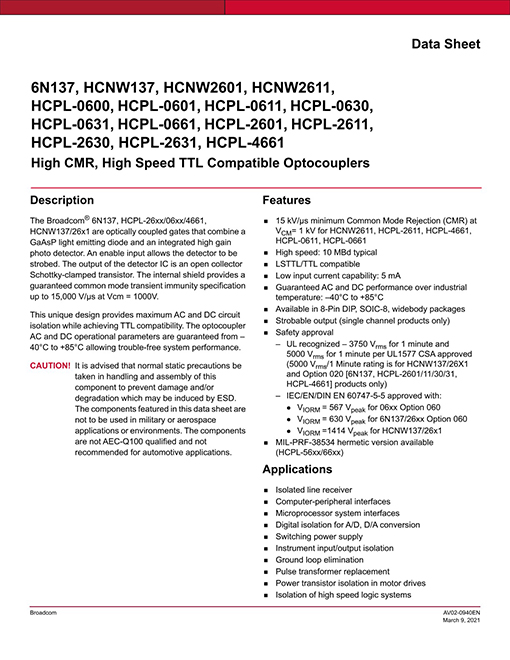

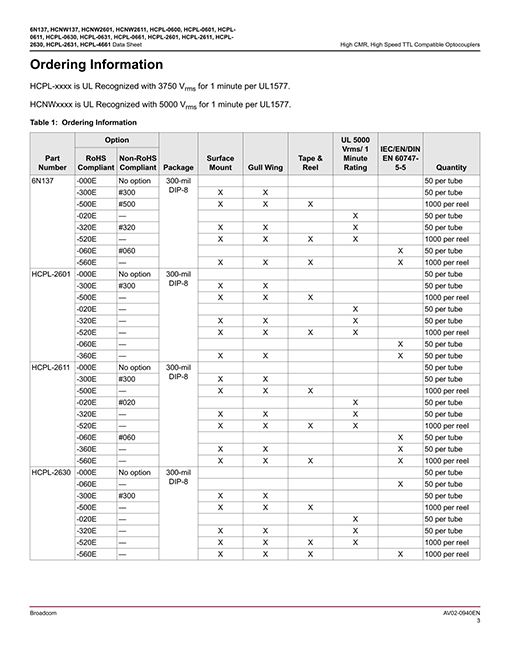

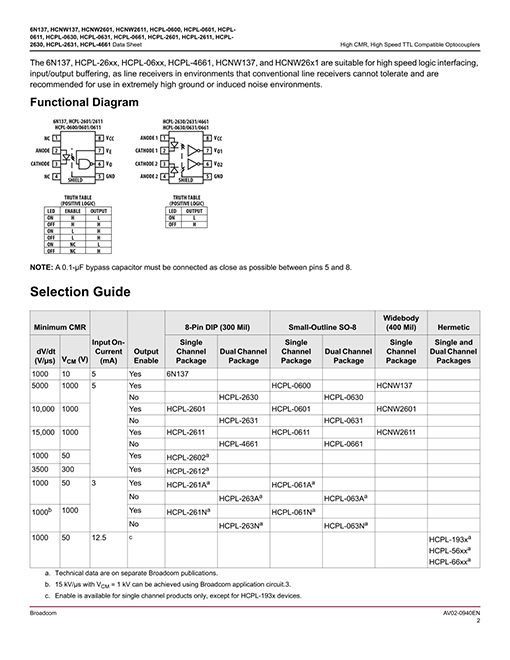

Product datasheet
For more information, please download
