Hot sale Original MF-MSMF075-2 RESET FUSE Polymeric PTC Resettable Fuse 13.2V 750 mA Surface Mount 1812 (4532 Metric) Concave
Manufacturer Product Number
MF-MSMF075-2
Description
MF-MSMF075-2 RESET FUSE Polymeric PTC Resettable Fuse 13.2V 750 mA Surface Mount 1812 (4532 Metric) Concave
Package Condition
Tape & Reel (TR) Cut Tape (CT)
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Features
■ Compliant with AEC-Q200 Rev-C- Stress Test Qualification for Passive Components in Automotive Applications
■ 100 % electrically compatible with all previous generations of 1812 SMT devices
■ Compatible with Pb and Pb-free solder reflow profiles
■ RoHS compliant* and halogen free**
■ Surface mount packaging for automated assembly
■ Agency recognition:
■ Standard 4532 mm (1812 mils) footprint
■ Patents pending
Applications
■ Overcurrent and overtemperature protection of automotive electronics
■ Hard disk drives
■ PC motherboards
■ PC peripherals
■ Point-of-sale (POS) equipment
■ PCMCIA cards
■ USB port protection - USB 2.0, 3.0 & OTG
■ HDMI 1.4 Source protection
Product Description
| Type | Description |
| ANSC PART# | ANSC - MF-MSMF075-2 |
| Category | Circuit Protection |
| PTC Resettable Fuses | |
| Manufacturer | Original |
| Series | Multifuse®, MF-MSMF |
| Packaging | Tape & Reel (TR) |
| Cut Tape (CT) | |
| / | |
| Part Status | Active |
| Type | Polymeric |
| Voltage - Max | 13.2V |
| Current - Hold (Ih) (Max) | 750 mA |
| Current - Trip (It) | 1.5 A |
| Current - Max | 100 A |
| Time to Trip | 200 ms |
| Resistance - Initial (Ri) (Min) | 110 mOhms |
| Resistance - Post Trip (R1) (Max) | 450 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Grade | Automotive |
| Qualification | AEC-Q200 |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric), Concave |
| Size / Dimension | 0.179" L x 0.128" W (4.55mm x 3.24mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.033" (0.85mm) |
| Lead Spacing | - |
| Approval Agency | cURus, TUV |
| Base Product Number | MF-MSMF |

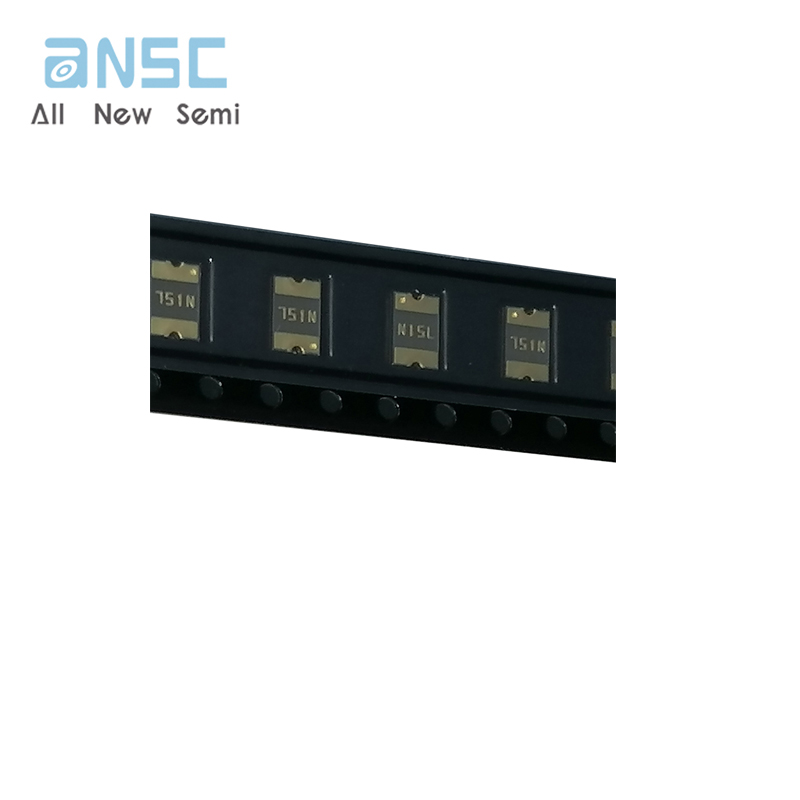

Actual image of the product

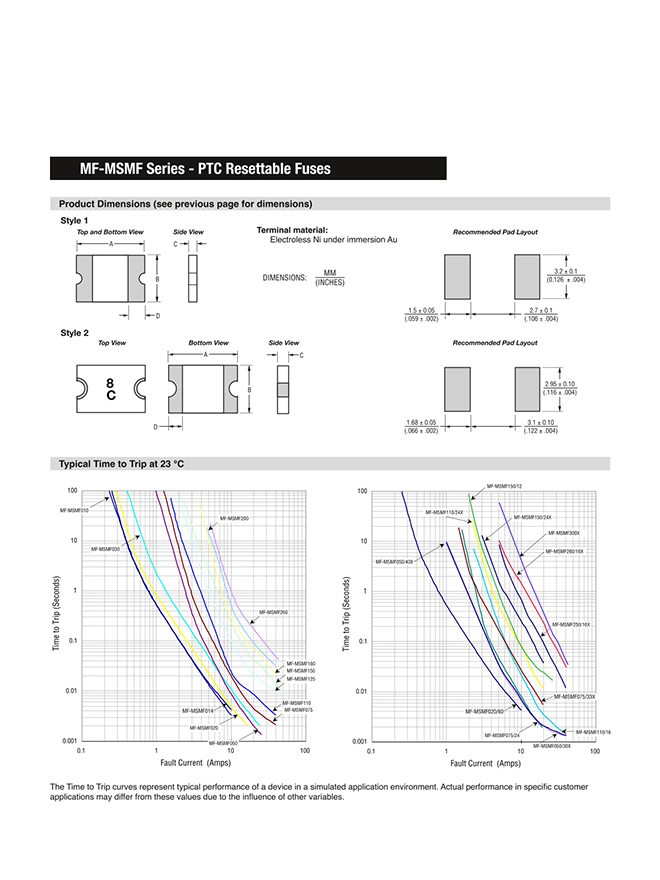

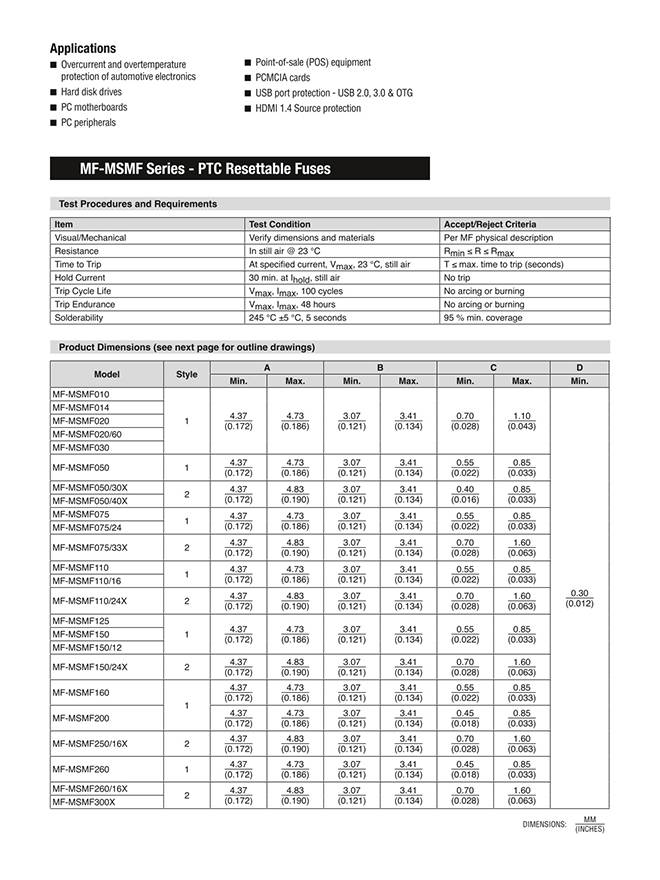

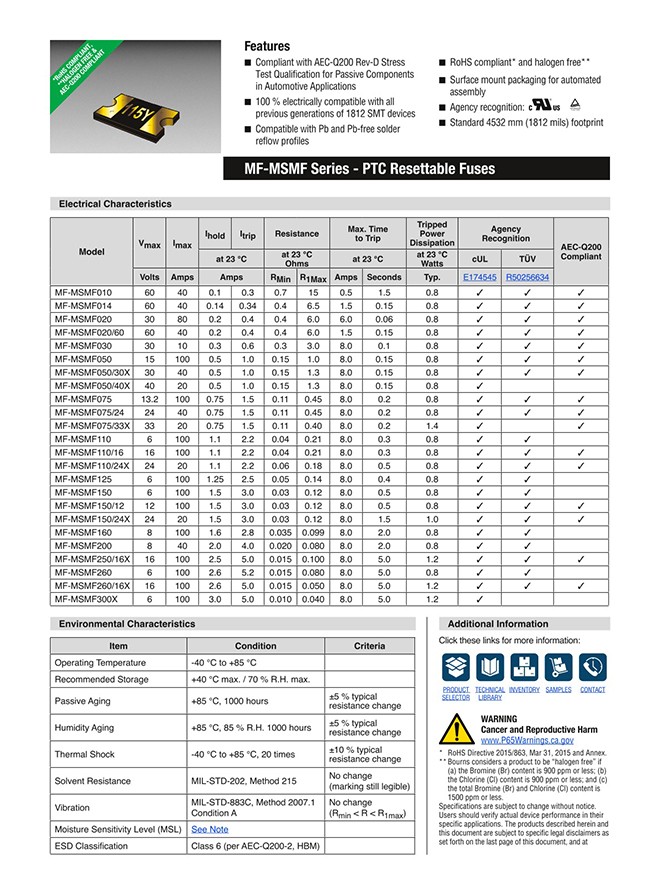

Product datasheet
For more information, please download
