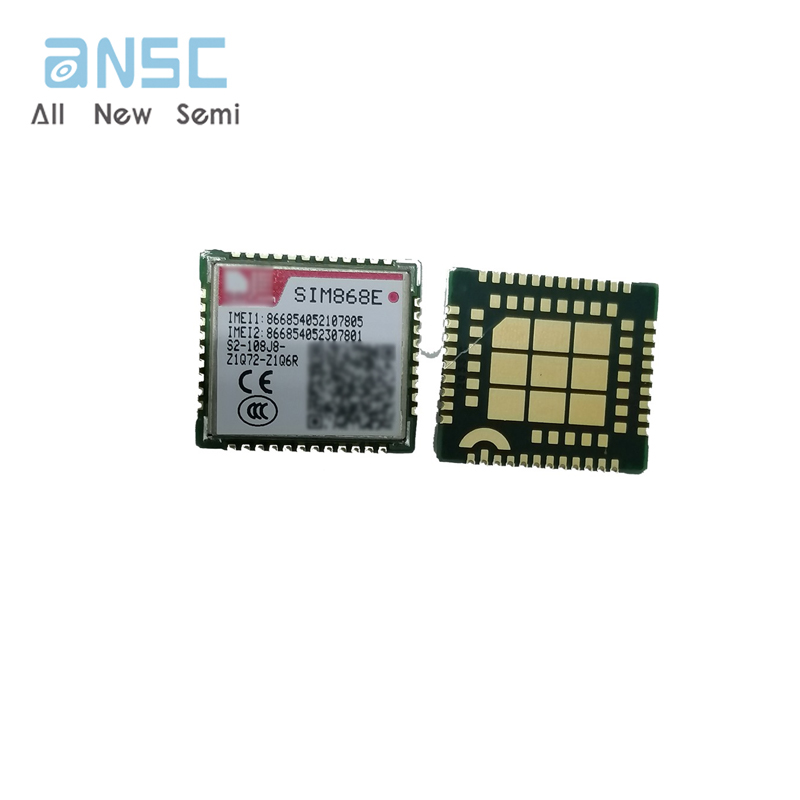

Original SIM868E Packaging module GPRS/GPS Beidou Bluetooth all-in-one module Low power consumption IC chip
Manufacturer Product Number
SIM868E
Description
Packaging module GPRS/GPS Beidou Bluetooth all-in-one module Low power consumption IC chip
Package Condition
original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| Product Overview SIM868E module is a complete quad-band GSM/GPRS module that integrates GNSS (GPS/GLONASS/BDS) technology for satellite navigation. The compact design with LCC and LGA pads will significantly save time and cost for customers to develop GNSS-enabled applications. It is fully pin-compatible with SIM868 and supports BT4.0 and BT3.0 specifications. BLE (Bluetooth Low Energy) technology features ultra-low peak, average, and idle mode power consumption. The module features industry-standard interfaces and GNSS capabilities for seamless tracking of a wide range of assets anywhere and at any time with signal coverage. |
| Product characteristics Quad-band 850/900/1800/1900MHz GPRS multi-slot rating 12/10 GPRS Mobile Table Class B GSM Stage 2/2+ compliant Class 4 (2W at 850/900MHz) Class 1 (1W at 1800/1900MHz) Support GPS/GLONASS/BD Size: 17.615.72.3mm Weight: 1.5g Control via AT commands (3GPP TS 27.007, 27.005 and enhanced AT commands) BT4.0 Current Consumption Broadcast: 1.46mA Connection: 1.55mA The supply voltage range is 3.4~4.4V Low power consumption Working temperature: -40°C~85°C 0710 multiplexing protocol Embedded TCP/UDP protocol FTP/HTTP MMS POP3/SMTP DTMF Interference detection Audio recording Receiver Type: 33 tracking/99 capture channels Sensitivity: Tracking: -167dBm; Recapture: -161dBm; Cold start: -149dBm First positioning time: Cold start: 28s (typical); Hot start: <1s; Warm start: 22s Accuracy: Horizontal position: <2.5m CEP Interface: 77 SMT pads; SIM card interface - SIM card: 3V/1.8V; analog audio interface; Bluetooth BT4.0 BLE Profile: GATT/PXP/FMP BT3.0 Profile: SPP/HFP - AG; RTC GNSS backup; I2C interface; USB interface; serial interface; SD； GPIO； ADC； GSM antenna pads; GNSS antenna pads; Bluetooth antenna pads Certification: CE; FCC； ROHS； REACH； CCC； TA |
Actual image of the product
