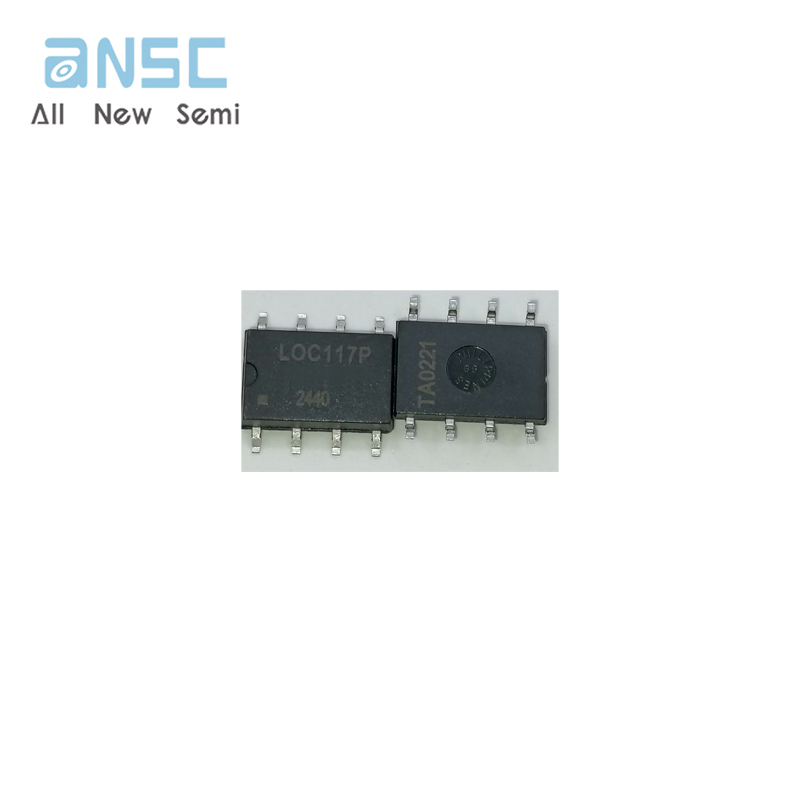

Hot sale original LOC117P OPTOISOLATOR 3.75KV PHVOLT 8SMD Linear Optocoupler 8-SMD

Product Details

Description

The LOC117 Linear Optocoupler features an infrared LED optically coupled to a pair of
phototransistors. An input phototransistor provides the servomechanism used to generate a feedback control signal for the input LED drive current thus compensating for the LED's nonlinear time and temperature characteristics. The output phototransistor provides an isolated signal that is
linear with respect to the servo LED current. LOC117 features include wide bandwidth, high input-to-output isolation, and excellent servo linearity.

Features

• Small 8-Pin Package
• Flatpack Package (PCMCIA Compatible)
• Couples Analog and Digital Signals
• Wide Bandwidth (>200kHz)
• High Gain Stability
• Low Input-to-Output Capacitance
• Low Power Consumption
• 0.01% Servo Linearity
• THD 87dB Typical
• Machine Insertable, Wave Solderable
• Surface Mount Tape and Reel Packaging Available
• VDE Compatible

Applications

• Modem Transformer Replacement With No Insertion Loss
• Digital Telephone Isolation
• Power Supply Feedback Voltage/Current
• Medical Sensor Isolation
• Audio Signal Interfacing
• Isolation of Process Control Transducers

Product Description

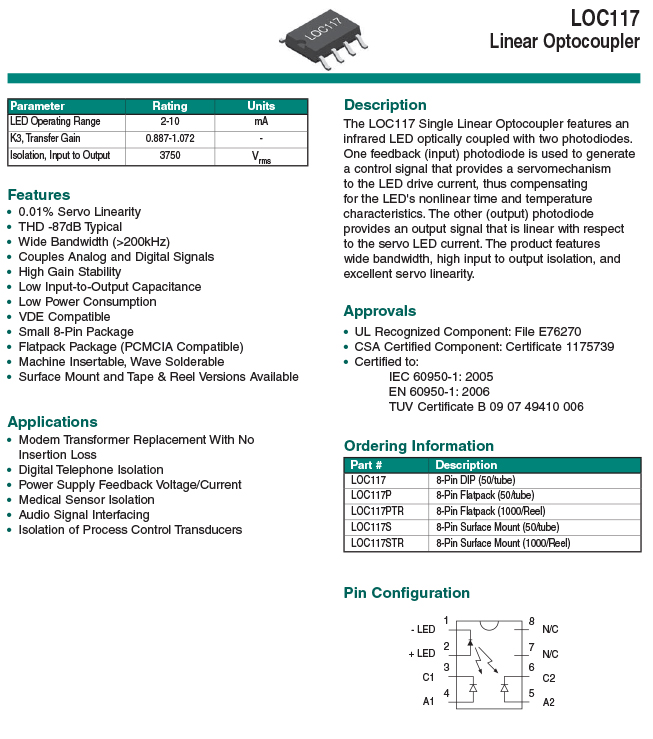

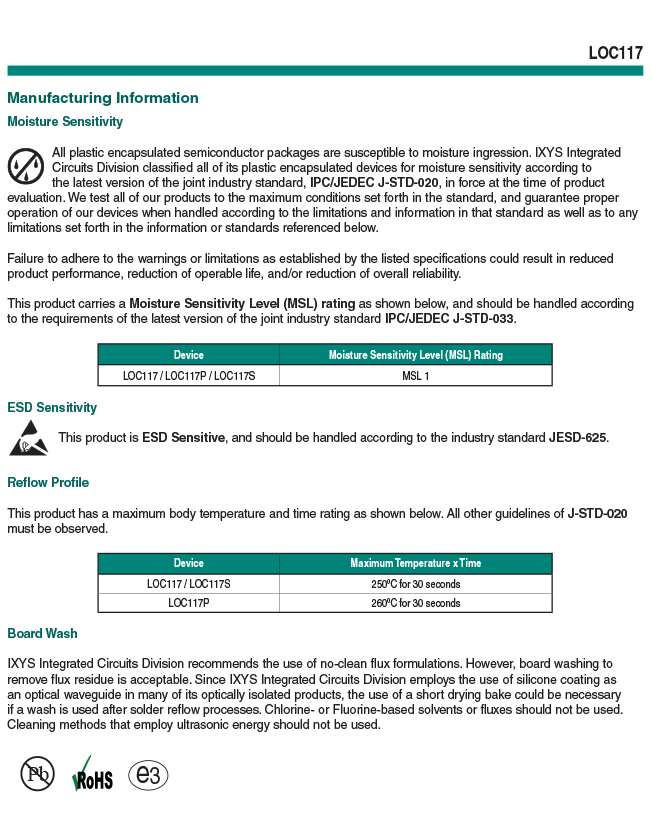

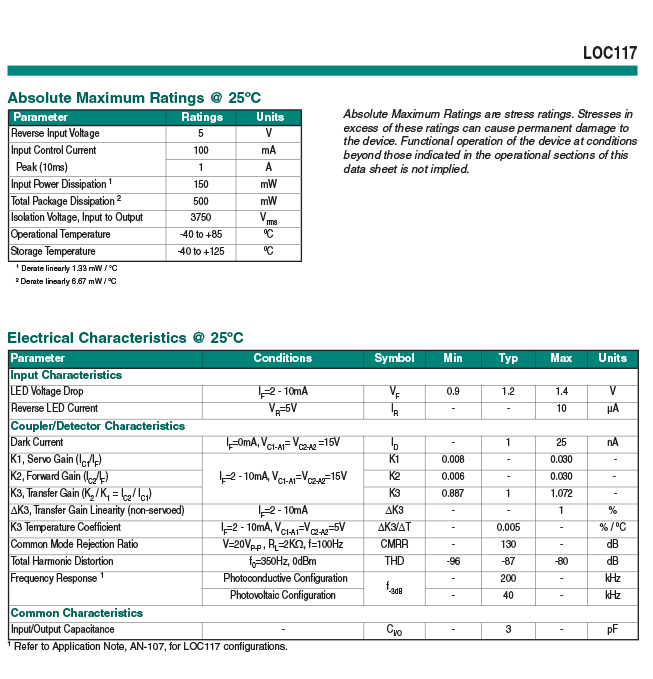

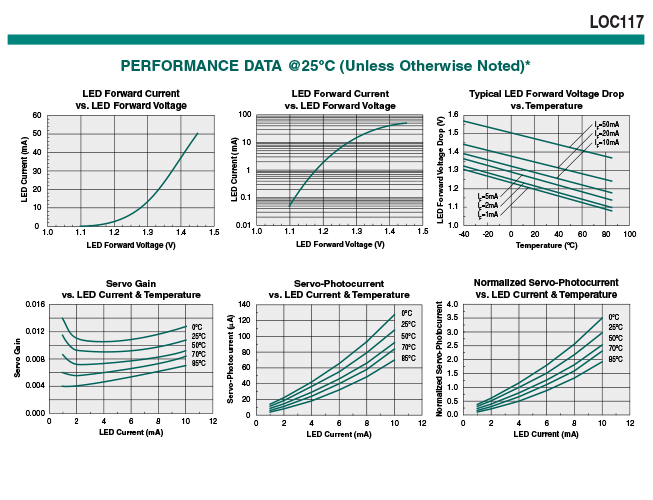

Product datasheet

For more information, please download

Payment&Transportation

Official Certificate&Certificate

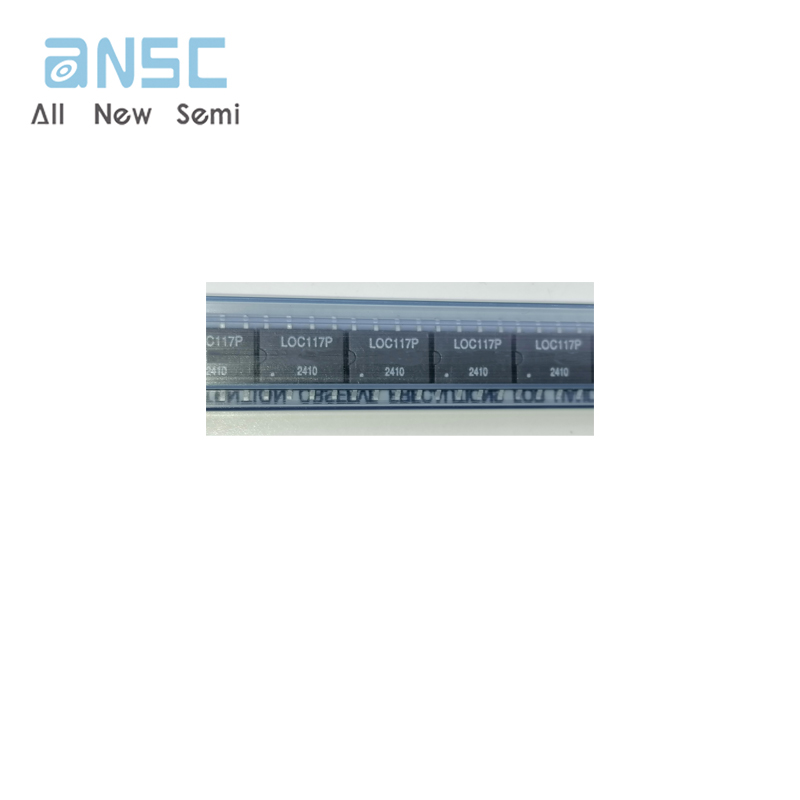

Standard packaging
