Hot sale original ERA-3 Wide Band Low Power Amplifier 0MHz Min 3000MHz Max 1 Func CASE 4 PIN

Manufacturer Product Number

ERA-3

Description

ERA-3 Wide Band Low Power Amplifier 0MHz Min 3000MHz Max 1 Func CASE 4 PIN

Package Condition

Original

Datasheet

ERA-3

Product Details
Reviews

We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Details

features

• low thermal resistance

• miniature microwave amplifier

• frequency range, DC to 8 GHz, usable to 10 GHz

• up to 18.4 dBm typ. (16.5 dBm min) output power

Product Description

TYPE#	DESCRIPTION
ANSC PART#	ANSC-ERA-3
Manufacturer	/
Package Description	CASE VV105, 4 PIN
Characteristic Impedance	50 Ω
Construction	COMPONENT
Gain	17 dB
Input Power-Max (CW)	13 dBm
Mounting Feature	SURFACE MOUNT
Number of Functions	1
Number of Terminals	4
Operating Frequency-Max	3000 MHz
Operating Frequency-Min
Operating Temperature-Max	85 °C
Operating Temperature-Min	-45 °C
Package Body Material	PLASTIC/EPOXY
Package Equivalence Code	SL,4LEAD,.085CIRC
Power Supplies	3 V
RF/Microwave Device Type	WIDE BAND LOW POWER
Supply Current-Max	35 mA
Surface Mount	YES
Terminal Finish	Tin/Lead (Sn/Pb)
VSWR-Max	1.7

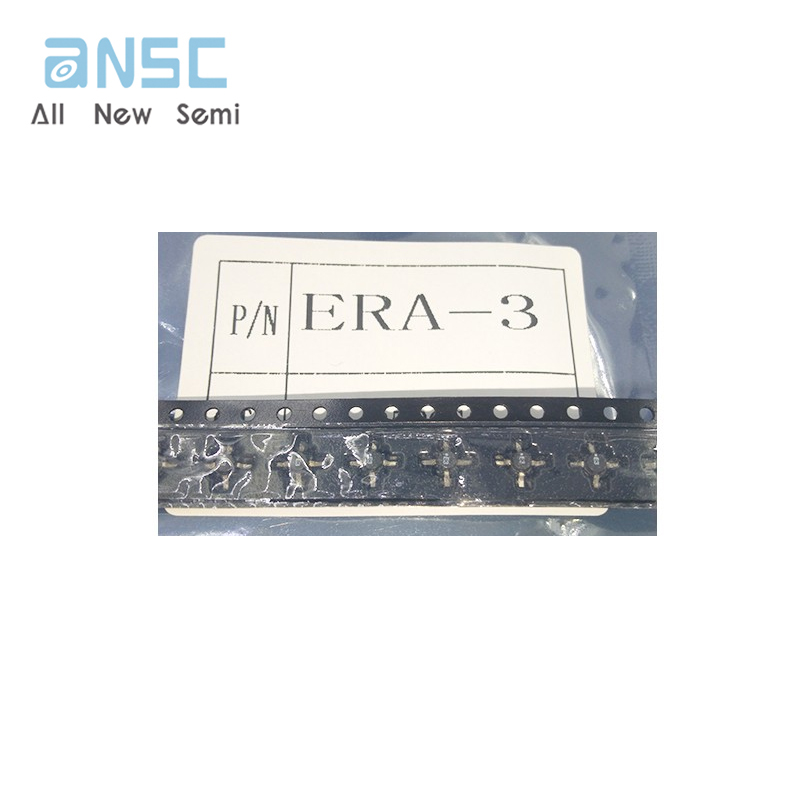

Actual image of the product

ERA-3

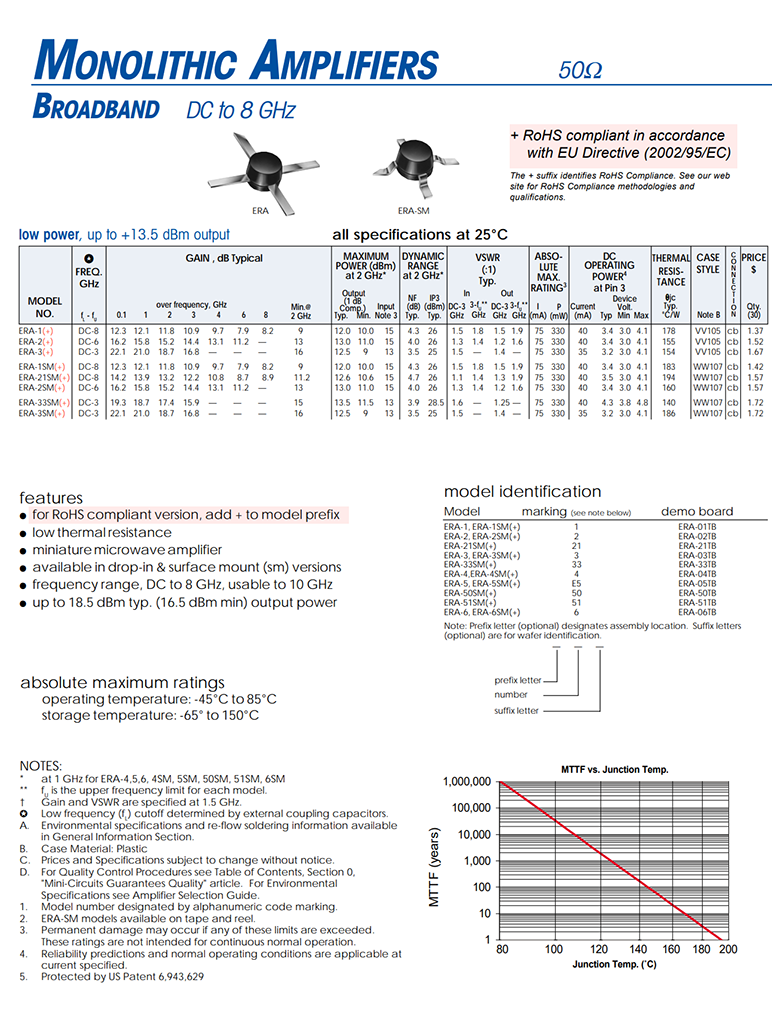

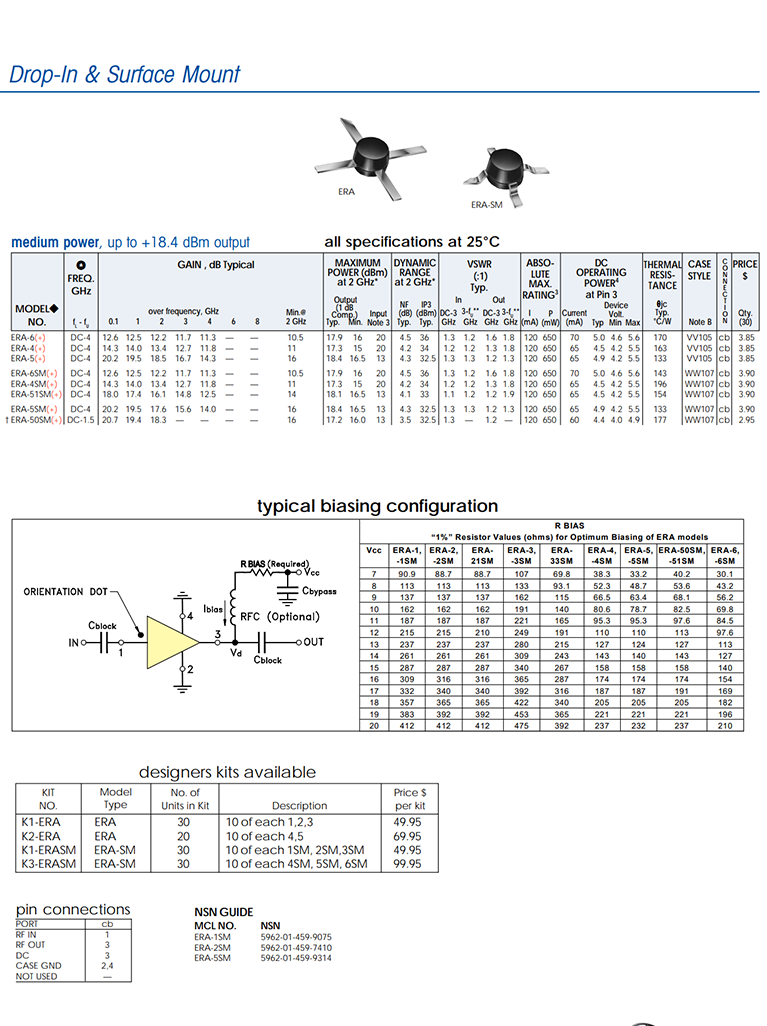

Product datasheet

For more information, please download
