Hot sale original RA07M4047M Narrow Band High Power Amplifier 400MHz Min 470MHz Max 1 Func Hybrid
Manufacturer Product Number
RA07M4047M
Description
RA07M4047M Narrow Band High Power Amplifier 400MHz Min 470MHz Max 1 Func Hybrid
Package Condition
original
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| PRA arrays can be used in most applications requiring a matched pair (or set) of resistor elements. The networks provide 1 ppm/°C TCR tracking, a ratio tolerance as tight as 0.01 %, and outstanding stability. They are available in pitch: • 0.70 mm for PRA073 (based on case 0302) • 0.70 mm for PRA074 (based on case 0402) • 1.00 mm for PRA100 (based on case 0603) • 1.35 mm for PRA135 (based on case 0805) • 1.82 mm for PRA182 (based on case 1206) FEATURES • High-stability passivated nichrome resistive layer 0.02 % on ratio, 1000 h at Pn at +70 °C • Tight TCR (10 ppm/°C) and TCR tracking (to 1 ppm/°C) • Very low noise < -35 dB and voltage coefficient < 0.01 ppm/V • Ratio tolerance to 0.01 % (R ≥ 200R) • High-temperature (230 °C) version, see PRA HT • ESA-qualified version, see PRA HR • SMD wraparound chip resistor array • Thin film technology • Option to withstand humidity test of AEC-Q200 • Sulfur resistant (per ASTM B809-95 humid vapor test) |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- RA07M4047M |
| Manufacturer | / |
| Package Description | FLNG,1.0"H.SPACE |
| Characteristic Impedance | 50 Ω |
| Construction | MODULE |
| Input Power-Max (CW) | 18.45 dBm |
| Number of Functions | 1 |
| Operating Frequency-Max | 470 MHz |
| Operating Frequency-Min | 400 MHz |
| Operating Temperature-Max | 110 °C |
| Operating Temperature-Min | -30 °C |
| Package Body Material | PLASTIC/EPOXY |
| Package Equivalence Code | FLNG,1.0"H.SPACE |
| Power Supplies | 3.5,7.2 V |
| RF/Microwave Device Type | NARROW BAND HIGH POWER |
| Technology | HYBRID |
| VSWR-Max | 4 |

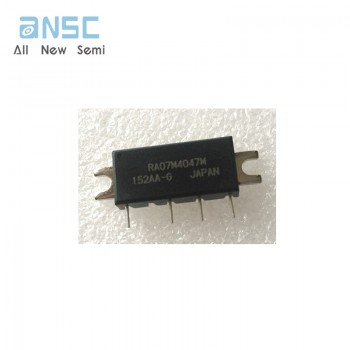

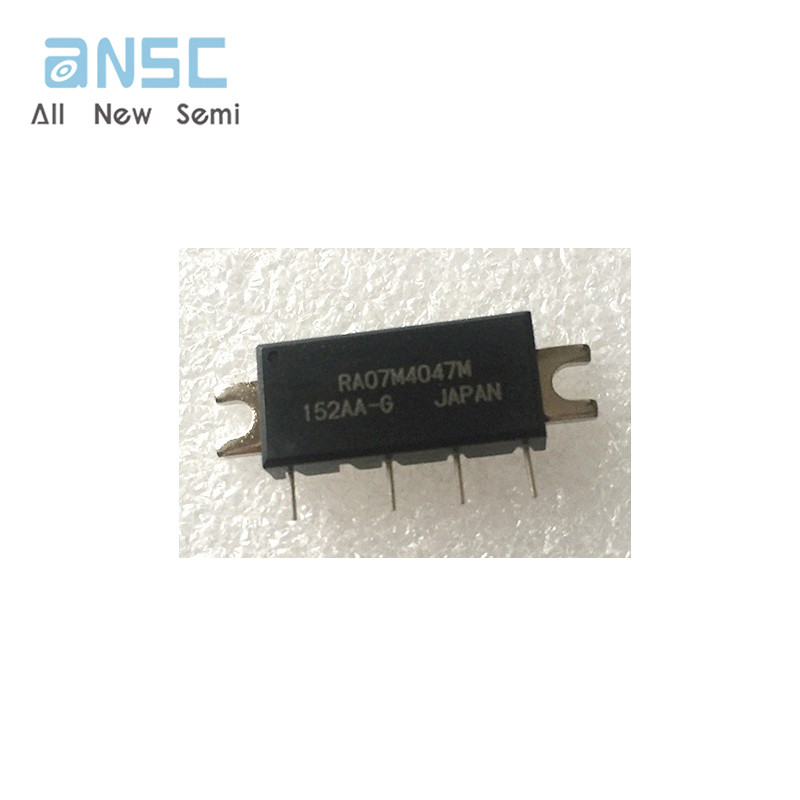

Actual image of the product

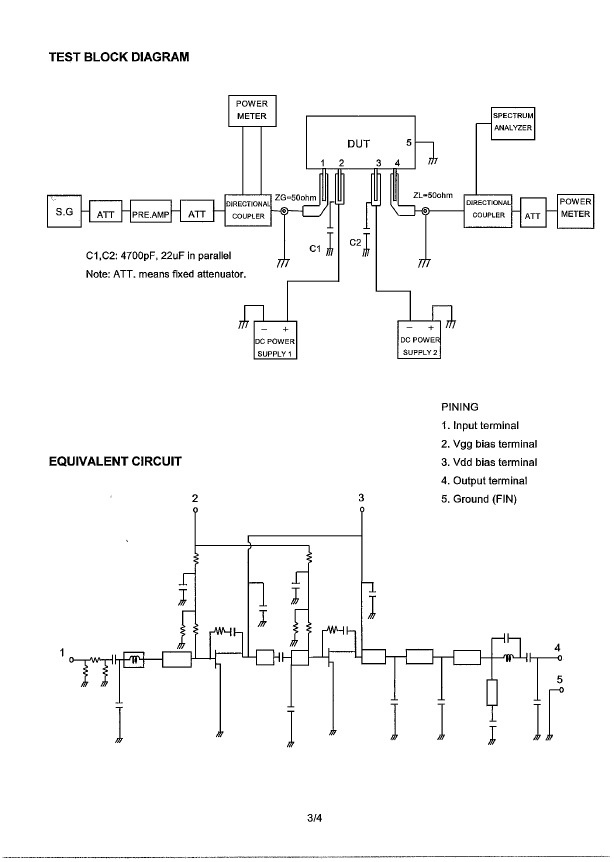

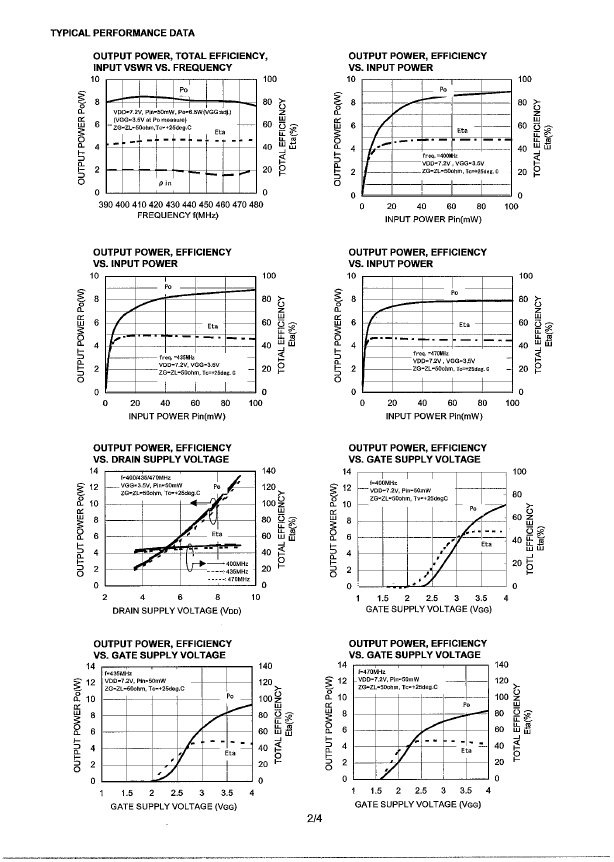

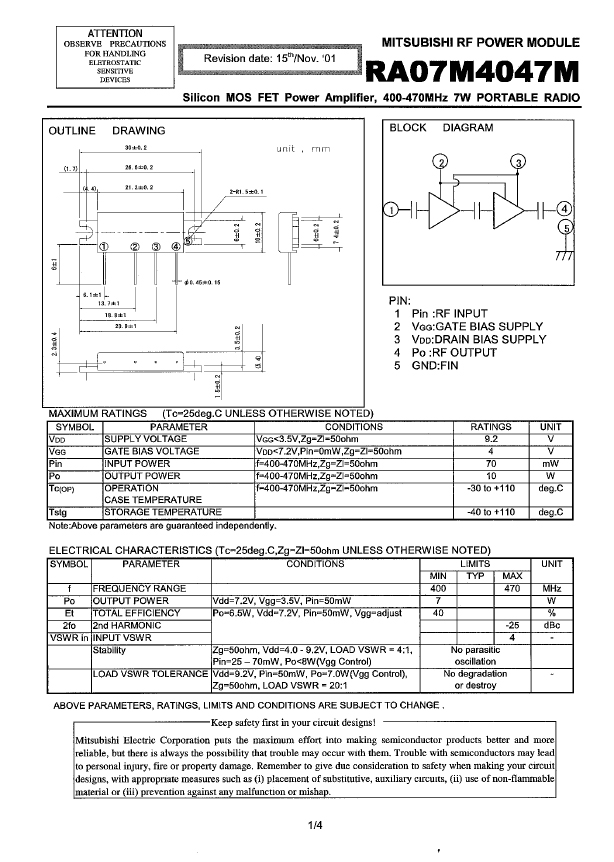

Product datasheet
For more information, please download
Payment&Transportation
Official Certificate&Certificate
Standard packaging
Multiple product supply
Welcome to visit our company
Warehouse Real Shot
