Hot sale Original CM1200DC-34N Trans IGBT Module N-CH 1.7KV 1.2KA IGBT Module
Manufacturer
Manufacturer Product Number
CM1200DC-34N
Description
Dual IGBTMOD HVIGBT Module 1200 Amperes/1700 Volts CM1200DC-34N
Package Condition
Original
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
Description:
Powerex IGBTMOD™ Modules are designed for use in switching applications. Each module consists of one IGBT Transistor in a single configuration with a reverse connected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management.
Features:
□ Low Drive Power
□ Low VCE(sat)
□ Discrete Super-Fast Recovery Free-Wheel Diode
□ Isolated Baseplate for Easy Heat Sinking
Applications:
□ AC Motor Control
□ Motion/Servo Control
□ UPS
□ Welding Power Supplies
□ Laser Power Supplies
Product Description
| Type | Description |
| ANSC PART# | ANSC-CM1200DC-34N |
| Ihs Manufacturer | / |
| Part Package Code | MODULE |
| Package Description | FLANGE MOUNT, R-XUFM-X10 |
| Pin Count | 10 |
| Additional Feature | HIGH RELIABILITY |
| Case Connection | ISOLATED |
| Collector Current-Max (IC) | 1200 A |
| Collector-Emitter Voltage-Max | 1700 V |
| Configuration | SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE |
| Gate-Emitter Voltage-Max | 20 V |
| Number of Elements | 2 |
| Number of Terminals | 10 |
| Operating Temperature-Max | 150 °C |
| Package Body Material | UNSPECIFIED |
| Package Shape | RECTANGULAR |
| Package Style | FLANGE MOUNT |
| Polarity/Channel Type | N-CHANNEL |
| Power Dissipation-Max (Abs) | 6500 W |
| Qualification Status | Not Qualified |
| Surface Mount | NO |
| Terminal Form | UNSPECIFIED |
| Terminal Position | UPPER |
| Transistor Application | POWER CONTROL |
| Transistor Element Material | SILICON |
| Turn-off Time-Nom (toff) | 1500 ns |
| Turn-on Time-Nom (ton) | 1400 ns |
| VCEsat-Max | 2.8 V |

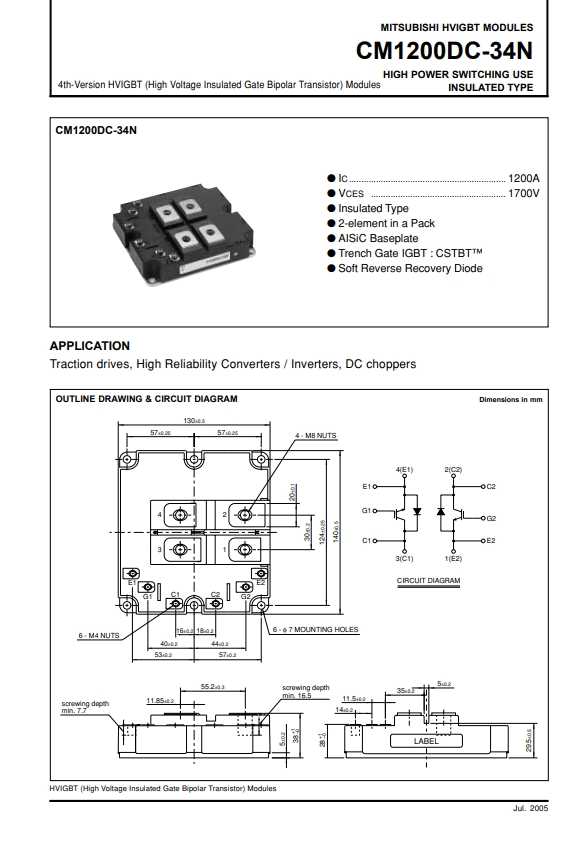

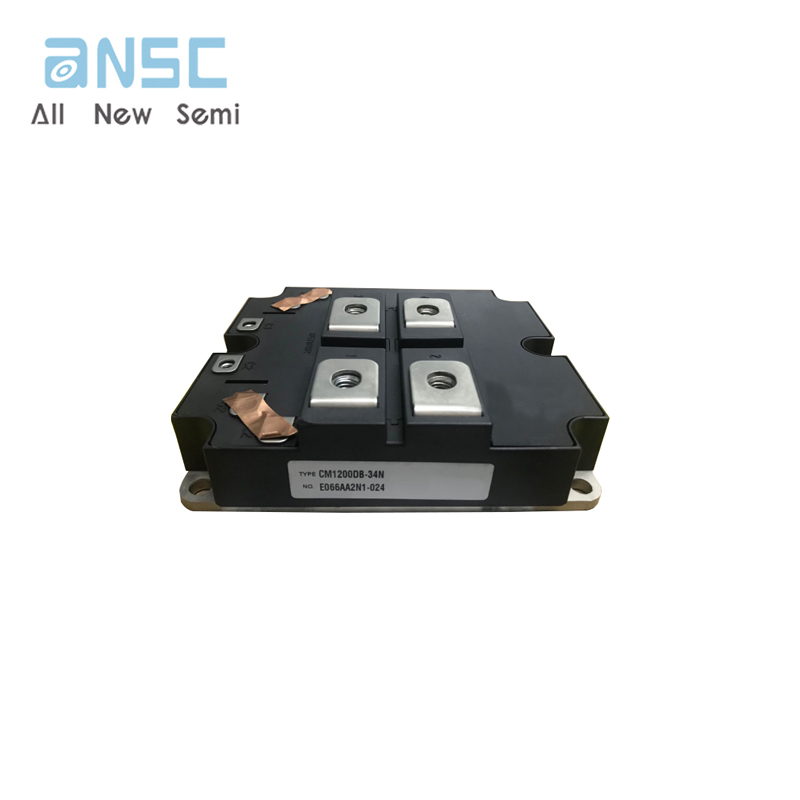

Actual image of the product

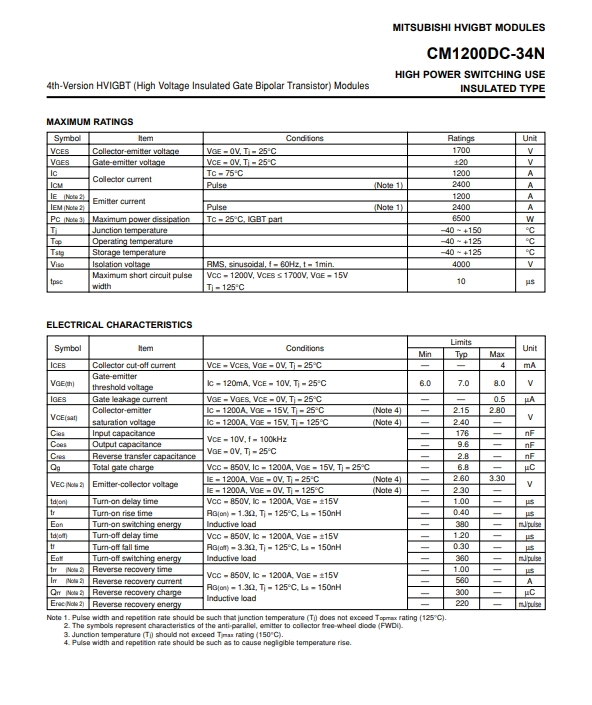

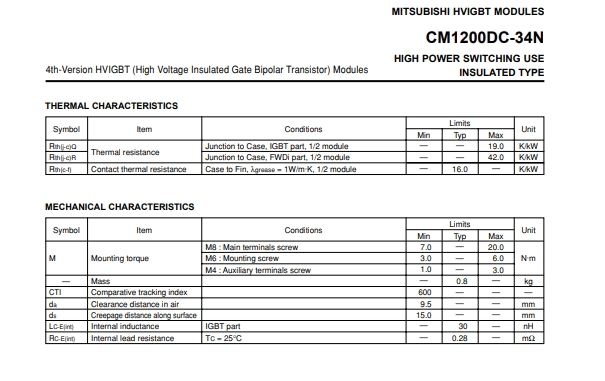

Product datasheet
