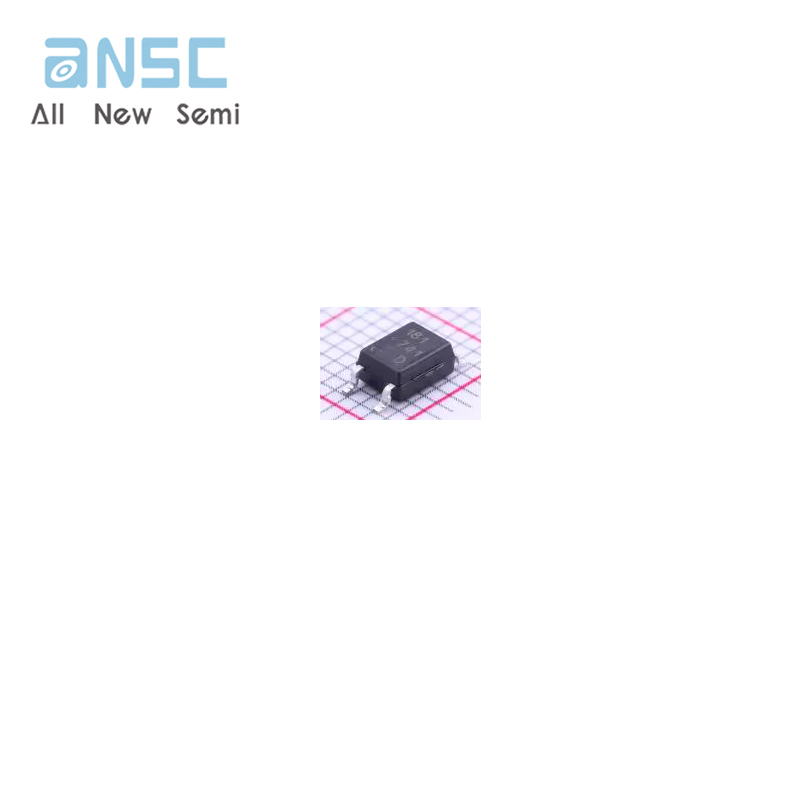

Hot sale original HCPL-181-00DE Optocoupler 1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER MINIFLAT, SMD SOP-4
Manufacturer Product Number
HCPL-181-00DE
Description
HCPL-181-00DE Optocoupler 1 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER MINIFLAT, SMD SOP-4
Package Condition
Tape & Reel (TR) Cut Tape (CT)

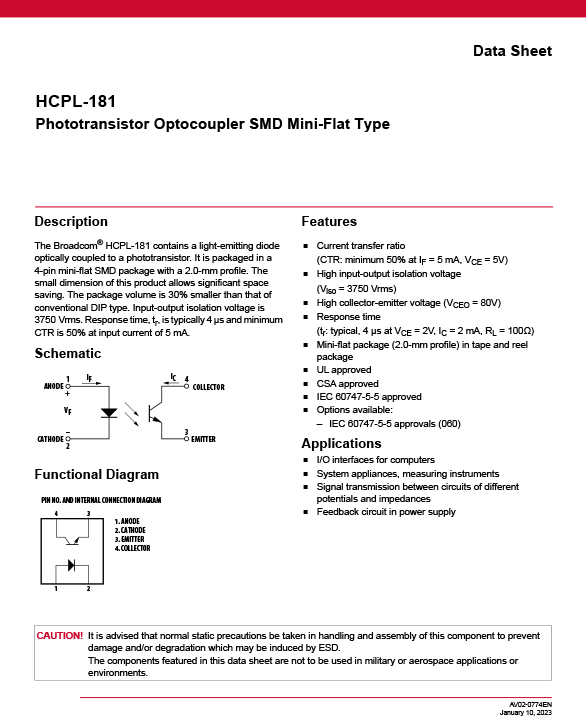

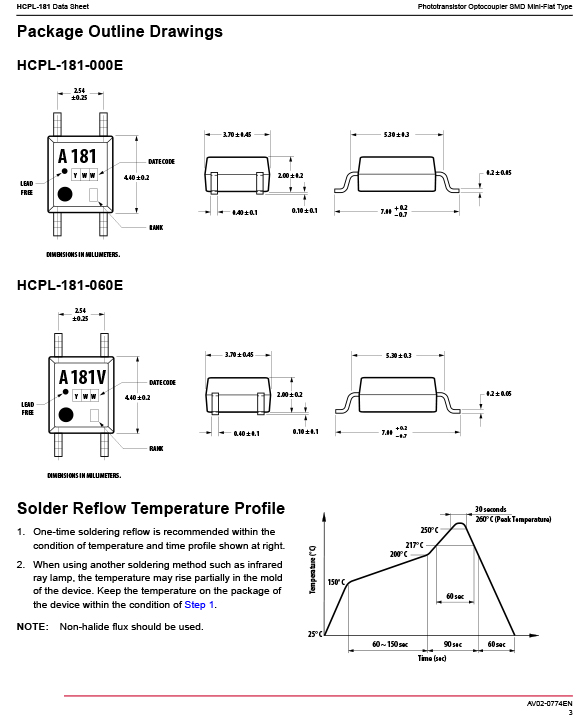

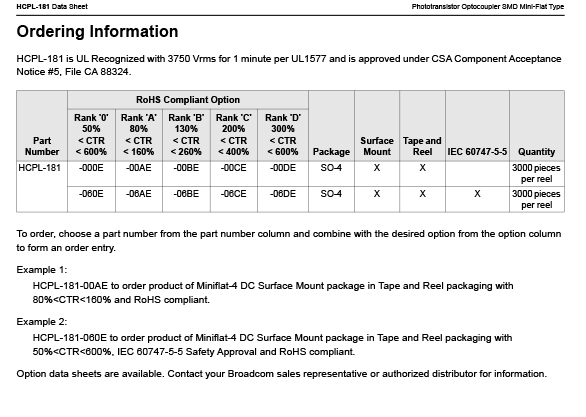

Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| HCPL-181-00DE Description The HCPL-181 contains a light emitting diode optically coupled to a phototransistor. It is packaged in a 4-pin mini-flat SMD package with a 2.0 mm profile. The small dimension of this product allows significant space saving. The package volume is 30% smaller than that of conventional DIP type. Input-output isolation voltage is 3750 Vrms. Response time, tr, is typically 4 µs and minimum CTR is 50% at input current of 5 mA. HCPL-181-00DE Features • Current Transfer Ratio (CTR: min. 50% at IF= 5 mA,VCE= 5 V) • High input-output isolation voltage (Viso= 3750 Vrms) • High collector-emitter voltage (VCEO = 80 V) • Response time (tr: typ., 4 µs at VCE= 2 V, IC= 2 mA, RL= 100 Ω) • Mini-flat package (2.0 mm profile) in tape and reel package • UL approved • CSA approved • IEC/EN/DIN EN 60747-5-2 approved • Options available: – IEC/EN/DIN EN 60747-5-2 approvals (060) HCPL-181-00DE Applications • I/O interfaces for computers • System appliances, measuring in struments • Signal transmission between circuits of different potentials andimpedances • Feedback circuit in power supply |
Product Description
| Type# | Description |
| ANSC PART# | ANSC- HCPL-181-00DE |
| Ihs Manufacturer | / |
| Samacsys Manufacturer | / |
| Additional Feature | UL RECOGNIZED |
| Coll-Emtr Bkdn Voltage-Min | 80 V |
| Configuration | SINGLE |
| Current Transfer Ratio-Min | 50% |
| Current Transfer Ratio-Nom | 300% |
| Dark Current-Max | 100 nA |
| Forward Current-Max | 0.05 A |
| Forward Voltage-Max | 1.4 V |
| Isolation Voltage-Max | 3750 V |
| Mounting Feature | SURFACE MOUNT |
| Number of Elements | 1 |
| On-State Current-Max | 0.05 A |
| Operating Temperature-Max | 100 °C |
| Operating Temperature-Min | -55 °C |
| Optoelectronic Device Type | TRANSISTOR OUTPUT OPTOCOUPLER |
| Packing Method | TR |
| Power Dissipation-Max | 0.15 W |
| Response Time-Max | 0.000018 s |
| Surface Mount | YES |
| Terminal Finish | Matte Tin (Sn) |
