Hot sale Original CLT-104-02-L-D-BE-A-K-TR Connector CONN RCPT 8POS 0.079 GOLD SMD 8 Position Receptacle
Manufacturer
Manufacturer Product Number
CLT-104-02-L-D-BE-A-K-TR
Description
Original CLT-104-02-L-D-BE-A-K-TR Connector CONN RCPT 8POS 0.079 GOLD SMD 8 Position Receptacle, Bottom Entry Connector 0.079" (2.00mm) Surface Mount Gold
Package Condition
Tape & Reel (TR) Cut Tape (CT)
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Overview
A Receptacle, Bottom Entry package is included with it.Its mounting type is Surface Mount.Packaging is performed using a Tape & Reel (TR) case.It is part of the CLT Series of products.Additionally, there are other features, such as BOTTOM ENTRY, E.L.P., LOW PROFILE, TIGER CLAW CONTACT.There is no operating temperature for the device.
Product Features
CLT series
Product Applications
CLT-104-02-L-D-BE-A-K-TR Rectangular Connectors applications.
· Embedded systems
· Datacom
· Communication
· Medical technology
· Military Technology
· Measuring & Control Technology
· Instrumentation
· Automotive Electronics
· Telecommunications
· Data Technology
Product Description
|
Type |
Description |
|---|---|
|
ANSC PART# |
ANSC - CLT-104-02-L-D-BE-A-K-TR |
|
Category |
Connectors, Interconnects Rectangular Connectors Headers, Receptacles, Female Sockets |
|
Mfr |
/ |
|
Series |
CLT |
|
Packaging |
Tape & Reel (TR) Cut Tape (CT) |
|
Part Status |
Active |
|
Connector Type |
Receptacle, Bottom Entry |
|
Contact Type |
Female Socket |
|
Style |
Board to Board |
|
Number of Positions |
8 |
|
Number of Positions Loaded |
All |
|
Pitch - Mating |
0.079" (2.00mm) |
|
Number of Rows |
2 |
|
Row Spacing - Mating |
0.079" (2.00mm) |
|
Mounting Type |
Surface Mount |
|
Termination |
Solder |
|
Fastening Type |
Push-Pull |
|
Contact Finish - Mating |
Gold |
|
Contact Finish Thickness - Mating |
10.0µin (0.25µm) |
|
Insulation Color |
Black |
|
Insulation Height |
0.083" (2.10mm) |
|
Contact Length - Post |
- |
|
Operating Temperature |
-55°C ~ 125°C |
|
Material Flammability Rating |
UL94 V-0 |
|
Contact Finish - Post |
Tin |
|
Mated Stacking Heights |
- |
|
Ingress Protection |
- |
|
Features |
Board Guide, Pick and Place |
|
Current Rating (Amps) |
4.1A per Contact |
|
Voltage Rating |
- |
|
Applications |
- |
|
Insulation Material |
Liquid Crystal Polymer (LCP) |
|
Contact Shape |
Square |
|
Contact Material |
Phosphor Bronze |
|
Contact Finish Thickness - Post |
- |
|
Base Product Number |
CLT-104 |

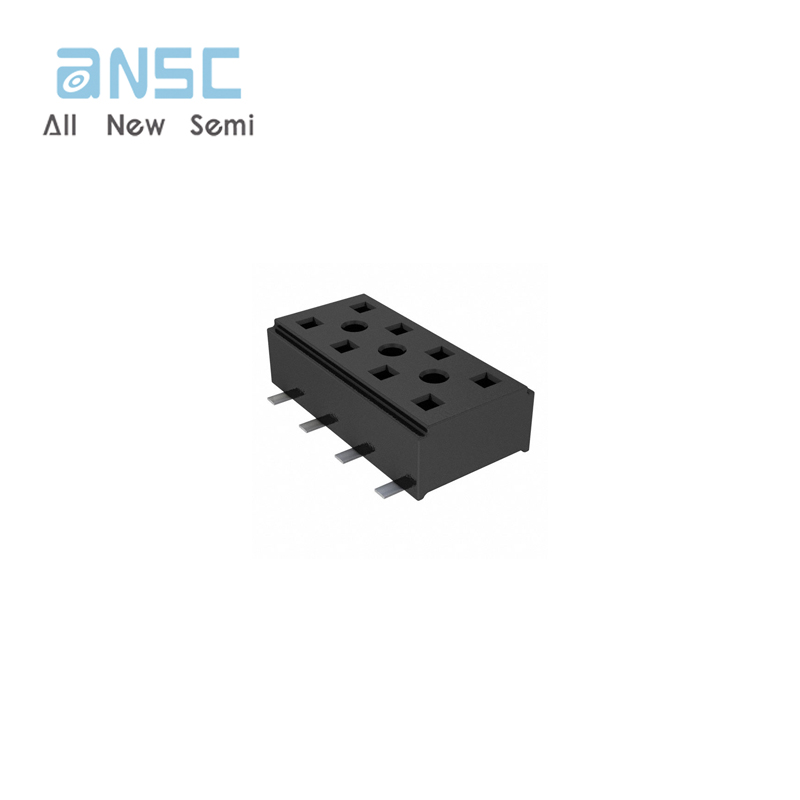

Actual image of the product

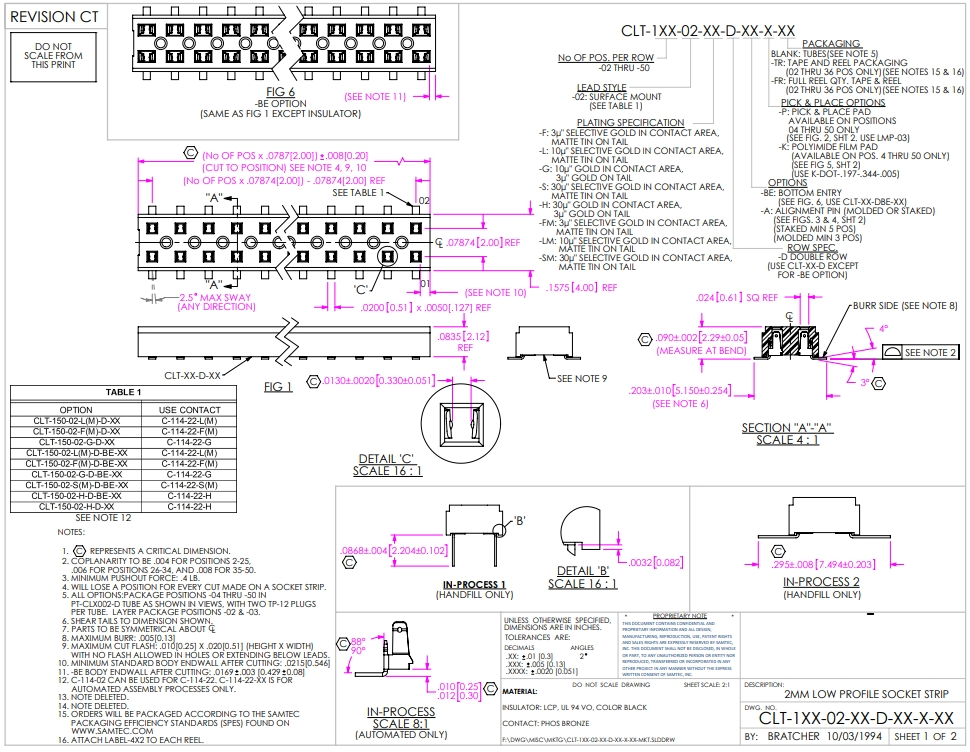

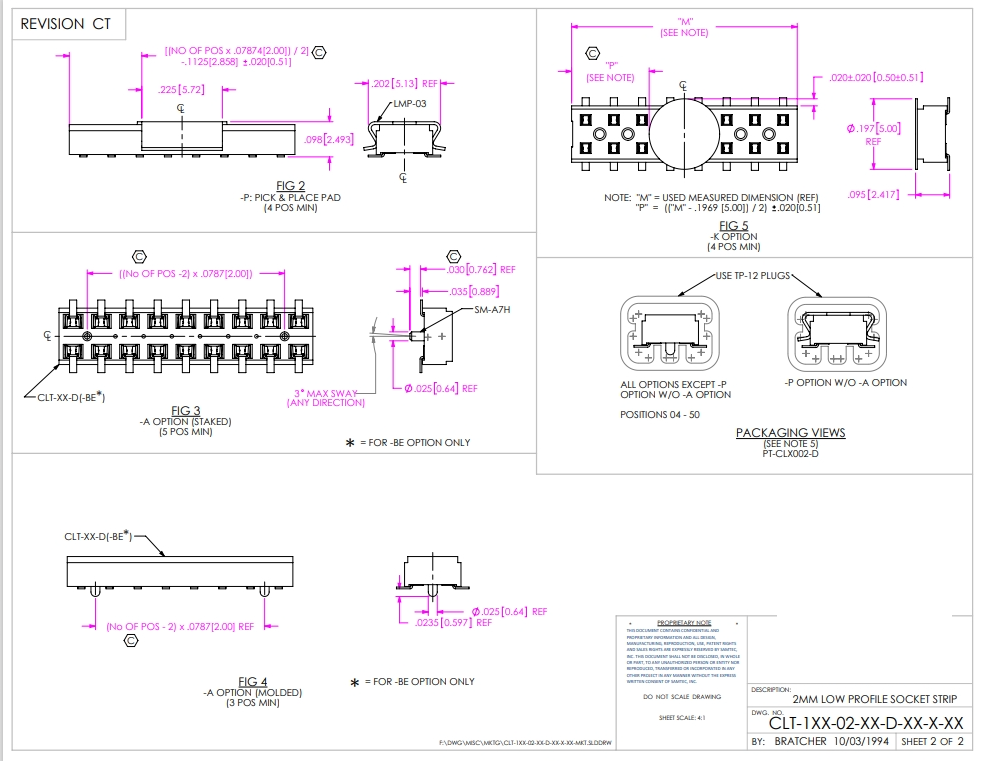

Product datasheet
For more information, please download
