Hot sale Original TLP2358(E) Logic Output Optoisolator Push-Pull, Totem Pole 3750Vrms 1 Channel 20kV/µs CMTI 6-SO, 5 Lead
Manufacturer Product Number
TLP2358(E)
Description
TLP2358(E) Optoisolators OPTOISO 3.75KV PUSH PULL 6-SO
Package Condition
Tube
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| Product Description: TLP2358(E) Optoisolator Description The TLP2358(E) is a high-performance optoisolator and Storage, designed to provide reliable and efficient isolation between digital circuits. This device is ideal for applications requiring robust electrical insulation and fast switching times. With its compact 6-SOIC package and surface mount capabilities, the TLP2358(E) offers flexibility in PCB design. Features High Common Mode Transient Immunity: The TLP2358(E) boasts an impressive common mode transient immunity of 20kV/μs, ensuring robust performance against electrical noise. Fast Switching Times: The device features propagation delays of 250ns for both rising and falling edges, along with rise and fall times of 15ns and 12ns respectively, making it suitable for high-speed applications. Wide Operating Temperature Range: The operating temperature range of -40°C to 125°C allows the TLP2358(E) to function reliably in various environmental conditions. High Voltage Isolation: With a voltage isolation rating of 3750Vrms, this optoisolator provides excellent electrical insulation between input and output circuits. Low Forward Voltage Drop: The typical forward voltage drop (Vf) is 1.55V, minimizing power consumption and heat generation. Dual Mounting Options: Available in both through-hole and surface mount configurations, the TLP2358(E) offers flexibility in PCB design. Applications Primary Applications: Industrial Control Systems: The TLP2358(E) is well-suited for industrial control systems where high-speed switching and robust isolation are crucial. Medical Devices: Its high common mode transient immunity makes it suitable for medical devices that require reliable operation in noisy environments. Automotive Electronics: The device's wide operating temperature range and fast switching times make it an excellent choice for automotive electronics applications. Secondary Applications: Communication Systems: The TLP2358(E) can be used in communication systems requiring fast data transmission and reliable signal isolation. Consumer Electronics: Its compact size and low power consumption make it suitable for various consumer electronics applications such as audio equipment or home appliances. |
Product Description
| Type# | Description |
| ANSC PART# | ANSC - TLP2358(E) |
| Category | Isolators |
| Optocouplers, Optoisolators | |
| Logic Output Optoisolators | |
| Manufacturer | / |
| Series | - |
| Packaging | Tube |
| Part Status | Active |
| Number of Channels | 1 |
| Inputs - Side 1/Side 2 | 1/0 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 20kV/µs |
| Input Type | DC |
| Output Type | Push-Pull, Totem Pole |
| Current - Output / Channel | 25 mA |
| Data Rate | - |
| Propagation Delay tpLH / tpHL (Max) | 250ns, 250ns |
| Rise / Fall Time (Typ) | 15ns, 12ns |
| Voltage - Forward (Vf) (Typ) | 1.55V |
| Current - DC Forward (If) (Max) | 20mA |
| Voltage - Supply | 3V ~ 20V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.179", 4.55mm Width), 5 Leads |
| Supplier Device Package | 6-SO, 5 Lead |
| Base Product Number | TLP2358 |

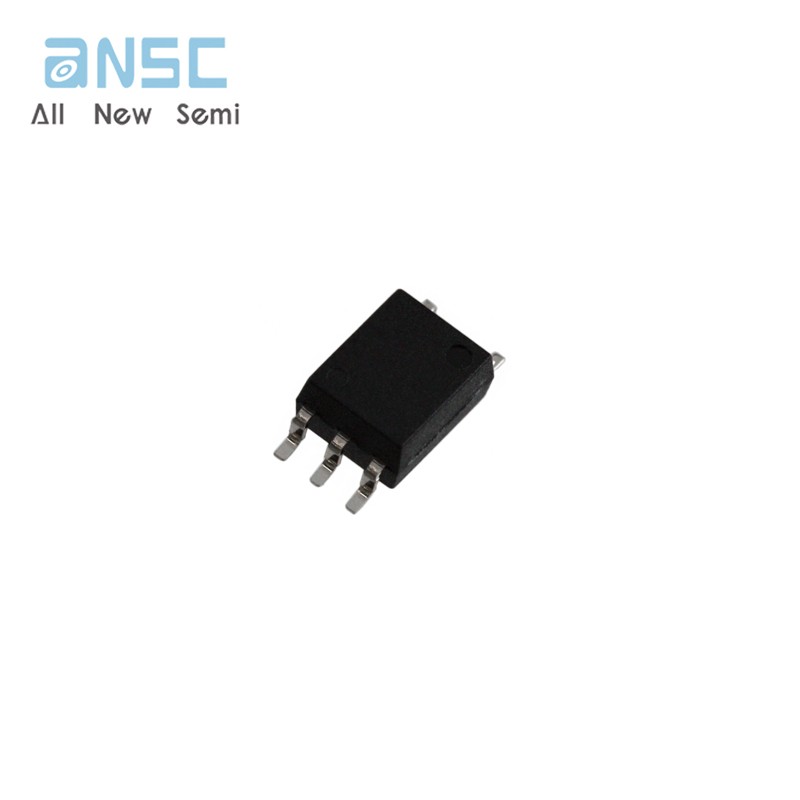

Actual image of the product

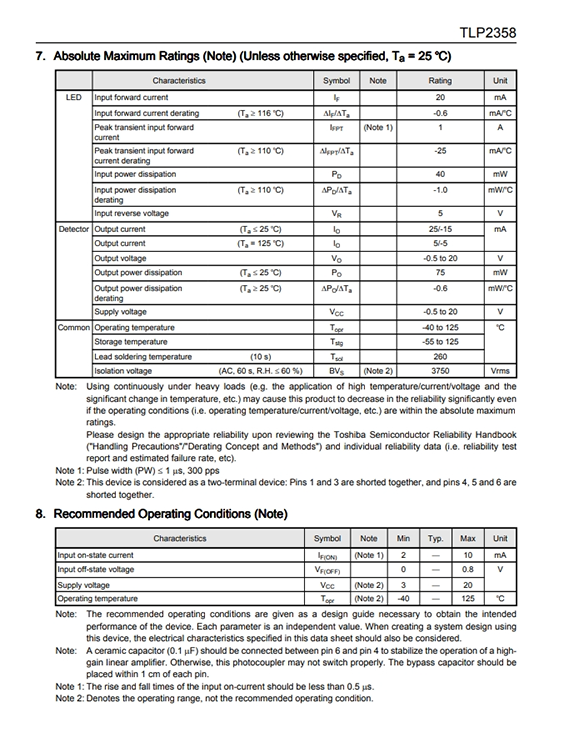

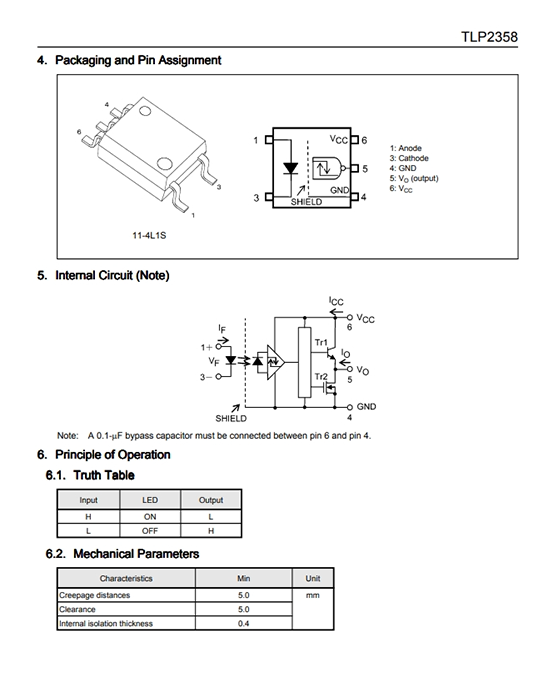

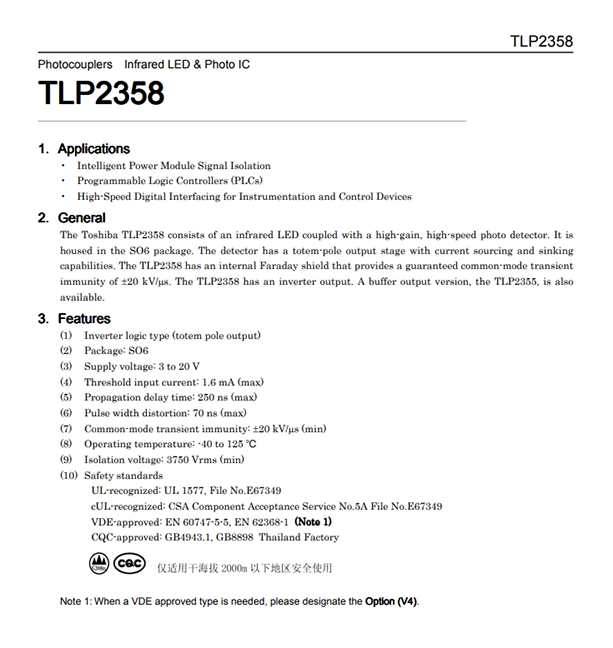

Product datasheet
For more information, please download
