New&Original Encoder OVW2-036-2MHT-050-00E
Manufacturer
Manufacturer Product Number
OVW2-036-2MHT-050-00E
Description
Encoder Internal Secret Control Encoder OVW2-036-2MHT-050-00E
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| Product Overview: The OVW2 series is a small, economical rotary encoder. The performance is stable and the cost performance is extremely high. Product Specifications: Pulse Number: 360P/R Supply Voltage: 10.8-26.4V DC Available Supply Voltage: 12V DC, 24V DC Output Method: Push-Pull Output (Push-Pull Output) Output Signal: A, B, Z Origin Output Logic: Positive Logic (High Level Effective) *High Response Frequency: 200KHz Electrical *High Rotation Speed: ( *High Response Frequency/Resolution)*60 Duty Cycle: 50±25% Phase Difference: 1/4T Origin Signal Width: 1T Rise/Fall Time: 1μs Current Consumption (No Load): ≤90mA Output Voltage "H": ≥ (Supply Voltage) -3V Output Voltage "L": ≤3V Output Waveform: Square Wave Signal form: A and B two phases + origin output Allowable* High rotation speed: 6000r/min Starting torque: 6.8*10^(-3)~2.9*10^(-2)N·m Shaft moment of inertia: 8 * 10^(-7)kg*m^2 Allowable load of axial shaft: 19.6N Allowable load of radial shaft: 29.4N Weight: about 100g Humidity of the working environment: 35 ~85%RH (no condensing) Shock: 490m/s^2 11ms 3 times in each of the three axes Vibration: 10~50Hz 1.5mm 2h Protection level: Dustproof type: IP50 Ambient temperature: -10°C~+70°C Storage ambient temperature: -30°C~+80°C Shaft type: solid shaft Shaft size: φ6mm Outer diameter: φ38mm Pitch Diameter (PCD): φ28mm Screw Parameter: 3*M3 Screw Length: Depth 5 Product Application: Widely used in printing machinery, shoe machines, ceramic machinery, glass machinery, inkjet printers, injection molding machinery, elevators, CNC machine tools, computer embroidery machines, embroidery machines, textile machinery, packaging machinery, carton machinery, oil injection machines, automation equipment, cutting machinery, knitting machinery, large machinery and other automation control fields of large, medium and small enterprises at home and abroad. |

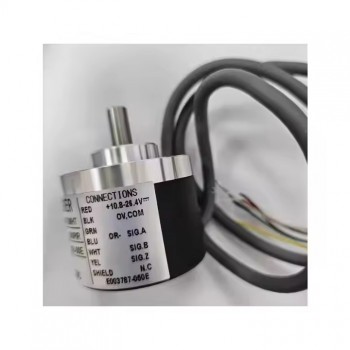

Actual image of the product
Product datasheet
