Micro flow sensor DP200 D6F-PH5050AD Differential Pressure Sensor
Manufacturer
Manufacturer Product Number
Micro flow sensor/ DP200 /D6F-PH5050AD3
Description
Micro flow sensor DP200 D6F-PH5050AD Differential Pressure Sensor
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
D6F-PH5050AD3
| Description | SENSOR AIRFLOW +/- 500PA PCB TER |
| Sensing range | ±500 Pa |
| Type of flow sensor | AIRFLOW |
| Voltage input | 2.3V ~ 3.6V |
| Port size | Male pattern,0.193"(4.9mm)double-barrelled |
| Switch function / rating | - |
| Material body | PPS |
| working temperature | -20°C ~ 80°C(TA) |
DP200
| type | Pressure sensor |
| Monitoring scope | +/-500 Pa |
| Accuracy | +/-3% mV |
| Output | I2C |
| Sleep mode | 0.001mA |
| Working voltage | 2.7-5.5V |

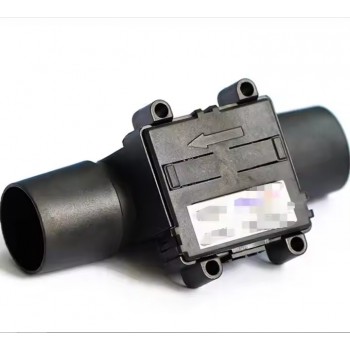

Micro flow sensor
| 20,35,50,100,150, | ||||
| Range | 200 SLM | |||
| Minimum | Typical value | Maximum | Company | |
| Full scale output | 4.9 | 5 | 5.1 | V |
| Zero flow output | 0.96 | 1 | 1.04 | V |
| Output impedance | - | 200 | - | Ω |
| Working voltage | 7 | 10 | 14 | V |
| Working current | 15 | 25 | 30 | mA |
| Accuracy | - | ±1.5 | ±2.5 | %F.S |
| Repeatability | - | ±0.3 | ±0.5 | %F.S |
| Annual drift | - | ±0.1 | ±0.5 | %F.S |
| Working pressure | - | - | 100 | kPa |
| Reaction time | 55 | 50 | 55 | ms |
| Working temperature | -25 | 65 | ℃ | |
| Storage temperature | -40 | 90 | ℃ | |
| Pin | Function |
| 1 (black) | GND |
| 2 (red) | VCC |
| 3 (yellow or blue) |
OUT
|
