Joystick potentiometer JH-D202X-R2/R4 5K 10K monitor controller switch

Manufacturer
Original
Manufacturer Product Number
JH-D202X
Description

Joystick potentiometer JH-D202X-R2/R4 5K 10K monitor controller switch

Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser. All intellectual property rights of products on our website belong to the original factory! (In addition to ANSC's own customized products)

Product Description

Rocker potentiometer H-D202X-2/4 2D, left and right up and down self-reset, sealed, PTZ controller, special for film and television photography, from stock. Spot resistance is 5k,10k.
It is widely used in: mobile camera and CCTV control system, test and measurement equipment, medical imaging system, automatic machine control, video editing and production equipment, industrial and scientific instruments, etc.

Type Description
Part# JH-D202X
Potentiometer resistance value 5KΩ, 10KΩ optional
Potentiometer resistance tolerance value ±20%
X and Y axis electrical rotation angle ±25°
Z axis electrical rotation angle None
Potentiometer independent linear tolerance ±1%
Resolution Infinity
Impedance temperature coefficient ±400ppm/℃
Output smoothing Maximum 0.5%
Operating voltage 0.1W (rated power at 40℃)
Operating current 0.1W (rated power at 40℃)
Insulation strength 500VAC@50Hz,60s
Insulation resistance 50MΩ@500VDC
Joystick leads AWG28 Teflon silver-plated wire outlet 100mm

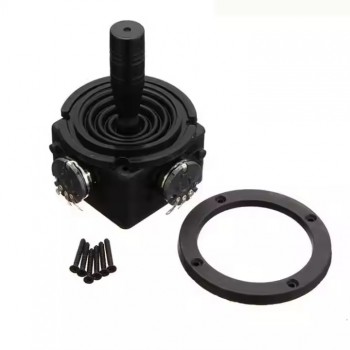

Actual image of the product



​
