pressure sensor transmitter 5v g1/4 0-1.2 mp pressure sensor high pressure for water fuel gas HK1100C-EN

Product Description

Technical Parameters

Working Voltage: 5.0 VDC
Output Voltage: 0.5-4.5 VDC
Sensor material: Carbon steel alloy
Working Current: <=10 mA
Working Pressure Range: 0-1.2 MPa
The proof pressure: 1.6 MPa
Destroy Pressure: 2.6 MPa
Working TEMP. Range: -20~105°C Celsius Degree

Storage Temperature Range: 0-100 Celsius Degree
Measuring Error: +_ 1.5 %FSO
Temperature Range Error: +_0.03 %FSO
Response Time: <=5.0 ms
Cycle Life: 1000000 cycles

1.Suitable for wall hanging furnace, gas furnace, gas storage, etc all kinds of hydraulic, pneumatic pressure measurement
2.Suitable for civil use product batch
3.Static accuracy: plus or minus 1.0% FS
4.Pressure range 0-1.2 MPa (can be customized according to customer requirements)
5.Wide range of temperature compensation

6.Medium for non-corrosive gas, water, oil, etc

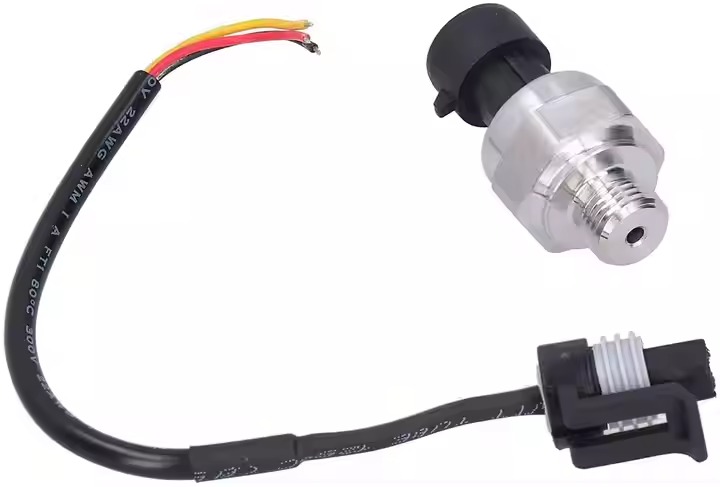

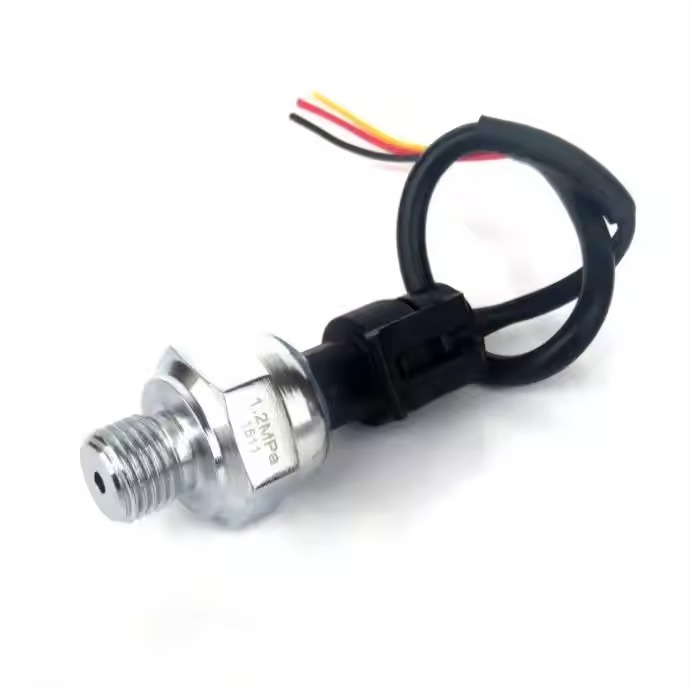

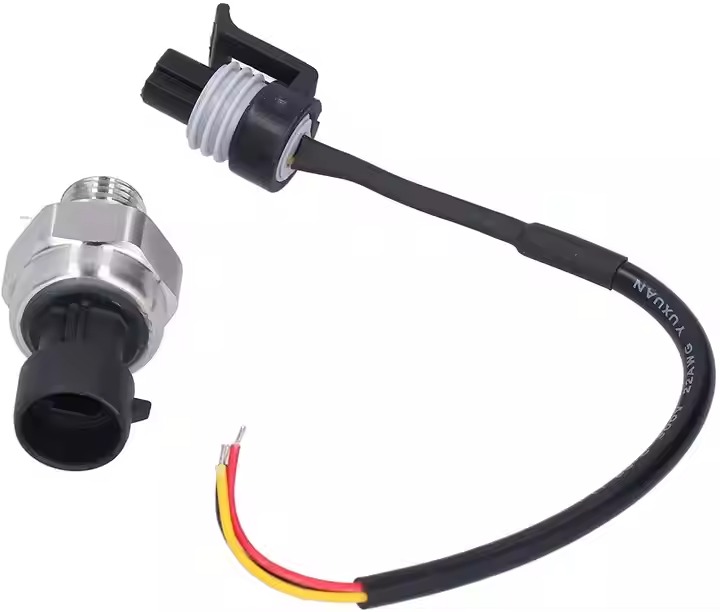

Actual image of the product
