Hot sale original G5NB-1A4-12VDC Electromechanical Relay SPST 21.6VDC (Coil) 3A (Contact) 30VDC (Contact) Random AC/DC Output
Manufacturer Product Number
G5NB-1A4-12VDC
Description
G5NB-1A4-12VDC Electromechanical Relay SPST 21.6VDC (Coil) 3A (Contact) 30VDC (Contact) Random AC/DC Output
Package Condition
Original
Datasheet
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| Type# | Description |
| ANSC PART# | ANSC-G5NB-1A4-12VDC |
| Manufacturer | / |
| Body Breadth | 7.2 mm |
| Body Height | 15.3 mm |
| Body Length or Diameter | 20.5 mm |
| Coil Operate Voltage(DC) | 9 V |
| Coil Release Voltage(DC) | 1.2 V |
| Coil Resistance | 720 Ω |
| Coil Voltage(DC)-Max | 21.6 V |
| Coil Voltage-Nom | 12 V |
| Coil/Input Supply Type | DC |
| Contact (AC) Max Rating R Load | 3A@250VAC |
| Contact Current(AC)-Max | 3 A |
| Contact Current(DC)-Max | 3 A |
| Contact (DC) Max Rating R Load | 3A@30VDC |
| Contact Resistance | 100 mΩ |
| Contact Voltage(AC)-Max | 250 V |
| Contact Voltage(DC)-Max | 30 V |
| Contact/Output Supply Type | AC/DC |
| Electrical Life | 5000000 Cycle(s) |
| Input Switching Control Type | Random |
| Insulation Resistance | 1000000000 Ω |
| Number of Terminals | 4 |
| Operate Time | 10 ms |
| Operating Temperature-Max | 70 °C |
| Operating Temperature-Min | -40 °C |
| Physical Dimension | 20.5mm x 7.2mm x 15.3mm |
| Reference Standard | UL; CSA; VDE |
| Relay Form | 1 FORM A |
| Relay Function | SPST |
| Release Time | 10 ms |
| Terminal Length | 0.002999745999491999 inch |
| Termination Type | SOLDER |

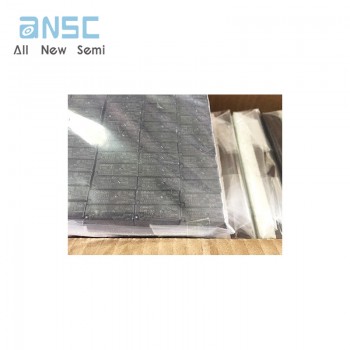

Actual image of the product
