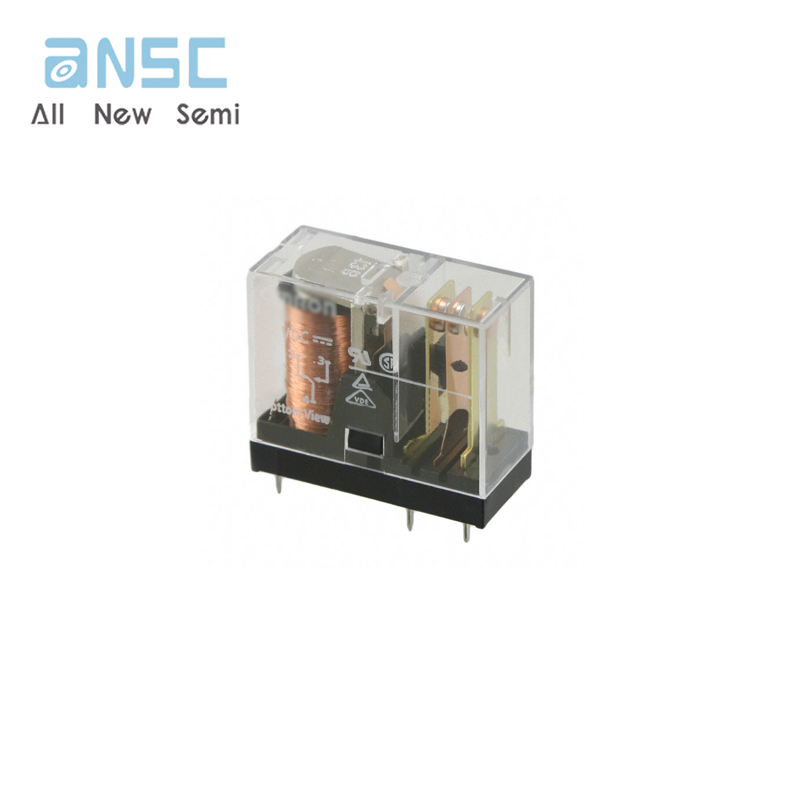

Original G2R-1-E DC24 by OMI RELAY GEN PURPOSE SPDT 16A 24V
Manufacturer Product Number
G2R-1-E DC24 by OMI
Description
G2R-1-E DC24 by OMI RELAY GEN PURPOSE SPDT 16A 24V
Package Condition
Tray
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Description
| Properties | Parameter values |
| PART# | G2R-1-E DC24 by OMI |
| Product catalogue | Power relay |
| Coil voltage | 24V |
| Contact form | One set of conversions: 1C (single pole double throw - conversion) |
| Number of pins | 8 |
| Contact capacity (resistive load) | 16A@250VAC；16A@30VDC |
| Maximum switching voltage | 380V@AC；125V@DC |
| Rated coil power | 530mW |
| Contact material | Silver alloy (cadmium-free) |
| Maximum switching current | 16A |
| Coil type | Non-polar - single coil |
| Coil resistance | 1.1kΩ |
| Contact resistance | 30mΩ |
| Action time | 15ms |
| Release time | 5ms |
| Operating temperature | -40℃~+70℃ |
Actual image of the product
Other Products In The same category:
G2R-1-E DC24 by OMI RELAY GEN PURPOSE SPDT 16A 24V
600In stock:
Can ship immediately
