One-Stop Supply BOM distribution service electronic components FTR-B3GA003Z-B10 MINIATURE RELAY 2-CONTA CT 1A
Manufacturer Product Number
FTR-B3GA003Z-B10
Description
FTR-B3GA003Z-B10 Power/Signal Relay
Package Condition
Original
We are just Spot traders, Stockists, Sraders, PCBA&BOM service providers,Purchaser.
All intellectual property rights of products on our website belong to the original factory!
(In addition to ANSC's own customized products)
Product Details
| FEATURES • Slim(15.0mm(h) x 5.0 mm(w) x 28.0mm (l) • Mounting space: 140mm2, weight: 5.0g • High insulation in small package (between coil and contacts) - Insulation Distance: 8mm min.) - Dielectric strength: 4,000 VAC - Surge strength: 6,000V • Plastic materials - UL94 flame class V-0 - CTI>250 (UL CTI level class 2) • UL, CSA, VDE, SEMKO under approval - UL: conforms to UL508, 1604 - CSA: conforms to CSA22.2 No.14 - SEMKO: conforms to EN61058-1, 61095 - VDE: conforms to VDE 0435, 0631, 0700 • Contains no lead and features cadmium-free contacts • Socket type available • RoHS Compliant since production |
Product Description
| Type | Description |
| Part# | FTR-B3GA003Z-B10 |
| Ihs Manufacturer | Original |
| Body Breadth | 7.5 mm |
| Body Height | 5.75 mm |
| Body Length or Diameter | 10.9 mm |
| Coil Current(DC)-Max | 0.047 A |
| Coil Operate Voltage(DC) | 2.25 V |
| Coil Power | 140 mW |
| Coil Release Voltage(DC) | 0.3 V |
| Coil Resistance | 64.3 Ω |
| Coil Voltage(DC)-Max | 3 V |
| Coil Voltage-Nom | 3 V |
| Coil/Input Supply Type | DC |
| Contact (AC) Max Power Rating R Load | 62.5VA@250VAC |
| Contact (AC) Max Rating R Load | 2A@250VAC |
| Contact Current(AC)-Max | 2 A |
| Contact Current(DC)-Max | 2 A |
| Contact (DC) Max Power Rating R Load | 30W@220VDC |
| Contact (DC) Max Rating R Load | 2A@220VDC |
| Contact Resistance | 75 mΩ |
| Contact Voltage(AC)-Max | 250 V |
| Contact Voltage(DC)-Max | 220 V |
| Contact/Output Supply Type | AC/DC |
| Electrical Life | 100000 Cycle(s) |
| End Contact Material | SILVER NICKEL |
| Input Switching Control Type | Random |
| Insulation Resistance | 1000000000 Ω |
| Mounting Feature | SURFACE MOUNT-STRAIGHT |
| Number of Terminals | 8 |
| Operate Time | 3 ms |
| Operating Temperature-Max | 85 °C |
| Operating Temperature-Min | -40 °C |
| Packing Method | TR, EMBOSSED, 13 INCH |
| Physical Dimension | 10.9mm X 7.5mm X 5.75mm |
| Reference Standard | CSA; UL |
| Relay Action | MOMENTARY |
| Relay Form | 2 FORM C |
| Relay Function | DPDT |
| Relay Type | POWER/SIGNAL RELAY |
| Release Time | 3 ms |
| Sealing | RT3 |
| Surface Mount | NO |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) |
| Termination Type | SOLDER |

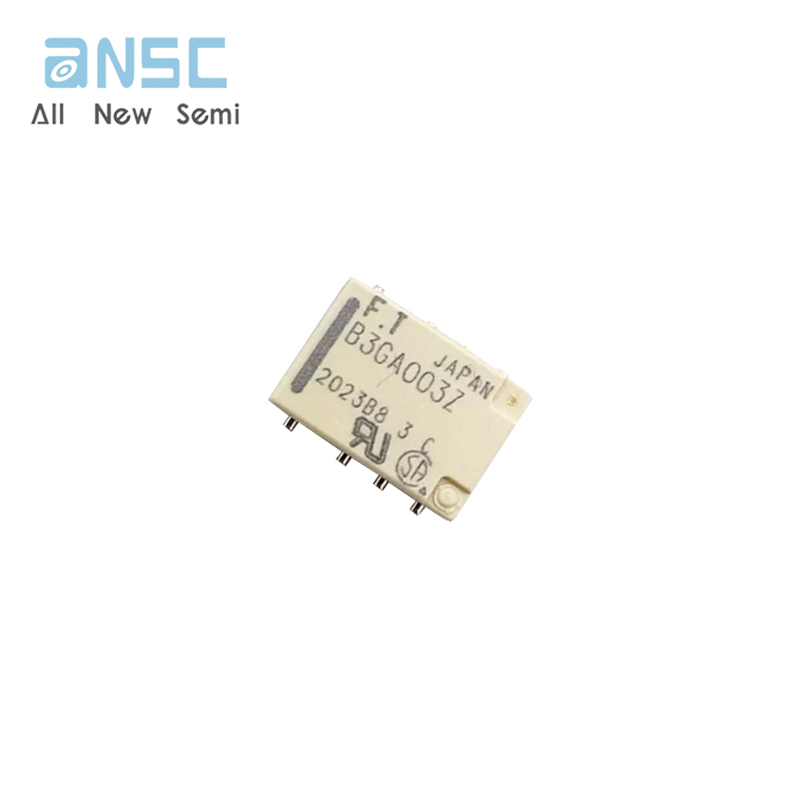

Actual image of the product
